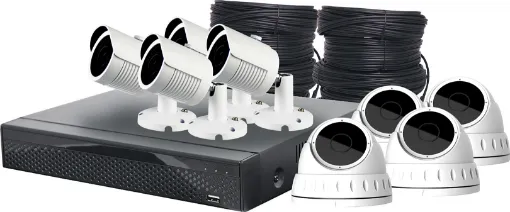

5MP Surveillance CCTV DVR +4 Dome/ +4 Bullet Camera Package

Specifications

Dome Camera Specifications

Camera

• Video Output Mode: AHD: 5M@20fps/12.5fps, 4M@30fps/15fps; TVI: 5M@20fps/12.5fps, 4M@30fps; CVI: 4M@30fps
• Image Sensor: 1/2.7" OmniVision 5MP CMOS Sensor
• DSP: NVP2475H
• Image Resolution: 5MP
• Effective Pixels: 5M:2592*1944 4M:2560*1440
• TV System: PAL/NTSC
• Electronic Shutter: 1/25s~1/50,000s , 1/30s~1/60,000s
• S/N Ratio: =50dB
• Scanning System: Progressive Scan

Lens

• Focus Length: 3.6mm (2.8mm/6mm Optional)
• Focus Control: Fixed
• Lens Type: Fixed
• Pixels: 5M Pixels
• Auto Iris Support: NO

Night Vision

• Infrared LED: 14µ x 18PCS
• Infrared Distance: 20M
• IR Status: Under 10 Lux by CDS
• IR Power On: CDS Auto Control

Camera Features

• Day/Night: YES
• OSD Menu Language: YES
• White Balance: AUTO / MANUAL
• Gain Control: AUTO
• Noise Reduction: 2D/3D NR
• Picture Adjustment: YES
• WDR: YES
• OSD Support: YES
• UTC: YES

General

• Housing: Metal, IP66
• Bracket: NO
• Dual Voltage: NO
• IR Cut Filter: YES
• Heater: NO
• Operation Temperature: -10° ~ +50° RH95% Max
• Storage Temperature: -20° ~ +60° RH95% Max
• Power Source: DC12V±10%, 500mA
• Dimensions: ¢94.5 x 76(H) mm
• Weight: 450g

Bullet Camera Specifications

Camera

• Video Output Mode: AHD: 5M@20fps/12.5fps, 4M@30fps/15fps; TVI: 5M@20fps/12.5fps, 4M@30fps; CVI: 4M@30fps
• Image Sensor: 1/2.7" OmniVision 5MP CMOS Sensor
• DSP: NVP2475H
• Image Resolution: 5MP
• Effective Pixels: 5M:2592*1944 4M:2560*1440
• TV System: PAL/NTSC
• Electronic Shutter: 1/25s~1/50,000s , 1/30s~1/60,000s
• S/N Ratio: =50dB
• Scanning System: Progressive Scan

Lens

• Focus Length: 3.6mm
• Focus Control: Fixed
• Lens Type: Fixed
• Pixels: 5M Pixels
• Auto Iris Support: NO

Night Vision

• Infrared LED: 42µ x 2PCS
• Infrared Distance: 30M
• IR Status: Under 10 Lux by CDS
• IR Power On: CDS Auto Control

Camera Features

• Day/Night: YES
• OSD Menu Language: YES
• White Balance: AUTO / MANUAL
• Gain Control: AUTO
• Noise Reduction: 2D/3D NR
• Picture Adjustment: YES
• WDR: YES
• OSD Support: YES
• UTC: YES

General

• Housing: Metal, IP66
• Bracket: YES
• Dual Voltage: NO
• IR Cut Filter: YES
• Heater: NO
• Operation Temperature: -10° ~ +50° RH95% Max
• Storage Temperature: -20° ~ +60° RH95% Max
• Power Source: DC12V±10%, 500mA
• Dimensions: 157(W) x 70(H) x 66(D)mm
• Weight: 650g

DVR Specifications

System

• Main Processor: HI3531A
• Operating System: Embedded LINUX

Video

• Input: Analog: 8*(TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
• Analog+Network: 6*Analog+10*network(Max 8MP), 4*Analog+12*network(Max 8MP), 2*Analog+14*network(Max 8MP) Network: 32*network(Max 8MP)(Total incoming bandwidth =200M)
• Input: 8CH BNC
• Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
• Output: 1 HD Port,1 VGA, 1CVBS

Audio

• Input: 4Channel, RCA
• Two-way Audio: NO
• Output: 1 Channel, RCA

Alarm

• Sensor Input: NO
• Output: NO
• Motion Detection: 8 Channel(max 32 Channel in pure network mode)
• Trigger Events: Recording, Alarm, Email, Screen tips, Buzzer
• Email Alarm: Send Image to The Designated E-mail

PTZ

• Interface: RS485
• Protocol: Pelco-D, Pelco-P
• Baud Rate: 110~921600
• Address: 0~255

Display

• VGA: Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
• HD Output: Resolution:2560*1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
• Display Split: 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
• Privacy Masking: 3 Rectangular Zones (Each camera)
• OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

• Video Compression: H.264
• Audio Compression: G711u
• Resolution: 5MP(2592×1944), 5MP_HALF(1296×1944), 4MP(2560×1440), 4MP_HALF(1280×1440), 3MP(2048×1536), 1080P(1920×1080), 720P(1280× 720), 960H(P:960×576/N:960×480)
• Video Quality: worst/worse/ordinary/well/best
• Record Rate:
• Analog:PAL: 5MP(2592×1944 8*12fps), 5MP_HALF(1296×1944 8*20fps), 4MP(2560×1440 8*15fps), 4MP_HALF(1280×1440 8*25fps), 3MP(2048×1536 8*18fps), 1080P(1920x1080 8*25fps), 720P(1280×720 8*25fps), 960H(960×576 8*25fps)
• Pure IP:PAL: 4k@18×25fps, 5MP@20×25fps, 4MP@28x25fps, 3MP@28×25fps, 1080P@32×25fps, 960P@32×25fps, 720P@32×25fps, D1@32×25fps
• Record Mode: Manual/ Timer/ Motion/ Detection

Playback & Backup

• Decode Capability: 4CH 1080P@30fps
• Sync Playback: Pure Analog: 8CH 5M@12fps,8CH 4M@15fps, 8CH 3M@18fps, 8CH 1080p@30fps, 2CH HD+14CH IPC: 2CH 5M@30fps, 2CH 4M@30fps, 3CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps 4CH HD+12CH IPC: 2CH 5M@30fps, 2CH 4M@30fps, 3CH 3M@30fps,4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps 6CH HD+10CH IPC: 2CH 4M@30fps, 3CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
• Pure IPC: 2CH 4K@30fps, 4CH 5M@30fps, 4CH 4M@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
• Remote Playback: 4 Channel / 1 Channel
• Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
• Playback Function: Play, Pause, Stop, Fast play, Rewind
• Smart Phone Playback: 4 Channel
• Backup Mode: USB Device/Network

Network

• Interface: 1 RJ45 10M/100/1000M Adaptive Ethernet Interface
• Network Functions: HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP
• DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
• Web Browser: IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
• CMS Software: Support Windows 7/ Windows 8/Windows 10
• Extra Stream: CIF/D1(1~25fps)
• Smart Phone: iPhone, iPad, Android, Android pad

Hard Disk Driver

• Interface Type: 1 SATA Interface
• Capacity: 2.5"/3.5" SATA, Up to 6TB

General

• Language: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek
• UTC Control: YES
• USB Interface: 2 USB 2.0 Interfaces
• Power consumption: DC 12V =10W (Without Hard Disk)
• Working Environment: -10~55°C/10~90%
• Dimension: (W×D×H)260*215*43(mm)
• Weight: 2.0kg (Without HDD)
