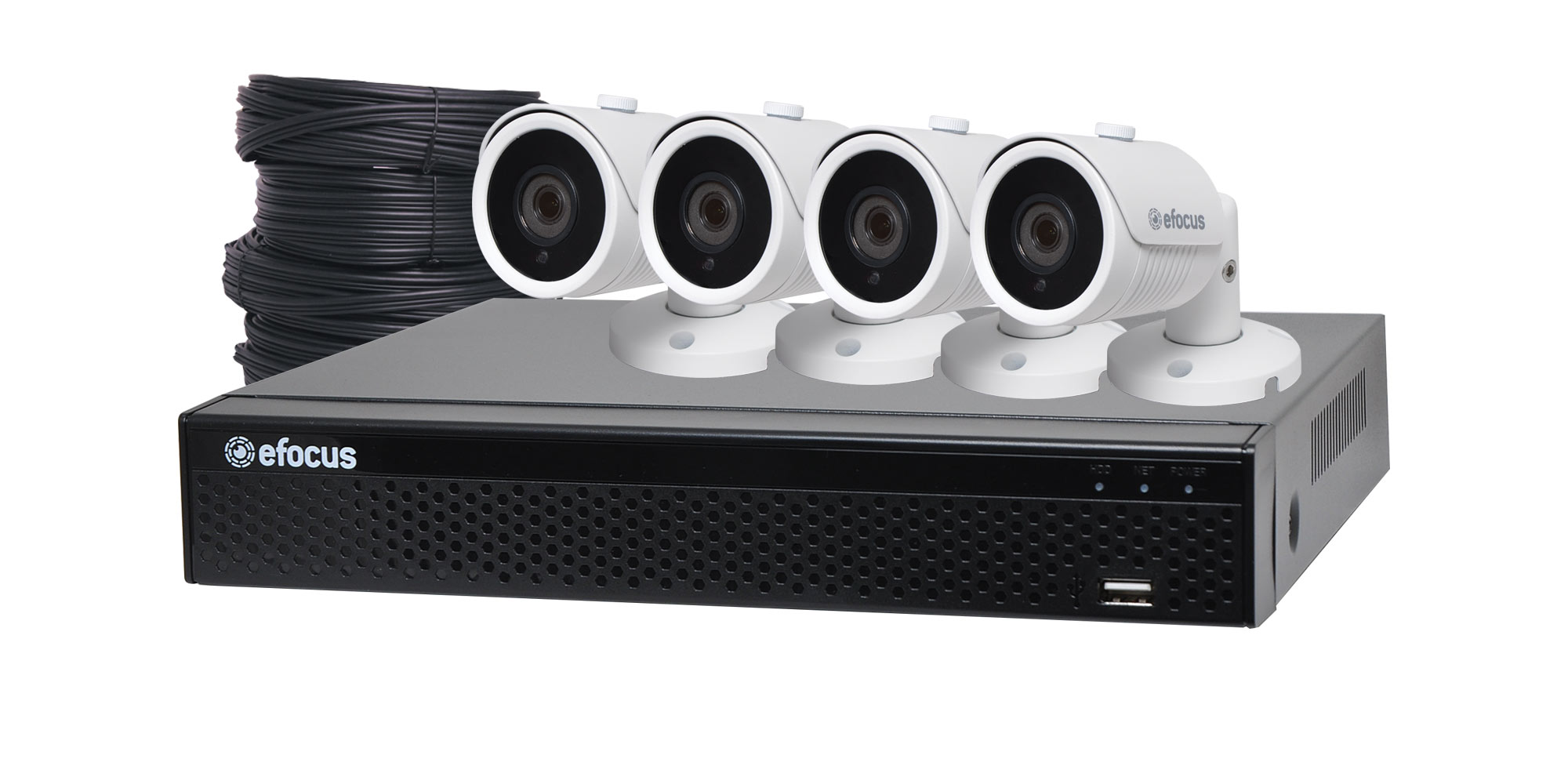

5MP AHD Real Time CCTV Hybrid DVR + 4 Camera Bullet Package

Specifications

Package

• NVR: 1x XVRDA2004HD
• Camera: 4 x LBH30AD500FK
• Cable: 4x 18m BNC+DC Cable, 1x (1 to 5CH power cable splitter)
• Mouse: 1xUSB 2.0 Mouse
• Hard Disk: No
• Adaptor: 1xDC12V/5A
• Weight: 7.9kg/SET

Camera Model

Camera

• Image Sensor: 1/2.5" CMOS sensor
• Image Resolution: 5M:2592*1944 4M:2560*1440 2M:1920*1080
• TV System: PAL/NTSC
• Electronic Shutter: AUTO
• Scanning System: Progressive Scan

Lens

• Focus Length: 3.6mm
• Focus Control: Fixed
• Lens Type: Fixed

Night Vision

• IR Cut Filter: YES
• Infrared LED: 14µ x 20PCS
• Infrared Distance: 25M
• IR Status: AGC Auto Control

Camera Features

• Day/Night: YES
• OSD Menu: YES
• WDR: YES
• UTC: YES
• Noise Reduction: DNR
• White Balance: AUTO / MANUAL
• Gain Control: AUTO

General

• Housing: Metal, IP66
• Bracket: YES
• Operation Temperature: -10? ~ +50? RH95% Max
• Storage Temperature: -20? ~ +60? RH95% Max
• Power Source: DC12V±10%, 700mA
• Dimension: 157(W) x 70(H) x 66(D)mm
• Weight: 650g

DVR Model

System

• Main Processor: HI3520DV400
• Operating System: Embedded LINUX

Video

• Input: Normal Mode: Analog: 4*(TVI/AHD:8M; TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
• Analog+Network: 2*Analog(1080P)+7*network(MAX 5MP)
• Lite Mode: Analog: 4*(AHD/TVI/CVI: 1080P/720P; Analog: 960H)
• Analog+Network: 2*Analog(1080P)+7*network(MAX 5MP)
• Network: 12*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth =48M)
• Input: 4CH BNC
• Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
• Output: 1HD,1 VGA

Audio

• Input: 4 Channel, RCA
• Two-way Audio: NO
• Output: 1 Channel, RCA

Alarm

• Sensor Input: NO
• Output: NO
• Motion Detection: 4 Channel(max 9 Channel in pure network mode)
• Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
• Email Alarm: Send Image to The Designated E-mail

PTZ

• Interface: RS485
• Protocol: Pelco-D, Pelco-P
• Baud Rate: 110~921600
• Address: 0~255

Display

• VGA: Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
• HD Output: Normal Mode: Resolution:2560*1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
• Lite Mode: Resolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Display Split: 9 Channel/4 Channel / 1Channel
• Privacy Masking: 3 Rectangular Zones (Each camera)
• OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

• Video Compression: H.265/H.265+/H.264/H.264+
• Audio Compression: G.711u
• Resolution: 5MP(2592×1944),8MP_LITE(1920×2160),5MP_HALF(1296×1944),4MP(2560×1440),4MP_HALF(1280×1440),3MP(2048×1536),1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480)
• Video Quality: worst/worse/ordinary/well/best
• Record Rate: Normal Mode:
• Analog: PAL:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps), 5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×576 4*25fps)
• NTSC:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps),5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×480 4*25fps)
• Lite Mode:
• Analog: Half 1080P(960x1080 4*25fps),720P(1280×720 4*25fps), 960H(P:960×576 4*25fps/N:960×480 4*30fps)
• Pure IP(H.265):
• PAL: 5MP@8×25fps,4MP@12x25fps,3MP@12×25fps,1080P@12×25fps,960P@12×25fps,720P@12×25fps,D1@12×25fps
• NTSC: 5MP@8×30fps,4MP@12×30fps,3MP@12×30fps,1080P@12×30fps, 960P@12×30fps, 720P@12×30fps, D1@12×30fps
• Record Mode: ManualTimerMotion Detection

Playback & Backup

• Decode Capability: 2CH 1080P@30fps
• Sync Playback: Pure Analog: 4CH 5M@6fps, 4CH 4M@7fps, 4CH 3M@9fps, 4CH 1080p@15fps, 4CH 1080N@25fps
• Mix Mode: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps, 3CH 1080p@15fps
• Pure IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
• Remote Playback: 1Channel
• Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
• Playback Functions: Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen
• Smart Phone Playback: 4 Channel
• Backup Mode: USB Device(with format FAT 32 )/Network

Network

• Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface
• Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
• DDNS, Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN
• Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
• CMS SoftwareSupport Windows 7/ Windows 8/Windows 10
• Extra Stream: CIF(1~25fps)
• Smart Phone: iPhone, iPad, Android ,Android pad

Hard Disk Driver

• Interface Type:1 SATA Interface
• Capacity: 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)

General

• Language: Chinese Simplified, Chinese Traditional, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese
• UTC Control: YES
• USB Interface: 2 USB 2.0 Interfaces
• Power consumption: DC 12V =6W (Without Hard Disk)
• Working Environment: -10~55?/10~90%
• Dimension: (W×D×H)260*215*43(mm)
• Weight: 2kg (Without HDD)
