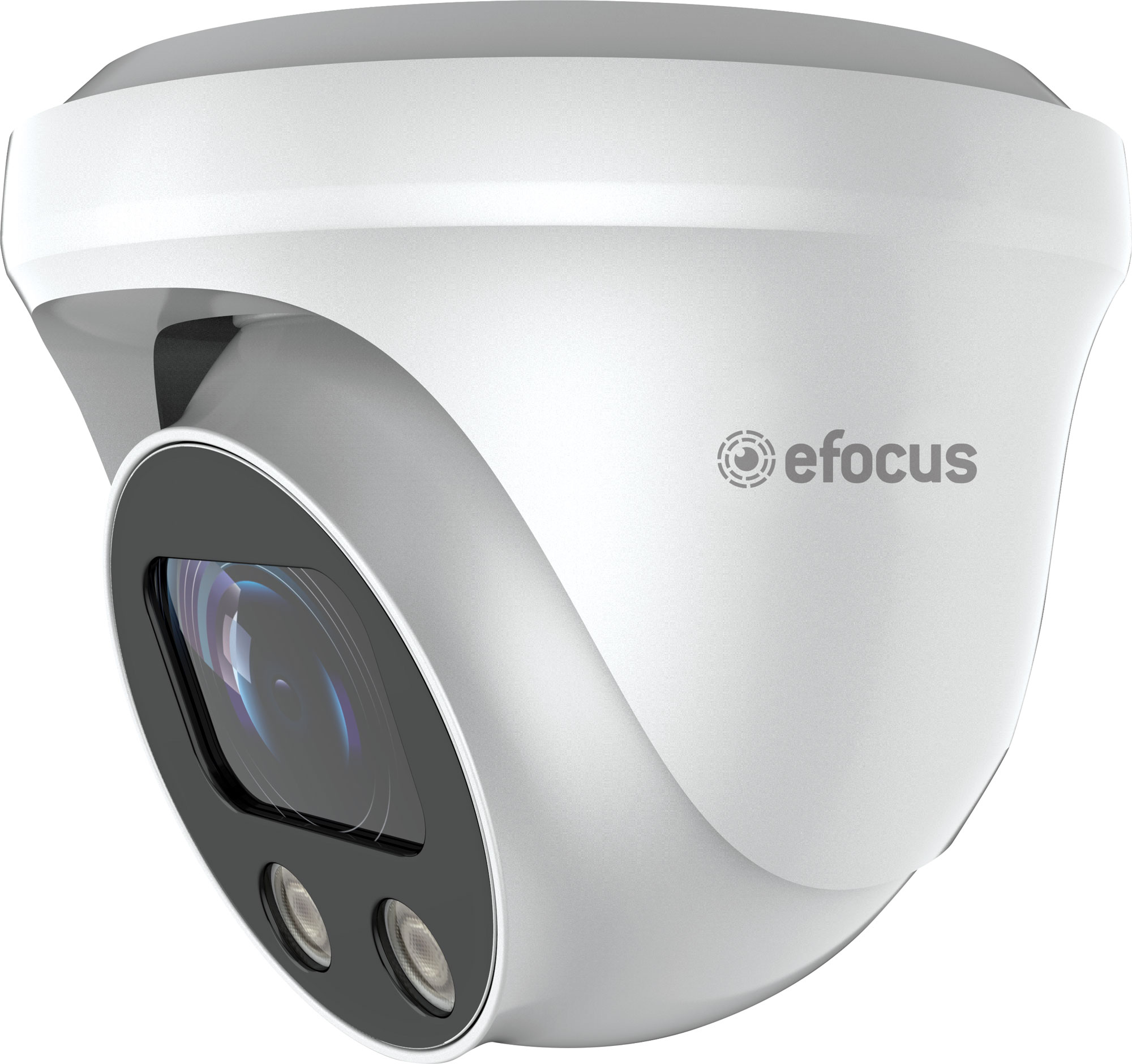

8.0 Megapixel Motor Zoom IP Dome Camera

Manufacturer: eFocus
Be the first to review this product
This compact 8MP dome/turret camera utilises a 1/2.8' SONY Starvis Back-Illuminated CMOS Sensor for a crisp clear view day or night.
SKU: S9833B
$335.45
Per ea
QuantityPrice
ea$335.45
3+$304.55
6+$271.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This compact 8MP dome/turret camera utilises a 1/2.8'''' SONY Starvis Back-Illuminated CMOS Sensor for a crisp clear view day or night. It offers multi-codec compression support with H.264/H.265 streams up to 3840x2160 resolution. The front mount infra-red LEDs offer up to 25m coverage at night time. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs. Supports ONVIF protocol for integration with most network video recorders. The camera has an SD card slot which supports maximum of 512GB SD cards.

Dimensions:

Features

  • Pro IP Dome
  • 1/2.8" SONY Starvis Back-illuminated CMOS sensor
  • H.265+/H.265/H.264+/H.264 Compression Method
  • 2.7-13.5mm Motorized Lens
  • IR Distance 25M Max.
  • With Internal POE and External SD Card Slot

Specifications

Camera

  • Image Sensor: 12.8" SONY Starvis Back-Illuminated CMOS Sensor
  • Resolution: 8MP
  • Effective Pixels: 3894(H)*2192(V)
  • Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
  • TV System: PAL/NTSC
  • Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
  • Minimum Illumination: 0.01Lux
  • S/N Ratio: =52dB
  • Scanning System: Progressive
  • Video Output: Network
  • Reset Button: Optional

Lens

  • Focus Length: 2.7-13.5mm Motor Zoom
  • Focus Control: Auto
  • Lens Type: Auto
  • Pixels: 8MP

Night Vision

  • Infrared LED: 42µ x 2pcs
  • Infrared Distance: 25m
  • IR Status: Auto Control
  • IR Power On: Smart, Manual and Timed mode.

Network

  • Ethernet: RJ-45 (10/100Base-T)
  • Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, UDP
  • ONVIF: Support ONVIF 2.4 (Profile S/T)
  • P2P: Yes, Support QR Code
  • POE: Internal, support IEEE 802.3af
  • Video Delay: 0.3 seconds (within the LAN)
  • Main Stream 1: 3840*2160@20fps
  • Main Stream 2: 2592*1944@30fps, 2560*1440@30fps
  • Main Stream 3: 1920*1080@30fps, 1280*720@30fps
  • Sub Stream 1: 720*480@30fps
  • Sub Stream 2: 352*288@30fps
  • Tri Stream: 1280*720@30fps, 720*480@30fps, 352*288@30fps
  • IR Browser: IE8-11, Google Chrome, Firefox, Mac Safari
  • Smart Phone: iPhone, iPad, Android, Android Pad

Camera Features

  • Day/Night: Colour/B&W (IR-CUT)
  • Image Configuration: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR, White Balance, FLK(Flicker Control), Video Tampering, HLC, Distortion
  • Corridor Pattern: Support
  • Defog Mode: Support
  • ROI: Support
  • BLC: Support
  • WDR: HDR: 120dB
  • Motion Detection: Support
  • Privacy Masking: 3 Rectangular Zone
  • Recording Mode: NVR/CMS/Web
  • Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Netherlands, Czech, Vietnamese

Interface

  • Audio: Audio IN/OUT by line
  • Alarm: 1 Channel Input/Output
  • SD Card Slot: Support up to 512GB (max)

General

  • Housing: Metal, IP67
  • Anti-Cut Bracket: Optional Wall Bracket
  • IR Cut Filter: Yes
  • Operating Temperature: -20°C ~ +60°C, RH 95% (max)
  • Storage Temperature: -20°C ~ +60°C, RH 95% (max)
  • Power Source: 12V DC ±10%, 700mA
  • Weight: 800g
  • Dimensions: ¢128 x 108(H)mm

12 Months

We Offer 12 Months for this product
