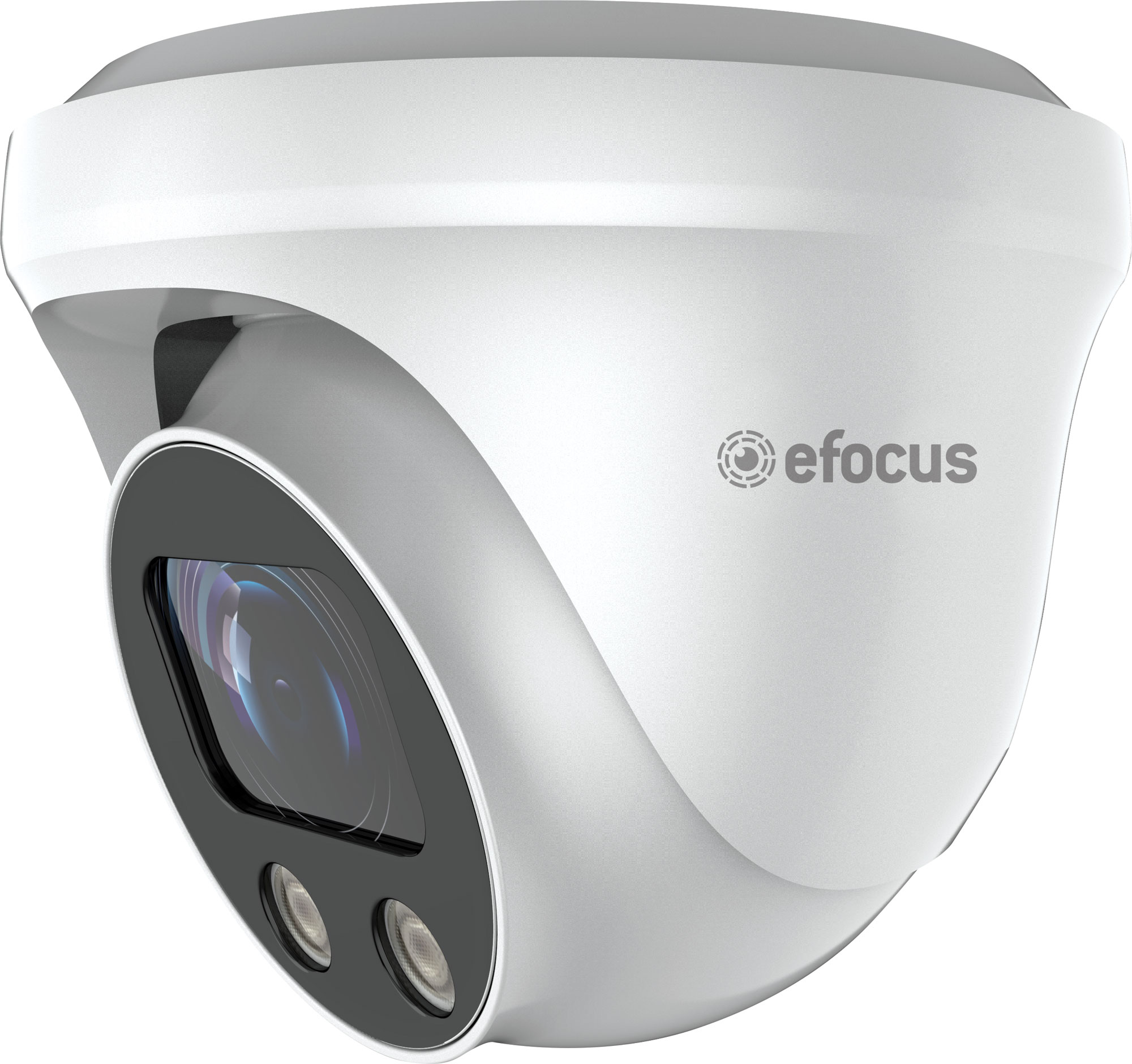

IP 5MP Motor Zoom 2.7-13.5mm POE Dome Camera

Manufacturer: eFocus
A day/night high resolution IP dome camera with multi-codec support.
SKU: S9832C
$299.09
Per ea
QuantityPrice
ea$299.09
3+$280.91
6+$253.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This Network IP Infra-Red 5MP Vari-Focal Dome Camera With POE is a day/night high resolution IP dome camera with multi-codec support. Offering a high resolution for integration with HD network video recorders. The higher resolution 5MP sensor allows for greater detail when using digital zoom. Motion detect triggering is also available. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs. Supports ONVIF protocol for integration with most network video recorders. The camera also features an Infrared Distance of 30M. The camera also has a SD card slot which supports up to 512GB SD cards.

This dome camera can be mounted to the wall using S9067 - see accessories listed below

Diagram

Features

  • Pro IP Dome
  • 1/2.8" SONY Starvis Back-illuminated CMOS Sensor
  • H.265+/H.265/H.264+/H.264 Compression Method
  • 2.7-13.5mm Motorized Lens
  • IR Distance 25M Max.
  • Internal POE

Specifications

General

  • Housing: Metal, IP67
  • IR Cut Filter: Yes
  • Operation Temperature: -20°C ~ +60°C RH95% Max
  • Storage Temperature: -20°C ~ +60°C RH95% Max
  • Power Source: DC12V±10%, 700mA
  • Weight: 800g
  • Dimensions: ¢128 x 108(H)mm

Camera

  • Image Sensor: 1/2.8" SONY Starvis back-illuminated CMOS sensor
  • Resolution: 4MP
  • Effective Pixels: 2616 (H)*1964(V)
  • Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
  • Audio Compression: G711A/U,AAC
  • TV System: PAL/NTSC
  • Electronic Shutter Time: Auto: 1/3-1/100000Sec
  • Minimum Illumination: Color: 0.003 lux@F1.6,AGC ON; B/W :0 lux with IR
  • S/N Ratio: =60dB
  • Scanning System: Progressive scan
  • Video Output: Network
  • Reset Button: Optional

Lens

  • Focus Length: 2.7-13.5mm Motor Zoom
  • Focus Control: Auto
  • Lens Type: Auto
  • Pixels: 4MP

Night Vision

  • Infrared LED: 42µ x 2PCS
  • Infrared Distance: 25m
  • IR Status: Auto Control
  • IR Power On: Smart, Manual & Timed mode

Network

  • Ethernet: RJ-45 (10/100Base-T)
  • Wireless: N/A
  • Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP, SNMP
  • ONVIF: Support ONVIF 19.12(Profile S/T/G)
  • P2P: Yes
  • PoE: Optional/Internal, Support IEEE 802.3af
  • Video Delay: 0.3S (Within the LAN)
  • Main Stream 1: 2592*1944@30fp
  • Main Stream 2: 2560*1440@30fp
  • Main Stream 3: 1920*1080@30fps; 1280*720@30fps
  • Sub Stream 1: 1280*720@30fps
  • Sub Stream 2: 720*480@30fps
  • Sub Stream 3: 352*288@30fps
  • Tri Stream: 1280*720@30fps; 720*480@30fps; 352*288@30fps
  • IR Browser: IE8-11, Google Chrome, Firefox , Mac Safari
  • Smart Phone: iPhone, Android

AI Function

  • Intelligent Analysis: Face Detection, Intrusion Detection, Line Cross Detection, Loiter Detection, People Gather Detecion (based on human detection), Motion detection (based on human detection)

Camera Features

  • Day/Night: Colour/ B&W (IR-CUT)
  • Image Configuration: Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance, FLK(Flicker Control), Occlusion Detection, HLC, Distortion
  • Full Colour: N/A
  • Corridor Pattern: Support
  • Defog Mode: Support
  • ROI: Support
  • BLC: Support
  • WDR: 120dB
  • Motion Detection: Support (support enable the detection based on human movement only)
  • Privacy Masking: 3 rectangular zone
  • Recording Mode: NVR/CMS/Web
  • Language: Chinese (Simplified), Chinese (Traditional), English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Netherlands, Czech, Vietnamese

Interface

  • Audio: Optional 1 Built in MIC
  • Alarm: Optional 1 Channel Input/Output
  • SD Card Slot: Optional Internal/ External, Support Max 1TB, Built in 4G Storage
  • RS485: N/A

12 Months

We Offer 12 Months for this product
