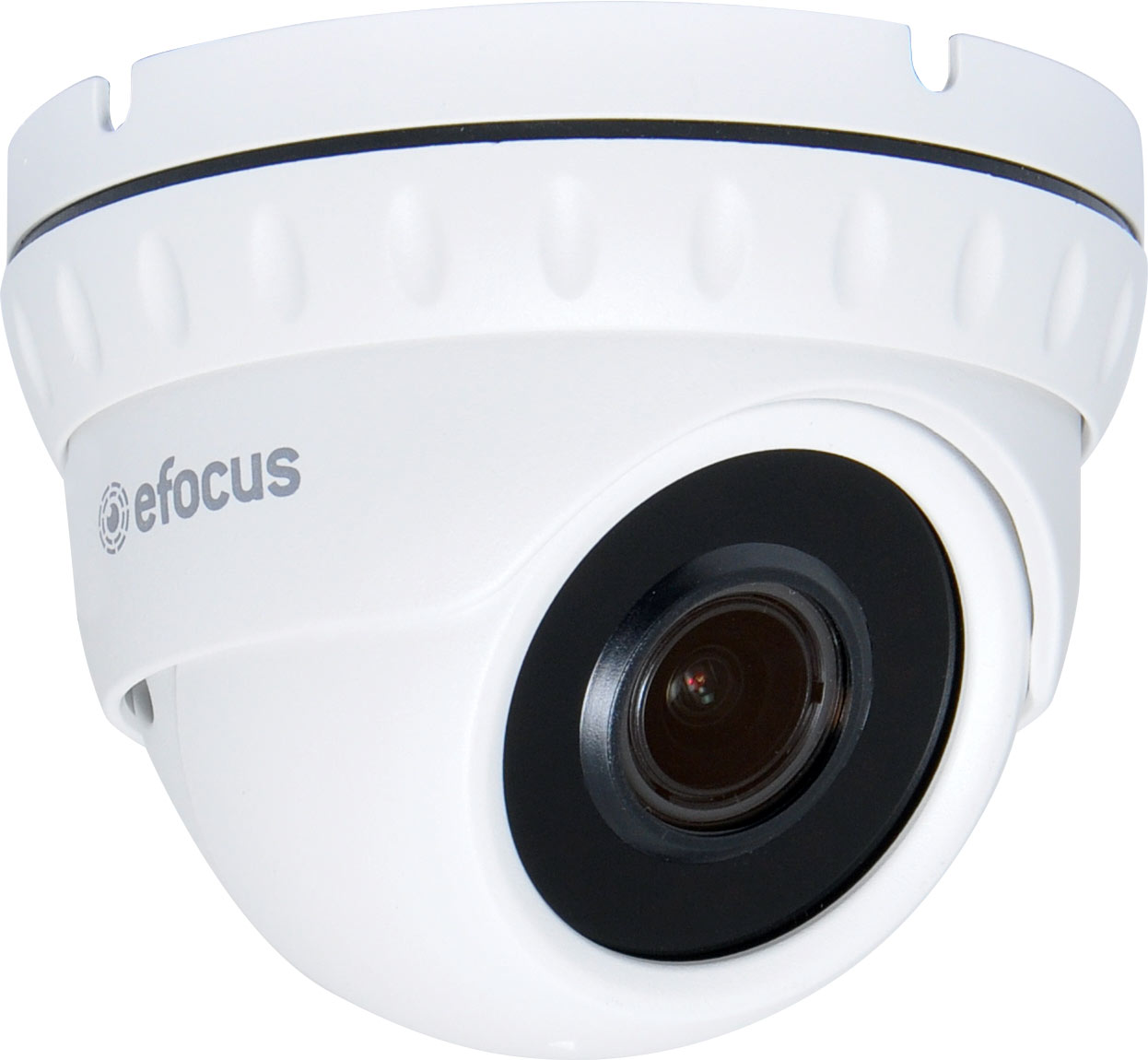

IP 5MP Motor Zoom 2.7-13.5mm POE Dome Camera

Manufacturer: eFocus
Be the first to review this product
A day/night high resolution IP dome camera with multi-codec support.
SKU: S9832B
$271.82
Per ea
QuantityPrice
ea$271.82
3+$244.55
6+$217.27

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This Network IP Infra-Red 5MP Vari-Focal Dome Camera With POE is a day/night high resolution IP dome camera with multi-codec support. Offering a high resolution for integration with HD network video recorders. The higher resolution 5MP sensor allows for greater detail when using digital zoom. Motion detect triggering is also available. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs. Supports ONVIF protocol for integration with most network video recorders. The camera also features an Infrared Distance of 30M. The camera also has a SD card slot which supports up to 512GB SD cards.

This dome camera can be mounted to the wall using S9067 - see accessories listed below

Features

  • 1/2.8"SONY Starvis Back-illuminated CMOS sensor
  • H.264/H.264+/H.265/H.265+ Compression Method
  • 2.7-13.5mm 5X Motor Zoom Auto Focus Lens
  • IR Distance 30m Max.
  • IP67 Outdoor Metal Case

Specifications

Camera

  • Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor
  • Resolution: 5MP
  • Effective Pixels: 2616 (H) x 1964 (V)
  • Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
  • TV System: PAL/NTSC
  • Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
  • Minimun Illumination: 0.01Lux
  • S/N Ratio: =52dB
  • Scanning System: Progressive
  • Video Output: Network
  • Reset Button: Optional

Lens

  • Focus Length: 2.7-13.5mm
  • Focus Control: Auto
  • Lens Type: Motorized
  • Pixels: 4MP

Night Vision

  • Infrared LED: 14µ x 24PCS
  • Infrared Distance: 30M
  • IR Status: Auto Control
  • IR Power On: Auto Control

Network

  • Ethernet: RJ-45 (10/100Base-T)
  • Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
  • ONVIF: Support ONVIF 2.4
  • P2P: YES, Support QR Code
  • POE: Optional/Internal, Support IEEE 802.3af
  • Video Delay: 0.3S (Within the Lan)
  • Main Stream 1: 592*1944@20fp, 2560*1920@20fps
  • Main Stream 2: 2560*1440@25fps
  • Main Stream 3: 1920*1080@30fps, 1280*720@30fps
  • Sub Stream 1: 720*480@15fps, 720*480@30fps
  • Tri Stream: 352*288@15fps, 352*288@30fps
  • IE Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)
  • Smart Phone: iPhone, iPad, Android, Android Pad

Camera Features

  • Day/Night: Color/ B&W (IR-CUT )
  • Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering
  • Corridor Pattern: Support
  • Defog Mode: Support
  • ROIS: upport
  • BLC: Support
  • WDR: DWDR: 50dB
  • Motion Detection: Support
  • Privacy Masking: 3 Rectangular Zone
  • Recording Mode: NVR/CMS/Web

Interface

  • Audio: Optional
  • SD Card Slot: Optional, Support Max 512GB

General

  • Housing: Metal ,IP67
  • Anti-cut Bracket: NO
  • IR Cut Filter: YES
  • Operation Temperature: -20? ~ +60? RH95% Max
  • Storage Temperature: -20? ~ +60? RH95% Max
  • Power Source: DC12V±10%, 950mA
  • Dimension: ?131 x 93(H) mm
  • Weight: 800g
  • Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese

12 Months

We Offer 12 Months for this product
