3.0 Megapixel Weatherproof Vari-Focal IP Dome Camera

Manufacturer: eFocus
Be the first to review this product
A day/night high resolution IP dome camera with multi-codec support.
SKU: S9829A
$153.64
Per ea
QuantityPrice
ea$153.64
3+$140.91
6+$126.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

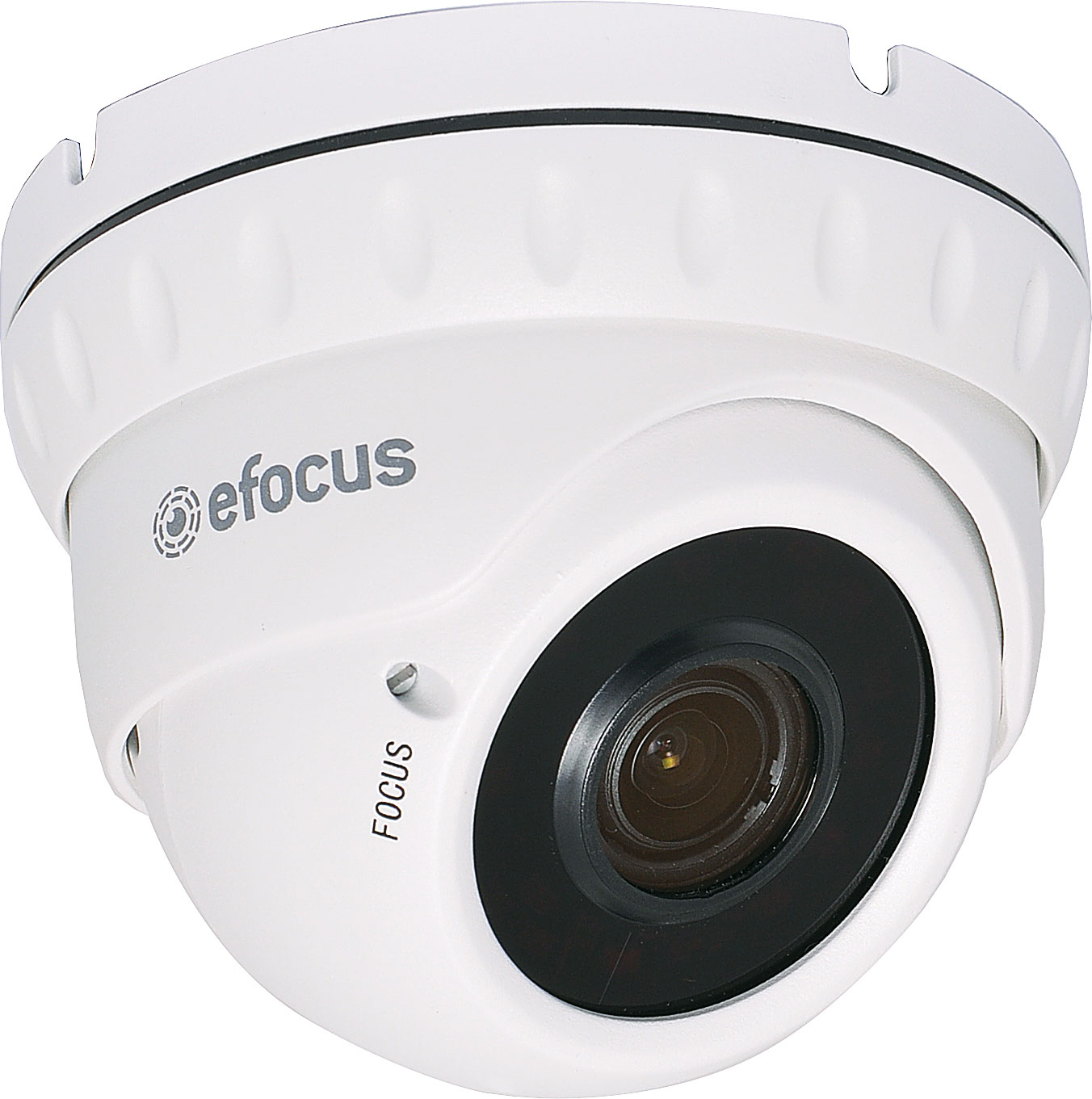

This 3.0 Megapixel Weatherproof Vari-Focal IP Dome Camera features a day/night high resolution IP dome camera with multi-codec support. It offers a clear 3MP video image at 15fps (1080p at 30fps) for integration with HD network video recorders. Motion detect triggering is also available. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs. Supports ONVIF protocol for integration with most network video recorders.

This dome camera can be mounted to the wall using S9067 - see accessories listed below

Features

  • H.264, JPEG compression
  • 3.0 megapixel
  • 3MP @ 15fps (1080p @ 30fps)
  • Simultaneous multiple streams
  • Supports ONVIF
  • Vandal resistant casing
  • External PoE receiver
  • Varifocal 2.8-12mm lens
  • Motion detect triggering
  • 1/2.8"SONY Starvis Back-illuminated CMOS Sensor
  • H.265+/H.265/H.264+/H.264 Compression Method
  • IR Distance 30m Max.
  • IP66 Outdoor Metal Case

Specifications

Camera

  • Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS Sensor
  • Image Resolution: 3MP
  • Effective Pixels: 1945(H)*1097(V)
  • Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
  • TV System: PAL/NTSC
  • Electronic Shutter: Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
  • Scanning System: Progressive Scan
  • Video Output: Network
  • Reset Button: Optional
  • Minimum Illumination: 0.005Lux
  • S/N Ratio: 52dB

Lens

  • Focus Length: 2.8-12mm
  • Focus Control: Manual
  • Lens Type: Varifocal
  • Pixels: 3MP

Night Vision

  • Infrared LED: 14µ x 24PCS
  • Infrared Distance: 30m
  • IR Status: Auto Control
  • IR Power On: Auto Control

Network

  • Ethernet: RJ-45 (10/100Base-T)
  • Protocol: TCPIP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
  • ONVIF: Support ONVIF 2.4
  • P2P: YES, Support QR Code
  • POE: Optional, Support IEEE 802.3af
  • Video Delay: 0.3S (Within the Lan)
  • Main Stream 1: 2048*1536@15fps
  • Main Stream 2: 1920*1080@30fps
  • Main Stream 3: 1280*720@30fps
  • Sub Stream 1: 720*480@15fps
  • 720*480@30fps
  • Tri Stream: 352*288@15fps
  • 352*288@30fps
  • IE Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari
  • Smart Phone: iPhone, iPad, Android, Android Pad

Camera Features

  • Day/Night: Color/ B&W (IR-CUT )
  • Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering
  • Corridor Pattern: Support
  • Defog Mode: Support
  • ROI: Support
  • BLC: Support
  • WDR: Support
  • Motion Detection: Support
  • Privacy Masking: 3 Rectangular Zone
  • Recording Mode: NVR/CMS/Web
  • Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands

Interface

  • Audio: Optional
  • SD Card Slot: Optional, Support Max 128GB

General

  • Housing: Metal, IP66
  • IR Cut Filter: YES
  • Operation Temperature: -20 ~ +60? RH95% Max
  • Storage Temperature: -20 ~ +60? RH95% Max
  • Power Source: DC12V±10%, 1100mA
  • Dimension: 131 x 93(H) mm
  • Weight: 800g

12 Months

We Offer 12 Months for this product
