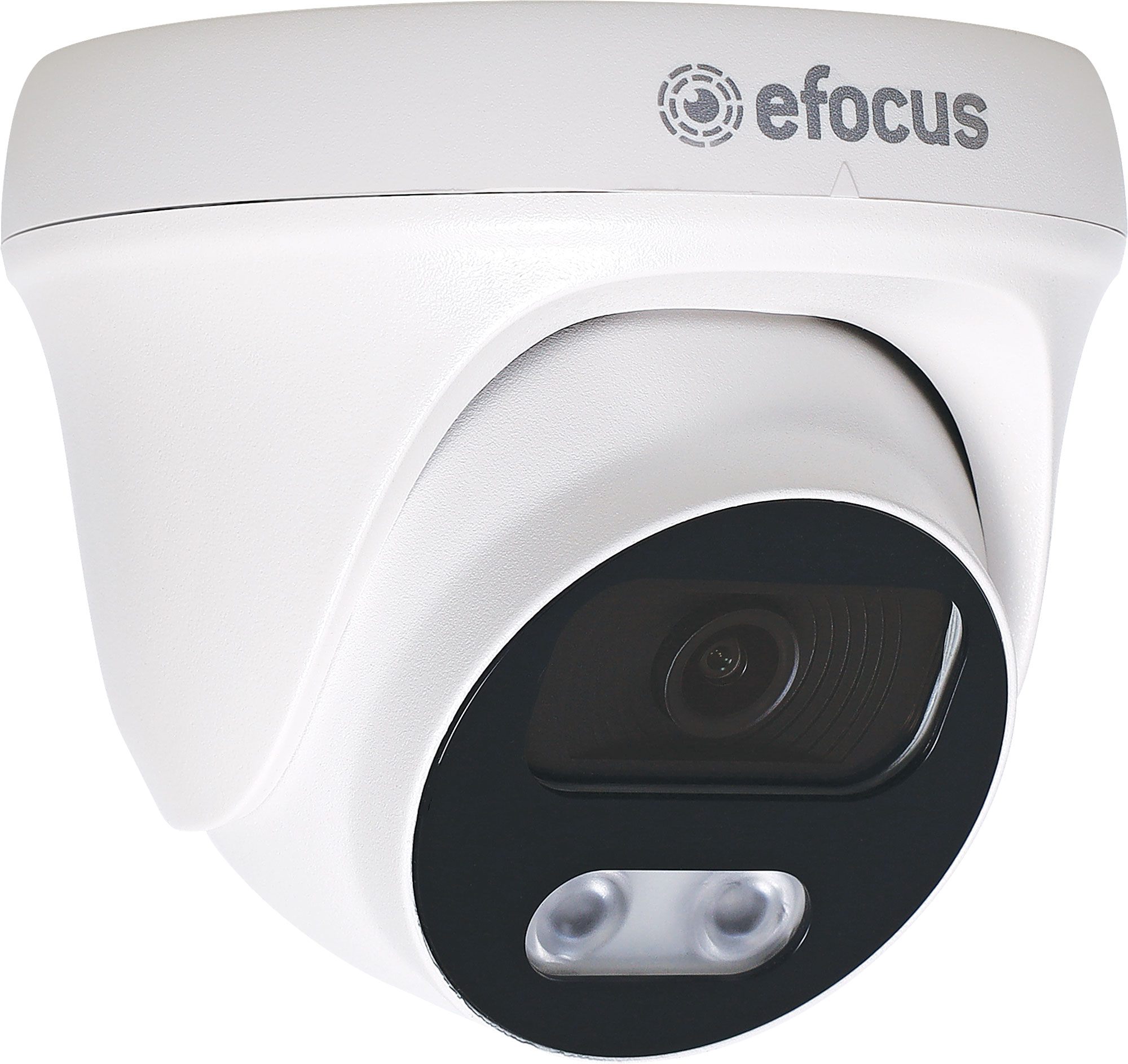

5.0 Megapixel Weatherproof IP Dome Camera

Manufacturer: eFocus
Be the first to review this product
A day/night high resolution IP dome camera with multi-codec support. Offering a clear 2592x1944 image at 30fps for integration with HD network video recorders.
SKU: S9815B
$171.82 $126.36
Per ea
Save $45.46
QuantityPrice
ea $171.82 $126.36
3+ $154.55 $126.36
6+ $140.91 $126.36

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A day/night high resolution IP dome camera with multi-codec support. Offering a clear 2592x1944 image at 30fps for integration with HD network video recorders. Motion detect triggering is also available. An in-built PoE receiver makes it easy to hook up to PoE ready NVRs. Supports ONVIF protocol for integration with most network video recorders.

Dimensions:

Features

  • Pro IP Dome
  • 1/2.8" SONY Starvis Back-illuminated CMOS Sensor
  • H.265+/H.265/H.264+/H.264 Compression Method
  • 2.8mm Fixed Lens
  • IR Distance 25M Max.
  • Internal POE and SD Card Slot

Specifications

Camera

  • Image Sensor: 1/2.8" SONY Starvis Back-Illuminated CMOS Sensor
  • Resolution: 5MP
  • Effective Pixels: 2616 (H) x 1964 (V)
  • Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
  • TV System: PAL/NTSC
  • Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
  • Minimum Illumination: 0.01Lux
  • S/N Ratio: =52dB
  • Scanning System: Progressive
  • Video Output: Network

Lens

  • Focus Length: 2.8mm
  • Focus Control: Fixed
  • Lens Type: Fixed
  • Pixels: 5MP

Night Vision

  • Infrared LED: 42µ x 2PCS
  • Infrared Distance: 25M
  • IR Status: Auto Control
  • IR Power On: Smart, Manual & Timed Mode

Network

  • Ethernet: RJ-45 (10/100Base-T)
  • Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, UPnP, SMTP, UDP
  • ONVIF: Support ONVIF 2.4(Profile S/T/G)
  • P2P: YES, Support QR Code
  • POE: Internal, Support IEEE 802.3af
  • Video Delay: 0.3S (Within the Lan)
  • Main Stream 1: 2592*1944@30fp
  • Main Stream 2: 2560*1440@30fp
  • Main Stream 3: 1920*1080@30fps, 1280*720@30fps
  • Sub Stream 1: 1280*720@30fps, 720*480@30fps
  • Sub Stream 2: 352*288@30fps
  • Tri Stream: 1280*720@30fps, 720*480@30fps, 352*288@30fps
  • IE Browser: IE8-11, Google Chrome, Firefox , Mac Safari
  • Smart Phone: iPhone, iPad, Android, Android Pad

AI Function

  • Intelligent Analysis Face Detection, Intrusion Detection, Line Cross Detection, Loiter Detection, People Gather Detection

Camera Features

  • Day/Night: Color/ B&W (IR-CUT)
  • Image Config: Saturation, Brightness, Contrast, Sharpness, Mirror, 3D NR, White Balance, FLK (Flicker Control), Video Tampering, HLC, Distortion
  • Corridor Pattern: Support
  • Defog Mode: Support
  • ROI: Support
  • BLC: Support
  • WDR: HDR: 120dB
  • Motion Detection: Support
  • Privacy Masking: 3 Rectangular Zone
  • Recording Mode: NVR/CMS/Web
  • Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese,
  • Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese.

Interface

  • Audio: 1 Built-in MIC (Optional Audio LINE IN/OUT)
  • SD Card Slot: Internal, Support Max 512GB,Built in 4G Storage

General

  • Housing: Metal , IP67
  • Anti-Cut Bracket: NO
  • IR Cut Filter: YES
  • Operation Temperature: -20? ~ +60? RH95% Max
  • Storage Temperature: -20? ~ +60? RH95% Max
  • Power Source: DC 12V±10%, 700mA
  • Dimension:?109 x 93(H) mm
  • Weight: 600g

12 Months

We Offer 12 Months for this product
