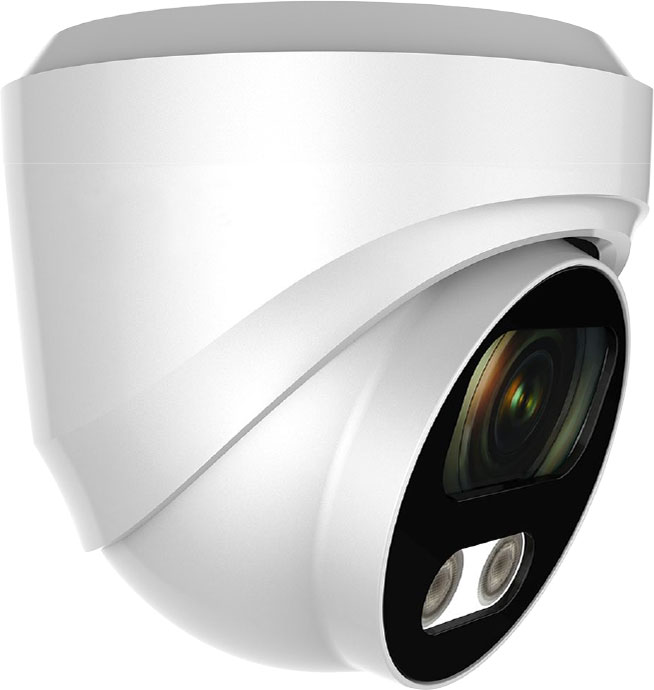

5.0 Megapixel Full Colour Dome IP Camera

Specifications

Camera

• Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor
• Resolution: 5MP
• Effective Pixels: 2616 (H)*1964 (V)
• Compression: H.264/H.265/JPEG/AVI
• Audio Compression: G711A/U,AAC
• TV System: PAL/NTSC
• Electronic Shutter Time: Auto: 1/3-1/100000Sec
• Minimum Illumination: Colour: 0.006 Lux @ (F1.6, AGC ON), B/W: 0 Lux with white light
• S/N Ratio: =52dB
• Scanning System: Progressive
• Video Output: Network
• Reset Button: Optional

Lens

• Focus Length: Board Lens 2.8mm
• Focus Control: Fixed
• Lens Type: Fixed
• Pixels: 5MP

Night Vision

• Infrared LED: No, Support Warm light LED 4000K, up to 25m
• IR Status: Auto Control
• IR Power On: Smart, Manual & Timed mode

Network

• Ethernet: RJ-45 (10/100Base-T)
• Wireless: N/A
• Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP, SNMP
• ONVIF: Support ONVIF 19.12(Profile S/T/G)
• P2P: YES
• POE: Internal, Support IEEE 802.3af
• Video Delay: 0.3S (Within the Lan)
• Main Stream 1: 2592*1944@30fp
• Main Stream 2: 2560*1440@30fp
• Main Stream 3: 1920*1080@30fps
• 1280*720@30fps
• Sub Stream 1: 1280*720@30fps
• Sub Stream 2: 720*480@30fps
• Sub Stream 3: N/A
• Tri Stream: N/A
• IE Browser: IE8-11, Google Chrome, Firefox , Mac Safari
• Smart Phone: iPhone, Android

AI Function

• Intelligent Analysis: Intrusion Detection, Line Cross Detection, Loiter Detection, People Gather Detection(based on human detection),Motion detection based on human detection

Camera Features

• Day/Night: Colour
• Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR, White Balance, FLK (Flicker Control), Occlusion Detection, HLC
• Full Colour: Support
• Corridor Pattern: Support
• Defog Mode: N/A
• ROI: Support
• BLC: Support
• WDR: 120dB
• Motion Detection: Support (support enable the detection based on human movement only)
• Privacy Masking: 3 Rectangular Zone
• Recording Mode: NVR/CMS/Web
• Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Netherlands, Czech, Vietnamese.

Interface

• Audio: Optional 1 Built-in MIC
• Alarm: N/A
• SD Card Slot: Optional Internal, Support Max 512GB
• RS485: N/A

General

• Housing: Metal , IP67
• Anti-cut Bracket: NO
• IR Cut Filter: YES
• Operation Temperature: -20? ~ +60? RH95% Max
• Storage Temperature: -20? ~ +60? RH95% Max
• Power Source: DC12V±10%, 1000mA
• Dimension: ?96 x 91(H) mm
• Weight: 600g
