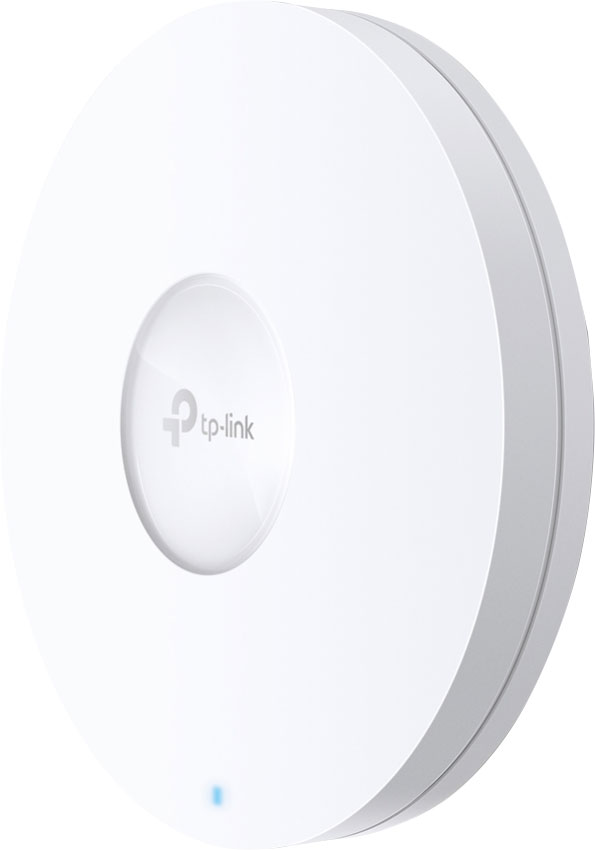

EAP620HD AX1800 Wireless Dual Band Ceiling Mount Access Point

Manufacturer: TP-Link
Be the first to review this product
This high performance ceiling mount wireless access point for general corporate Wi-Fi features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band)
SKU: S9749A
$231.82
Per ea
Quantity Price
ea $231.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This high performance ceiling mount wireless access point for general corporate Wi-Fi features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 4 spatial streams, multi-user throughput is incredibly increased to drive more applications. Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing a powerful business network with higher efficiency, higher security, and higher reliability.

Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with a captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.The addition of elegant appearance and simple mounting design for easy attachment to a ceiling further makes deployment effortless and flexible. Dimensions: 160W × 160D × 33.6H mm.

Package Contents
Wireless Dual Band Ceiling Mount Access Point
Power Adapter
Ceiling / Wall Mounting Kits
Installation Guide

Features

  • Ultra-Fast Wi-Fi 6 Speeds
  • 4× increased capacity to connect more devices simultaneously
  • Integrated into Omada SDN
  • Cloud access and Omada app for ultra convenience and easy management.
  • Seamless Roaming
  • PoE+ Support
  • Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Specifications

Hardware

  • Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
  • Button: Reset
  • Power Supply: 48V Passive PoE or 802.3at PoE or 12V/1.5A DC
  • Dimensions: 160W x 160D x33.6H mm
  • Antenna Type: Internal Omni Antenna; 2.4 GHz: 2× 4 dBi and 5 GHz: 2× 5 dBi
  • Mounting: Ceiling /Wall Mounting (Kits included) and Junction Box Mounting

Wireless Features

  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate: 5 GHz: Up to 1201 Mbps and 2.4 GHz: Up to 574 Mbps

Wireless Functions

  • 1024-QAM
  • 4× Longer OFDM Symbol
  • OFDMA
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • MU-MIMO
  • Seamless Roaming
  • Omada Mesh
  • Band Steering
  • Load Balance
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client

Wireless Security

  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

  • CE: <20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)
  • FCC: <25 dBm (2.4 GHz)<25 dBm (5 GHz)

Management

  • Omada App: Yes
  • Centralized Management: Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above), Omada Hardware Controller OC300, Omada Hardware Controller OC200, Omada Software Controller
  • Cloud Access: Yes, through; OC300, OC200, Omada Software Controller, Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above)
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging Local/Remote Syslog: Local/Remote Syslog
  • SSH: Yes
  • Web-based Management: HTTP/HTTPS
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes
  • Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above)

General

  • System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
  • Operating Temperature: 0–40?
  • Storage Temperature: -40–70?
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing

3 Years

We Offer 3 Years for this product
