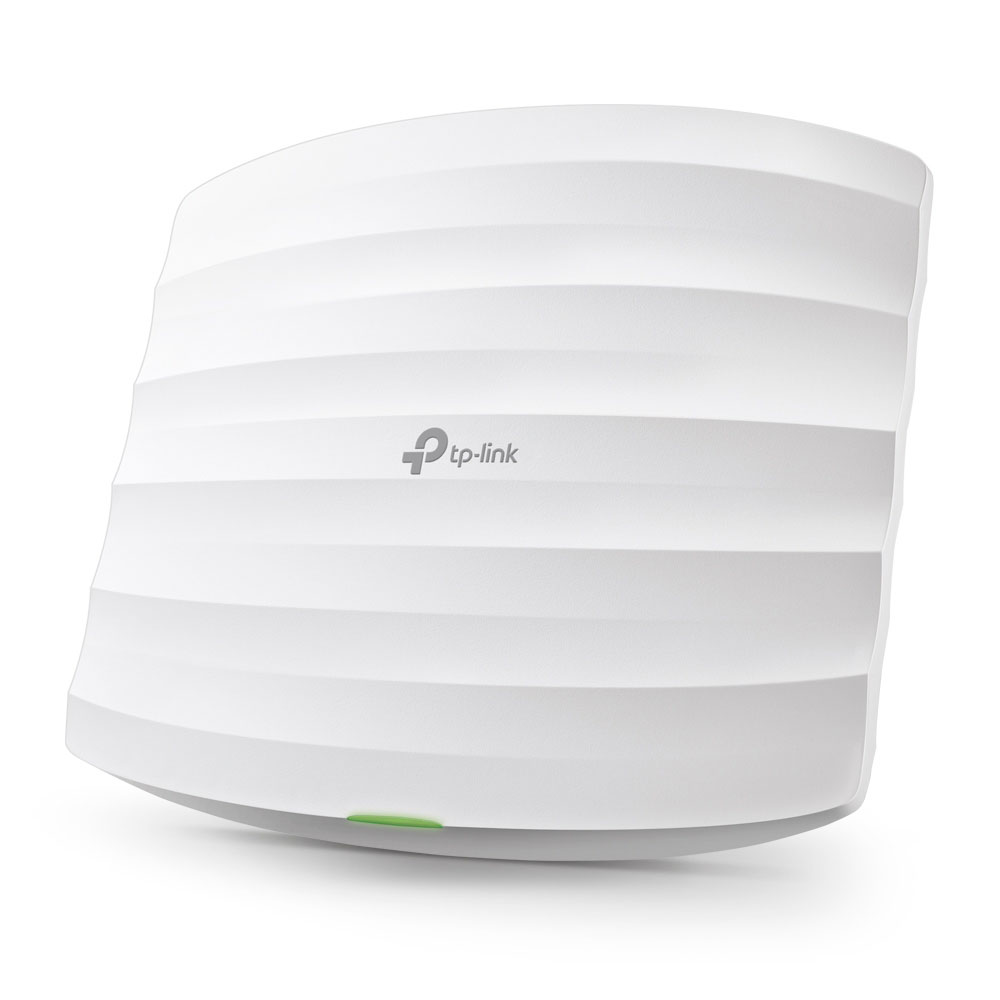

EAP225 AC1350 Wireless Gigabit Ceiling Mount Access Point

Manufacturer: TP-Link
SKU: S9747
As a long range indoor wireless device, the EAP225 is designed to provide a multiple connection and long distance wireless networking solution. It operates seamlessly in the 2.4GHz and 5GHz frequency spectra and provides wireless data transfer rates of up to 1200Mb
$139.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $139.77
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

The EAP225 is an ideal solution for large scale deployment of a wireless network system. Each access point can be managed in clusters of up to 24 units and the included software allows for hundreds of EAP225 to be controlled by any PC on the network. Its compact chassis has been designed for easy installation on ceilings or walls while the PoE connectivity means installation becomes a single cable affair. Perfect for shopping centres, hotels, universities and large businesses. 802.11AF connectivity gives up to 1200mbps speed. A comprehensive suite of management software is available which allows all of the features to be utilised. Dimensions: 205.5W × 181.5D × 37.1Hmm

Package Contents:
- AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
- Passive PoE Adapter
- Power Cord
- Mounting Kits
- Installation Guide

Features

  • Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
  • Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
  • PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

Specifications

Hardware Features

  • Interface: Gigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3af PoE and Passive PoE *)
  • Physical Security Lock: Yes
  • Button: Reset
  • Power Supply: 802.3af/at PoE. 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
  • Power Consumption: EU: 10.5 W, US: 12.6W
  • Antenna Type: 3 Internal Omni *, 2.4GHz: 4dBi, 5GHz: 5dBi
  • Mounting: Ceiling /Wall Mounting (Kits included)
  • Watch Dog: Yes

Wireless

  • Wireless Standards: IEEE 802.11ac/n/g/b/a
  • Frequency: 2.4GHz and 5GHz
  • Signal Rate: 5GHz:Up to 867Mbps, 2.4GHz:Up to 450Mbps
  • Wireless Functions:
  • - Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • - Enable/Disable Wireless Radio
  • - Automatic Channel Assignment
  • - Transmit Power Control (Adjust Transmit Power on dBm)
  • - QoS(WMM)
  • - Band Steering
  • - Load Balance
  • - MU-MIMO *
  • - Airtime Fairness *
  • - Beamforming *
  • - Rate Limit
  • - Reboot Schedule
  • - Wireless Schedule
  • - Wireless Statistics based on SSID/AP/Client
  • Wireless Security:
  • - Captive Portal Authentication
  • - Access Control
  • - Wireless Mac Address Filtering
  • - Wireless Isolation Between Clients
  • - SSID to VLAN Mapping
  • - Rogue AP Detection
  • - 802.1X Support
  • Transmission Power:
  • - CE:
  • =20dBm(2.4GHz,EIRP)
  • =23dBm(5GHz,EIRP)
  • - FCC:
  • =24dBm(2.4GHz)
  • =22dBm(5GHz)

Management

  • Omada App: Yes
  • Centralized Management:
  • • Omada Cloud-Based Controller
  • • Omada Hardware Controller (OC300)
  • • Omada Hardware Controller (OC200)
  • • Omada Software Controller
  • Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
  • EAP Controller Software: Yes
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1,v2c
  • System Logging Local/Remote Syslog: Local/Remote Syslog
  • Telnet: Yes
  • Web-based Management: HTTP/HTTPS
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes

General

  • Certification: CE, FCC, RoHS
  • System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
  • Operating Temperature: 0?~60?
  • Storage Temperature: -40?~70?
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

Warranty & Returns

5 Years

We Offer 5 Years for this product

Specifications

Products specifications
Warranty Group
Warranty 5 Years
