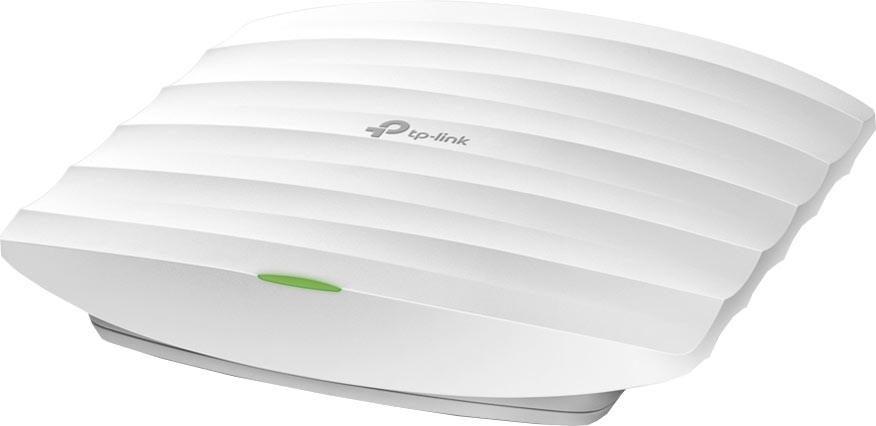

EAP110 2.4GHz 300Mbps Ceiling Mount Wireless Access Point

Manufacturer: TP-Link
SKU: S9745
As a long range indoor wireless device, the EAP110 is designed to provide a multiple connection and long distance wireless networking solution. It operates seamlessly in the 2.4GHz frequency spectrum and provides wireless data transfer rates of up to 300Mb
$53.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $53.64
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

The EAP110 is an ideal solution for large scale deployment of a wireless network system. Each access point can be managed in clusters of up to 24 units and the included software allows for hundreds of EAP110 to be controlled by any PC on the network. Its compact chassis has been designed for easy installation on ceilings or walls while the PoE connectivity means installation becomes a single cable affair. Perfect for shopping centres, hotels, universities and large businesses. 802.11N connectivity gives up to 300mbps speed. A comprehensive suite of management software is available which allows all of the features to be utilised.

Features

  • EAP Controller Software enables administrators to easily manage hundreds of EAPs
  • Support Passive PoE for convenient and affordable installation
  • Simple mounting design to easily mount to a wall or ceiling
  • 300Mbps wireless data rate for uninterrupted wireless connection
  • Captive portal provides one convenient method of authentication for Wi-Fi guests
  • Rate limit on per SSID to restrict the bandwidth of each client
  • Access Control restricts or allows the client to access the specified network segment
  • Reboot Schedule enables all the APs to be rebooted automatically within a specified time
  • WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
  • Multi-SSID divides multiple wireless network for different users
  • Load balance ensures large numbers of users have smooth network experiences in large business networks
  • Compatible with 802.11 b/g/n products
  • Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes
  • QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic
  • Prevents dust from dropping onto the PCB through bypass louver, which ensures long-term, unhindered operation.

Specifications

HARDWARE FEATURES

  • Interface: Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
  • Button: Reset
  • Power Supply: 24VDC / 1A Passive PoE Supply
  • Power Consumption: 7.7W
  • Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
  • Dimensions: 180W x 180D x 47.5H mm
  • Antenna Type: Internal 2* 3dBi Omni
  • Mounting: Ceiling /Wall Mounting (Kits included)
  • Physical Security Lock: Kensington Lock Slot
  • Watch Dog: Yes
  • WIRELESS FEATURES
  • Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
  • Frequency: 2.4-2.4835GHz
  • Signal Rate:
  • - 11n: Up to 300Mbps(dynamic)
  • - 11g: Up to 54Mbps(dynamic)
  • - 11b: Up to 11Mbps(dynamic)
  • Reception Sensitivity:
  • - 300M: -71dBm@10% PER
  • - 150M: -75dBm@10% PER
  • - 54M: -78dBm@10% PER
  • - 11M: -93dBm@8% PER
  • - 6M: -92dBm@10% PER
  • - 1M: -96dBm@8% PER
  • Wireless Functions:
  • - Multiple SSIDs（Up to 8 SSIDs）
  • - Enable/Disable Wireless Radio
  • - Automatic Channel Assignment
  • - Transmit Power Control （Adjust Transmit Power on dBm）
  • - QoS(WMM)
  • - Rate Limit
  • - Reboot Schedule
  • - Wireless Schedule
  • - Wireless Statistics based on SSID/AP/Client
  • Wireless Security:
  • - Captive Portal Authentication
  • - Access Control
  • - Wireless Mac Address Filtering
  • - Wireless Isolation Between Clients
  • - SSID to VLAN Mapping
  • - Rogue AP Detection
  • - 802.1X Support
  • - 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
  • Transmission Power:
  • - CE: <20dBm
  • - FCC: <26dBm
  • MANAGEMENT
  • EAP Controller Software: Yes
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1,v2c
  • System Logging Local/Remote Syslog: Local/Remote Syslog
  • Telnet: Yes
  • Web-based Management: HTTP/HTTPS
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Contents:
  • - 300Mbps Wireless N Ceiling Mount Access Point EAP110
  • - Passive PoE Adapter,
  • - Power Cord,
  • - Mounting Kits,
  • - Resource CD
  • - Installation Guide
  • System Requirements: Microsoft Windows 10/8/7/Vista/XP

Warranty & Returns

5 Years

We Offer 5 Years for this product

Specifications

Products specifications
Warranty Group
Warranty 5 Years
