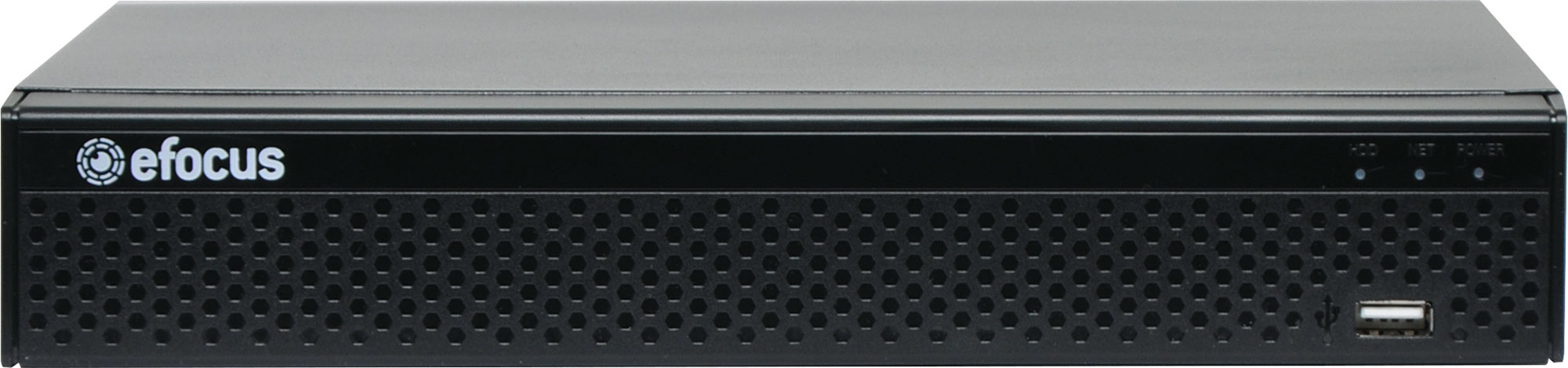

36 Channel 12MP Network Video Recorder

Specifications

System:

• Main Processor: ARM Cortex A17 Quad-core Processor
• Operating System: Embedded LINUX

Video:

• Input: 36CH (4000×3000, 4096×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
• Output: 1 VGA, 1 HD

Audio:

• Input: 1 Port RCA
• Output: 1 Port RCA(Linear, 1kΩ)
• Audio Bit Rate: 64kbps
• Audio Compression standard: G711u, G711a, ADPCM_DVI4

Alarm

• Sensor Input: NO
• Output: NO
• Motion Detection: 36 Channel, MD Zones: 396 (22 × 18)
• Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips

Display:

• HD Output1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Display Split: 36CHxD1/25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k/1CHx12MP
• Digital Zoom: YES
• OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording:

• Video Compression: H265/H264/H265+/H264+
• Resolution: 12MP(4000×3000),4k(4096×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
• Record Rate:
• PAL :12MP@25×25fp,4k@30×25fp,5MP@36×25fp,4MP@36x25fp,3MP@36×25fp,1080P@36×25fp, 960P@36×25fp,720P@36×25fp, D1@36×25fp
• NTSC: 12MP@25×30fp,4k@30×30fp,5MP@36×30fp,4MP@36×30fp,3MP@36×30fp,1080P@36×30fp, 960P@36×30fp, 720P@36×30fp, D1@36×30fp
• Record Mode: Manual, Timer, Motion Detection, Smart Alarm

Playback & Backup:

• Local Sync Playback: 3CH 12MP@15fps, 4CH 4K@30fps, 6CH 5MP@30fps, 8CH 4MP@30fps, 10CH 3M@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps
• Decode Capability: 4CH 4K(3840×2160)@30fps
• Remote Sync Playback: YES
• Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm
• Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom
• Backup Mode: USB Device/Network

Network:

• Interface: 1 RJ45 10M/100/1000M Adaptive Ethernet Interface
• Incoming Bandwidth: 300MB
• Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
• Onvif Version: Support Onvif 2.8
• Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
• CMS Software: Support Windows 7/ Windows 8/Windows 10/MAC OS
• Cloud Support(P2P): Yes
• Smart Phone: iPhone, iPad, Android, Android Pad

Storage

• Interface Type: 2 SATA Hard Disk Interface (3.5" SATA)
• Capacity: Up to 12TB capacity

General

• Language: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
• German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese
• USB Interface: 1 USB 2.0 Interfaces ,1 USB 3.0 Interface
• Power Supply: DC 12V/4A
• Working Environment: -10~55?/10~90%
• Dimensions: 310W x 295D x 46H(mm)
• Weight: 3.5KG (without HDD)
