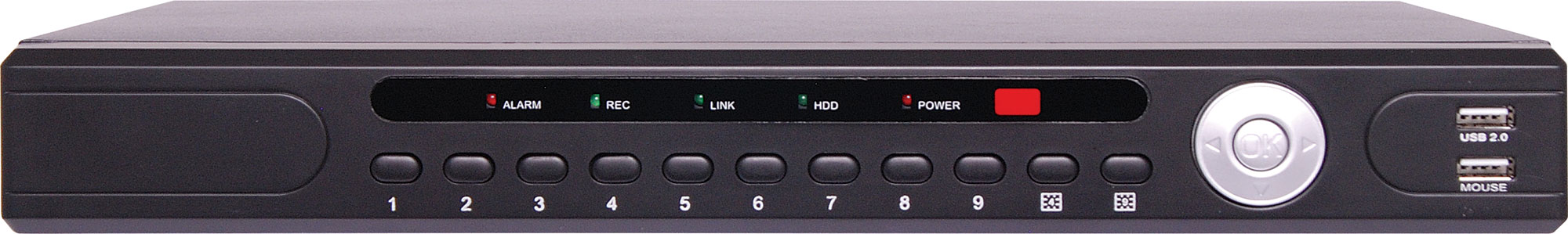

25 Channel 5MP Network Video Recorder

SKU: S9379
These network video recorders are designed to capture streams from up to 25 IP cameras with event notification via a remote monitoring app for Android or iOS devices.
Save $136.36 $180.91 $317.27

All Prices Shown are (ex GST)
Bulk Pricing
ea
$180.91 $317.27
2+
$180.91 $295.45
4+
$180.91 $271.82
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

These network video recorders are designed to capture streams from up to 25 IP cameras with event notification via a downloadable remote monitoring app for Android or iOS devices. It offers high definition recording & output for crystal clear live viewing and footage playback. 2 USB ports are is provided for additional storage or external backup. Smart recording function automatically adjusts the video resolution to optimise the recording efficiency. May be fitted with up to two SATA drives, providing a maximum of 12TB of storage space. Several recording modes are provided for flexible recording. These include events such as manual, Timer and motion detection. Includes power supply. Hard drives sold separately.

NOTE:
Installations of CCTV systems can vary greatly in configuration and technical complexity. We recommend that unless you have skills in computer networking that you engage a CCTV installer or professional to set up your installation. The process can involve opening router ports, setting up IP routes etc which can be daunting for a beginner. Every installation is different, as a result, it can be difficult to diagnose set up issues over the phone or via email.

HD Video Recording
- HD real-time recording brings users clear images while video recording and playback
- 1920*1080 Full HD video output service, giving the best image quality on LCD / LED monitors.

Multi-platform Remote Access
- Fully compatible with iPhone & iPad, and Internet Explorer on Windows operating system
- AVTECH free CMS program on both Windows and MAC OS

Powerful Storage Capacity
- Support up to 3 hard disks for long-term recording and saving large amount of recording data.

Smart Recording
- High video resolution switch for events to optimize the recording efficiency of the hard disk.

External Disk Array Support for More Video Storage
- eSATA interface built-in to connect a disk array (up to 4-bay disk array with RAID 0 and 1) for more video storage.

Full HD HDMI Video Output
- 1920*1080 Full HD video output service, giving the best image quality on LCD / LED monitors.

RS485 Communication
- Capable of external device connection to extend the functionality and flexibility of your NVR.

Specifications

System

  • Main Processor: ARM Cortex A9 Processor(Hi3535)
  • Operating System: Embedded Linux

Video

  • Input: 25CH (4096×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
  • Output: 1 x VGA, 1 x HDMI

Alarm

  • Sensor Input: Normally Open
  • Output: Normally open
  • Motion Detection: 25 Channel
  • Email Alarm: Supported

Display

  • VGA: Resolution: 1920×1080/1280×1024/1280×720
  • HDMI: Resolution: 1920×1080/1280×1024/1280×720
  • Display Split:
  • - 25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP
  • Digital Zoom: Yes
  • OSD: Camera Title, Time, Video Loss, Recording, Motion Detection

Recording

  • Video Compression: H.264
  • Resolution: 5M/4M/3M/1080P/960P/720p, etc (All Real Time)
  • Record Rate:
  • - PAL :5MP@600fps,4MP@600fps,3MP@600fps,1080P@600fps, 960P@600fps,720P@600fps, D1@600fps
  • - NTSC: 5MP@720fp,4MP@720fp,3MP@720fp,1080P@720fps, 960P@720fps 720P@720fps, D1@720fps
  • Record Mode: ManualTimerMotion Detection

Playback & Backup

  • Local Sync Playback: 1CH@5M/4CH@1080P
  • Remote Sync Playback: Yes
  • Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
  • Playback functions: Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital Zoom
  • Backup Mode: USB Device/Network

Network

  • Interface: 1RJ-45 10/100/1000Mbps Self-adaptive Ethernet Interface
  • Network Functions: HTTP, IPv4, TCP/IP, DNS, DHCP, NTP, DDNS
  • ONVIF Version: 2.4
  • Web Browser: IE6-11, Firefox, Chrome (Under Windows System)
  • CMS Software: Support Windows XP / Windows Vista / Windows 7/ Windows 8
  • Cloud Support (P2P): Yes
  • Incoming Bandwidth: 105MB
  • Smart Phone: iPhone, iPad, Android, Android Pad

Hard Disk Drive

  • Interface Type: 2 x SATA
  • Capacity: Up to 12TB

General

  • Language:
  • Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean
  • USB Interface: 2xUSB2.0 & 1xUSB3.0
  • Power Supply: 12V DC
  • Dimensions: 354W x 280D x 50H mm
  • Weight: 4.5kg

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
