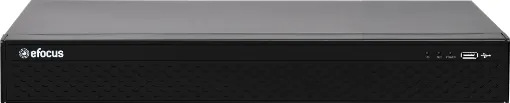

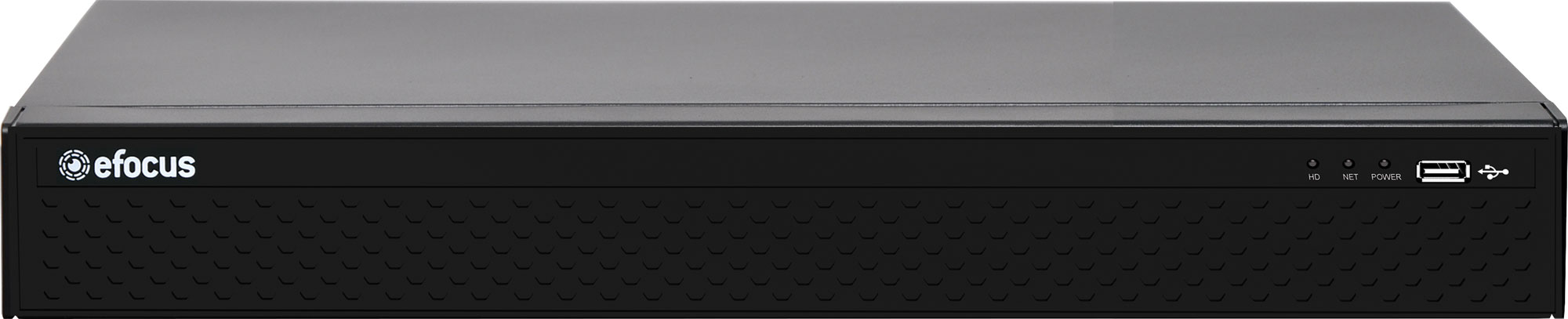

25 Channel / 16 Channel x PoE 4K Network Video Recorder

Specifications

System

• Main Processor: ARM Cortex A7 Processor
• Operating System: Embedded LINUX

Video

• Input: 25CH (4096×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
• Output:1 VGA, 1 HD

Audio

• Input:1 Port RCA
• Output: 1 Port RCA(Linear, 1kΩ)
• Audio Bit Rate: 64kbps
• Audio Compression standard: G711u, G711a

Alarm

• Sensor Input: 16CH Input
• Output: 4CH Output
• Motion Detection: 25 Channel, MD Zones: 396 (22 × 18)
• Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

Display

• HD Output: Resolution:4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA: Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Display Split: 25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k/1CHx12MP
• Digital Zoom: YES
• OSD: Camera Title, Time, Recording, Motion Detection

Recording

• Video Compression: H265/H264/H265+/H264+
• Resolution: 4k(4096×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
• Record Rate: PAL :4k@12×25fp,5MP@20×25fp,4MP@25x25fp,3MP@25×25fp,1080P@25×25fp, 960P@25×25fp,720P@25×25fp, D1@25×25fp
• NTSC: 4k@12×30fp,5MP@20×30fp,4MP@25×30fp,3MP@25×30fp,1080P@25×30fp, 960P@25×30fp, 720P@25×30fp, D1@25×30fp
• Record Mode: Manual Timer Motion Detection

Playback & Backup

• Local Sync Playback: 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
• Decode Capability: 1CH 4K(3840×2160)@30fps
• Remote Sync Playback: YES
• Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
• Playback Functions: Play, Pause, Stop, Fast Play, Digital Zoom
• Backup Mode: USB Device/Network

Network

• Interface: 16 x RJ45 (10M/100M Adaptive Ethernet Interface)+1xRJ45 10M/100M/1000M Adaptive Ethernet Interface
• Incoming Bandwidth: 120MB
• Network Functions: TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
• Onvif Version: Support Onvif 2.4
• Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
• CMS Software: Support Windows 7/ Windows 8/Windows 10
• Cloud Support(P2P)Yes
• Smart Phone: iPhone, iPad, Android, Android Pad
• POE: 16 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 12/36 line order, Total Power Output?200W, Support Plug and Play

Storage

• Interface Type: 4 SATA Interface
• Capacity: Up to 32TB capacity

General

• Languages: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek
• USB Interface: 2 USB 2.0 Interfaces
• RS485: 1xRS485
• Power Supply: AC 100-240V
• Working Environment: -10~55?/10~90%
• Dimensions: (W×D×H)493*367*69(mm)
• Weight: 9.8kg (without HDD)
