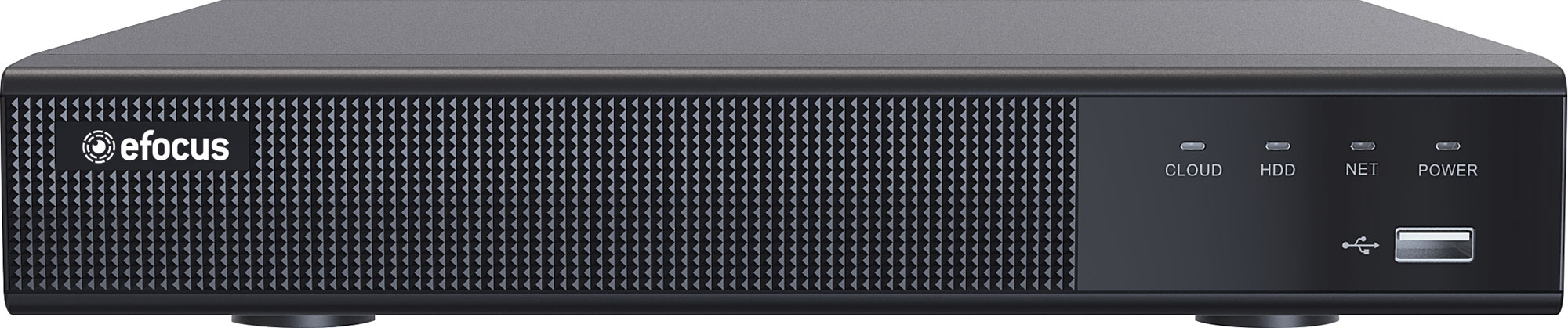

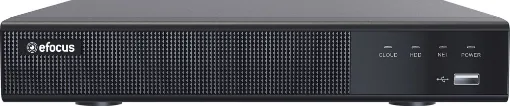

16 Channel / 8 Channel x PoE 4K NVR

Specifications

System

• Main Processor: ARM Cortex A7 Processor
• Operating System: Embedded LINUX

Video

• Input: 16CH (3840×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
• Output: 1 VGA, 1 HD

Audio

• Input: 1 Port RCA, support 16CH IPC audio input
• Output: 1 Port RCA (Linear, 1kΩ), HD output
• Audio Bit Rate: 64kbps
• Audio Compression standard: G711u, G711a, ADPCM_DVI4

Alarm

• Sensor Input: 4
• Output: 1
• Motion Detection: 16 Channel, MD Zones: 396 (22 × 18)
• Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

Display

• HD Output: 4K (3840*2160), 1920*1080, 1280*1024, 1280*720, 1024*768
• VGA: Resolution: 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Display Split: 16CHxD1/9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4K
• Digital Zoom: YES
• OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording

• Video Compression: H265/H264/H265+/H264+
• Resolution: 4K(3840×2160), 5MP(2592×1944), 4MP(2688×1520/2560×1440), 3MP(2048×1536), 1080P(1920×1080), 960P(1280x960), 720P(1280×720), D1 (720×576/720×480)
• Record Rate: PAL: 4K@10x25fps, 5MP@16×25fp, 4MP@16x25fp, 3MP@16×25fp, 1080P@16×25fp, 960P@16×25fp, 720P@16×25fp, D1@16×25fp
• NTSC: 4K@10x30fps, 5MP@16×30fp, 4MP@16×30fp, 3MP@16×30fp, 1080P@16×30fp, 960P@16×30fp, 720P@16×30fp, D1@16×30fp
• NTSC: 4K@10x30fps, 5MP@16×30fp, 4MP@16×30fp, 3MP@16×30fp, 1080P@16×30fp, 960P@16×30fp, 720P@16×30fp, D1@16×30fp
• Record Mode: Manual/Timer/Motion Detection/Alarm/Smart Event

Playback & Backup

• Local Sync Playback: 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,16CH D1@30fps
• Decode Capability: 4CH 1080P (1920x1080) @30fps
• Remote Sync Playback: YES
• Search Mode: ALL, Timing Video, Motion Detection, Alarm, Tag, Search, Smart Event, Picture, Log
• Playback Functions: Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio
• Backup Mode: USB Device/Network

Network

• Interface: 1xRJ45 10M/100/1000M Adaptive Ethernet Interface
• Incoming Bandwidth: 120MB
• Network Functions: TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p, PPPOE
• Onvif: onvif S,onvif T
• Web Browser: Edge,IE8-11, Google Chrome , Firefox ,Safari
• CMS Software: Support Windows 7/ Windows 8/Windows 10/MAC OS
• Cloud Support (P2P): Yes
• Smart Phone: iPhone, iPad, Android, Android Pad
• POE: 8 x Independent 100Mbps POE Network Interfaces (Output power AF mode 15W per port), 45/78 line order
• Total Power Output: = 96W
• Support Plug and Play
• Support network cable extended mode Max. 200M

Storage

• Interface Type: 1 SATA Hard Disk Interface (2.5"/3.5" SATA)
• Capacity: Up to 8TB capacity

General

• Language: Simplified Chinese, English, Russian, Deutsch, French, Portuguese, Spanish, Italian, Korean, Japanese
• USB Interface: 2 USB 2.0 Interfaces
• Power Supply: DC48V/2500mA
• Working Environment: -10~50?/10~90%
• Dimensions: 260W x 230D x 43H(mm)
• Weight: 2.0KG (without HDD)
