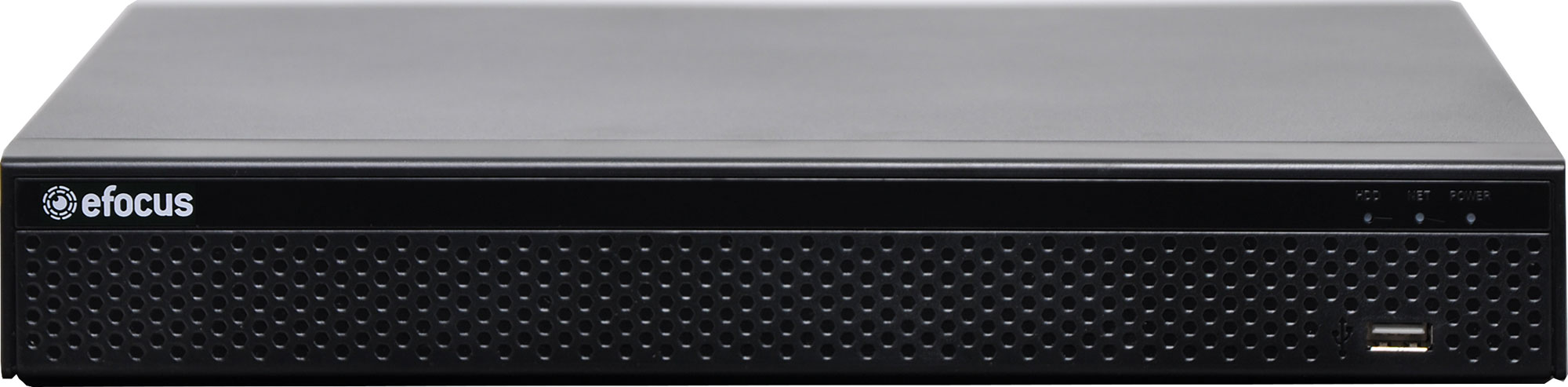

9 Channel / 4 Channel x PoE 8MP Network Video Recorder

Specifications

System

• Main Processor: ARM Cortex A7 Processor
• Operating System: Embedded LINUX

Video

• Input: 9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
• Output: 1 VGA, 1 HD

Audio

• Input: 1 Port RCA
• output: 1Port RCA (Linear, 1kΩ)
• Audio Bit Rate: 64kbps
• Audio Compression standard: G711u, G711a, ADPCM_DVI4
• intercom: Support (two-way)

Alarm

• Sensor Input: 4
• Output: 1
• Motion Detection: 9 Channel, MD Zones: 396 (22 × 18)
• Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

Display

• HD Output1: 1024x768/60Hz,1280x720/60Hz,1280x1024/60Hz,1920x1080/60Hz,4K(3840x2160)/30Hz
• HD Output2: N/A
• VGA: Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Display Split: 9CH/8CH/6CH/4CH/1CH
• Digital Zoom: YES
• OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording

• Video Compression: H265/H264/H265+/H264+
• Resolution: 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
• Record Rate:
• PAL :4K@8CHx25fps,5MP@9CH×25fp,4MP@9CHx25fp,3MP@9CH×25fp,1080P@9CH×25fp, 960P@9CH×25fp,720P@9CH×25fp, D1@9CH×25fp NTSC: 4K@8CHx30fps,5MP@9CH×30fp,4MP@9CH×30fp,3MP@9CH×30fp,1080P@9CH×30fp, 960P@9CH×30fp, 720P@9CH×30fp, D1@9CH×30fp
• Record Mode: ManualTimerMotion Detection AlarmSmart Event

Playback & Backup

• Local Sync Playback: 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,9CH D1@30fps
• Decode Capability: 4CH 1080P(1920x1080)@30fps
• Remote Sync Playback: Yes
• Search Mode: ALL, Timing Video, Motion Detection, Alarm,Tag search,Smart Event,Pictrue,Log
• Playback Functions: Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio
• Backup Mode: USB Device/Network

Network

• interface: 1xRJ45 10M/100M Adaptive Ethernet Interface
• Incoming Bandwidth: 80MB
• Network Functions: IPv6/TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
• Onvif: onvif S,onvif T
• Web Browser: Edge,IE8-11, Google Chrome, Firefox, Safari
• CMS Software: Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
• Cloud Support: Yes
• Smart phone: iPhone, iPad, Android, Android Pad
• POE: 4 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output%E2%89%A4 50W, Support Plug and Play, Support network cable extended mode Max. 200M
• Wifi: N/A

Storage

• Interface Type: 1 SATA Hard Disk Interface (3.5" SATA)
• Capacity: Up to 8TB capacity
• eSATA: N/A

General

• Language UI: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese,Janpanese
• USB Interface: 2 USB 2.0 Interfaces
• RS485: N/A
• Power consumption: DC52V/1250mA =20W (Without Hard Disk and POE)
• Working Environment: -10~55°C/10~90%
• Dimension(W×D×H): 260*215*43(mm)
• Weight: 2kg(without HDD)
