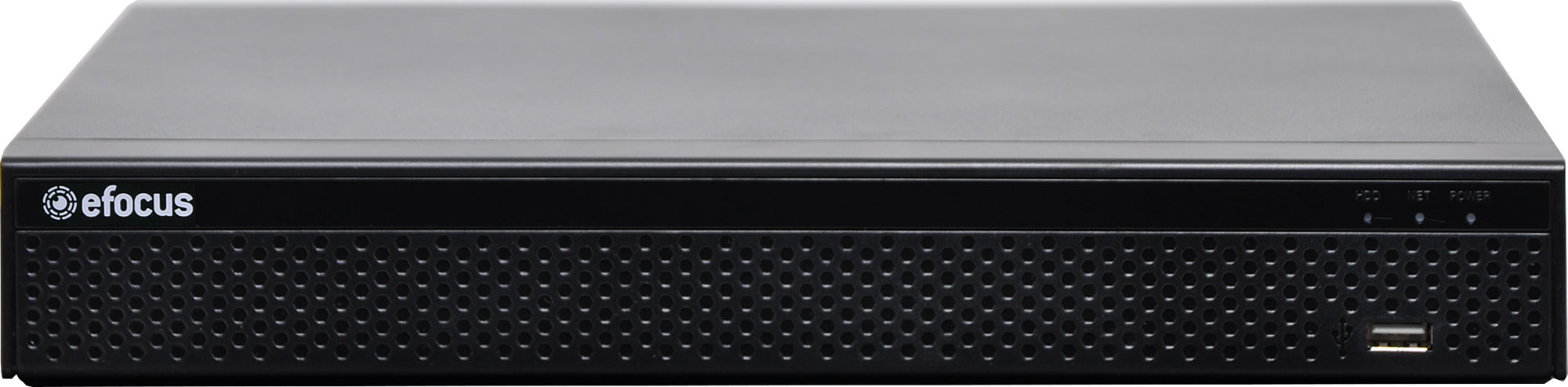

9 Channel / 4 Channel x PoE 5MP Network Video Recorder

Specifications

System

• Main Processor: ARM Cortex A7 Processor
• Operating System: Embedded LINUX

Video

• Input: 9CH (2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
• Output: 1 VGA, 1 HD

Audio

• Output: 1 Port 3.5mm(Linear, 1kΩ)
• Audio Bit Rate: 64kbps
• Audio Compression standard: G711u, G711a, ADPCM_DVI4

Alarm

• Sensor Input: NO
• Output: NO
• Motion Detection: 9 Channel, MD Zones: 396 (22 × 18)
• Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

Display

• HD Output: 1Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA: Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Display Split: 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP
• Digital Zoom: YES
• OSD: Camera Title, Time, Recording, Motion Detection

Recording

• Video Compression: H265/H264/H265+/H264+
• Resolution: 5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
• Record Rate: PAL :5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp
• NTSC: 5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp, D1@9×30fp
• Record Mode: Manual Timer Motion Detection

Playback & Backup

• Local Sync Playback: 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
• Decode Capability: 4CH 1080P@20fps
• Remote Sync Playback: YES
• Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
• Playback Functions: Play, Pause, Stop, Fast Play, Digital Zoom
• Backup Mode: USB Device/Network

Network

• Interface: 5 x RJ45 10M/100M Adaptive Ethernet Interface
• Incoming Bandwidth: 60MB
• Network Functions: TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
• Onvif Version: Support Onvif 2.4
• Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
• CMS Software: Support Windows 7/ Windows 8/Windows 10
• Cloud Support(P2P): Yes
• Smart Phone: Phone, iPad, Android, Android Pad
• POE: 4 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface), 45/78 line order, Total Power Output?50W, Support Plug and Play

Storage

• Interface Type:1 SATA Interface
• Capacity: Up to 8TB capacity

General

• Languages: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek
• USB Interface: 2 USB 2.0 Interfaces
• Power Supply: DC 52V/1250mA =6W (Without Hard Disk and POE)
• Working Environment: -10~55?/10~90%
• Dimension: (W×D×H)260*215*43(mm)
• Weight: 2.0KG (without HDD)
