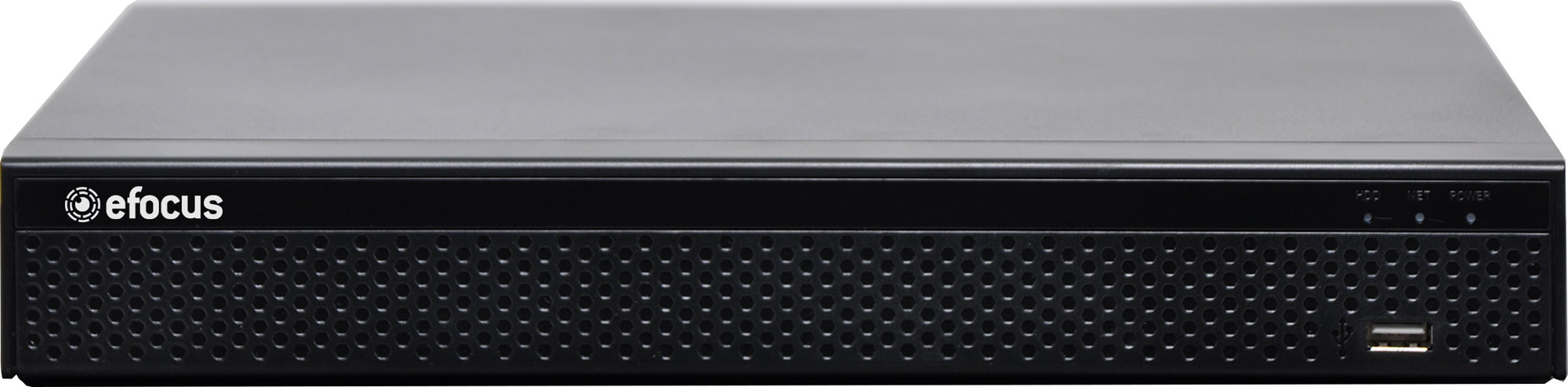

16 Channel AHD 8MP/IP/CVI/TVI Hybrid Digital Video Recorder

Manufacturer: eFocus
Be the first to review this product
This 16 channel digital video recorder is designed to support connection analog AHD, TVI and IP cameras (PoE router may be required for IP usage). Each channel can be individually recorded in real time 25fps @ 1080p to the internal SATA hard drive (available separately). Or 8fps @ 8MP (2592×1944px) resolution on all 16 channels.
SKU: S9349K
$544.55 $271.82
Per ea
Save $272.73
QuantityPrice
ea $544.55 $271.82
2+ $499.09 $271.82
4+ $453.64 $271.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This 16 channel digital video recorder is designed to support connection analog AHD, TVI and IP cameras (PoE router may be required for IP usage). Each channel can be individually recorded in real time 25fps @ 1080p to the internal SATA hard drive (available separately). Or 8fps @ 8MP (2592×1944px) resolution on all 16 channels. HDMI & VGA outputs are provided for connection to an external monitor. Channels may be viewed in full screen or quad modes with switching and freeze image functionality. Recording can be continuous, scheduled or triggered via motion detection or alarm input. Four alarm inputs are provided with 1 output for triggering auxiliary equipment. USB input is provided for backup and archiving. Footage can be viewed on your PC with the included software. Includes power supply. Live viewing can be done remotely over internet or on mobile devices (apps to suit iOS & Android). 1080p display resolution. Dual SATA interface (16TB max). Hard disk sold separately. Size: 310W x 295D x 46Hmm.

Download the platform software guide suitable for windows and mac


UNIT IS NOT SUPPLIED WITH HARD DRIVE. ALL HARD DRIVES AVAILABLE SEPARATELY

NOTE: Records in 16:9 1080P (1920x1080). Live viewing and recorded footage can be displayed on screen in 16:9 1080P however if the footage is downloaded onto USB drive the resulting video will be 8:9 (960x1080 pixel) not 16:9 (1920x1080). If downloaded footage needs to be in 16:9 format then cameras and recording setting must be set to 960H resolution. This model does not record in 720P.

All suitable cameras (both analog and IP) are listed as related items.

Suitable Cameras
32 IP cameras
2 AHD cameras with 14 IP
4 AHD cameras with 12 IP
6 AHD cameras with 10 IP
8 AHD cameras with 8 IP
10 AHD cameras with 6 IP
12 AHD cameras with 4 IP
14 AHD cameras with 2 IP

Features

  • Support AHD/CVI/TVI/IP/Analog Camera Input
  • Up to HD 8MP and IP 8MP Resolution Recording
  • Support HD Output, VGA and CVBS Video Output
  • Support Max. 16CH HD or 32CH IP Camera Input
  • Support 2 SATA up to 16TB Capacity

Specifications

System

  • Main Processor: HI3531D
  • Operating System: Embedded LINUX

Video

  • Input: Analog: 16*(AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI: 3MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H) Analog+Network: 14*Analog+2*network(Max 8MP), 12*Analog+4*network(Max 8MP), 10*Analog+6*network(Max 8MP),
  • 8*Analog+8*network(Max 8MP), 6*Analog+10*network(Max 8MP), 4*Analog+12*network(Max 8MP), 2*Analog+14*network(Max 8MP)
  • Network: 32*network(Max 8MP)(Total incoming bandwidth =160M)
  • Input: 16CH BNC
  • Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
  • Output: 1 HD, 1 VGA

Audio

  • Input: 6 Channel, RCA
  • Two-way Audio: NO
  • Output: 1 Channel, RCA

Alarm

  • Sensor Input: 4 Channel
  • Output: 1 Channel
  • Motion Detection: 16 Channel(max 32 Channel in pure network mode)
  • Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)
  • Email Alarm: Send Image to The Designated E-mail

PTZ

  • Interface: RS485
  • Protocol: Pelco-D, Pelco-P
  • Baud Rate: 110~921600
  • Address: 0~255

Display

  • VGA: Resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz
  • HD Output: Resolution: 3840×2160/30Hz, 2560x1440/30Hz, 1920 × 1080P /60Hz, 1280 × 1024/60Hz
  • Display Split: 36 Channel/25 Channel/16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
  • Privacy Masking: 3 Rectangular Zones (Each camera)
  • OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

  • Video Compression: H.265/H.265+/H.264+/H.264
  • Audio Compression: G711u
  • Resolution: 8MP(3840×2160),5MP(2592×1944),4MP(2560×1440),3MP(2048×1536),1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480)
  • Video Quality: worst/worse/ordinary/well/best
  • Record Rate: Analog:PAL:8MP(3840×2160 16*8fps),5MP(2592×1944 16*12fps),4MP(2560×1440 16*15fps),3MP(2048×1536 16*18fps),1080P(1920x1080
  • 16*25fps),720P(1280×720 16*25fps), 960H(960×576 16*25fps)
  • NTSC:8MP(3840×2160 16*8fps),5MP(2592×1944 16*12fps), 4MP(2560×1440 16*15fps),3MP(2048×1536 16*18fps),1080P(1920x1080
  • 16*30fps),720P(1280×720 16*30fps), 960H(960×480 16*30fps)
  • Pure IP(H.265):
  • PAL:8MP@17×25fps,5MP@26×25fps,4MP@32x25fps,3MP@32×25fps,1080P@32×25fps,960P@32×25fps,720P@32×25fps,D1@32×25fps
  • NTSC: 8MP@17×30fps,5MP@26×30fps,4MP@32×30fps,3MP@32×30fps,1080P@32×30fps, 960P@32×30fps, 720P@32×30fps, D1@32×30fps
  • Record Mode: Manual Timer Motion Detection

Playback and Backup

  • Decode Capability: 3CH 8MP@30fps
  • Sync Playback: Pure Analog: 16CH 8MP@8fps, 16CH 5M@12fps, 16CH 4M@15fps, 16CH 3M@18fps, 16CH 1080p@30fps
  • Mix Mode: 2CH 8MP@30fps, 4CH 5M@30fps, 4CH 4M@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
  • Pure IPC: 3CH 8MP@30fps, 4CH 5M@30fps, 6CH 4M@30fps, 8CH 3M@30fps, 9CH 1080P@30fps, 9CH 960P@30fps, 9CH 720P@30fps
  • Remote Playback 4 Channel / 1 Channel
  • Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
  • Playback Functions: Play, Pause, Stop, Fast play, Rewind, Digital Zoom, Full screen
  • Smart Phone Playback: 4 Channel
  • Backup Mode: USB Device (with format FAT 32) /Network

Network

  • Interface: 1 RJ45 10M/100/1000M Adaptive Ethernet Interface
  • Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP
  • DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
  • Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
  • CMS Software: Support Windows 7/ Windows 8/Windows 10
  • Extra Stream: CIF(1~30fps)
  • Smart Phone: iPhone, iPad, Android, Android pad

Hard Disk Driver

  • Interface Type: 2 SATA Interface
  • Capacity: 2 SATA Hard Disk (2.5"/3.5" SATA, Up to 16TB)

General

  • Languages: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek
  • UTC Control: YES
  • USB Interface: 2 USB 2.0 Interfaces
  • Power consumption: DC 12V
  • Working Environment: -10~55degrees /10~90%
  • Dimensions: (W×D×H) 310x295x46(mm)
  • Weight: 3.5kg (Without HDD)
