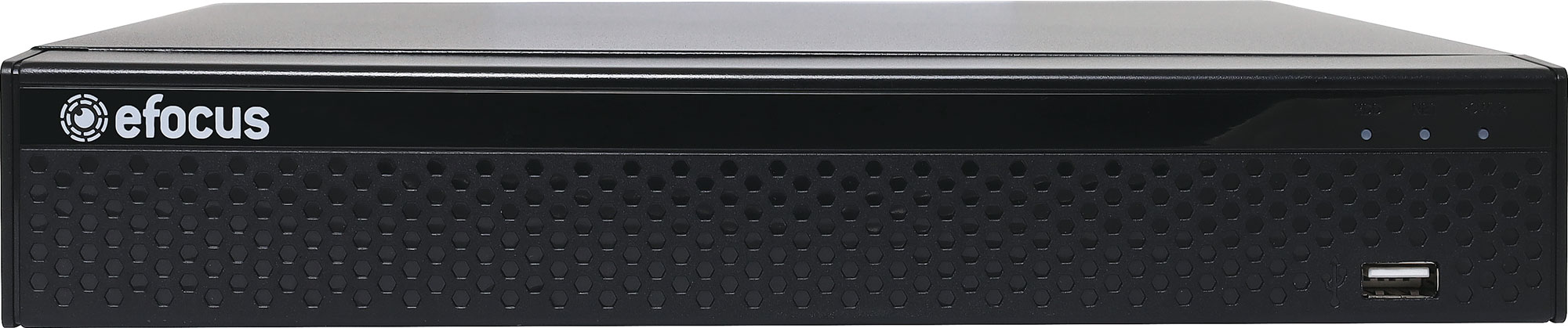

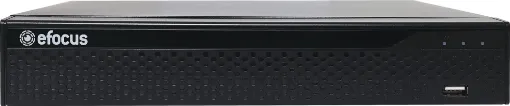

4 Channel AHD 8MP/IP/CVI/TVI Hybrid Digital Video Recorder

Specifications

System

• Main Processor: MC6650
• Operating System: Embedded LINUX

Video

• Input: Default - 4 x (AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H) + 4 x network (Max 8MP) Analog+Network: 2 x Analog, 7 x network (Max 8MP)
• Network - 16 x network (Max 8MP) (Total incoming bandwidth =80M)
• Input: 4 channel BNC
• Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
• Output: 1x HDMI, 1x VGA, 1x CVBS

Audio

• Input: 4 Channel RCA, support AOC
• Output: 1 Channel RCA

Alarm

• Sensor Input: 4
• Output: 1
• Motion Detection: 8 Channel (max 16 channel in pure network mode)
• Trigger Events: Recording, email, screen tips, buzzer, push notifications (motion detection)
• Email Alarm: Send image to the designated email

AI Function

• Face Comparison: Yes

PTZ

• Interface: RS485
• Protocol: Pelco-D, Pelco-P
• Baud Rate: 110~921600
• Address: 0~255

Display

• VGA: Resolution - 1920x1080P, 1280x1024, 1280x720, 1024x768
• HD Output: Resolution - 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
• Display Split: 1/4/8/9/16
• Privacy Masking: 3 rectangular zones (each camera)
• OSD: Camera Title, Time, Video Loss, Alarm, Motion Detection, Recording

Recording

• Video Compression: H.265/H.265+/H.264/H.264+
• Audio Compression: G.771u/G.771a
• Resolution: 8MP(3840×2160), 5MP(2560×1952), 4MP(2560×1440), 3MP(2048×1536), 1080P(1920×1080), 720P(1280×720), 960H(P:960×576/N:960×480)
• Video Quality: Lowest/Low/Ordinary/Good/Better/Best
• Record Rate:
• Analog - PAL: 8MP(3840x2160 4 x 8fps), 5MP(2560×1952 4 x 12fps), 4MP(2560×1440 4 x 15fps), 3MP(2048×1536 4 x 18fps), 1080P(1920x1080 4 x 25fps), 720P(1280×720 4 x 25fps), 960H(960×576 4 x 25fps)
• Pure IP (H.265) - PAL :8MP@9x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps
• Record Mode: Manual/Timer/Motion Detection/Alarm/Intelligent

Playback and Backup

• Decode Capability: 4 x 1080P@30fps
• Sync Playback: Pure Analog - 4CH 8M@8fps, 4CH 5M@12fps,4CH 4M@15fps, 4CH 3M@18fps, 4CH 1080p@30fps, 1CH 4K@30fps
• Mix Mode - 2CH 8M@8fps, 2CH 5M@12fps,2CH 4M@15fps, 2CH 3M@18fps, 2CH 1080p@30fps, 1CH 4K@30fps,2CH 5M@30fps, 2CH 4M@30fps,2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
• Pure IPC - 1CH 4K@30fps, 1CH 5M@30fps, 2CH 4M@30fps,2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
• Remote Playback: 4 Channel / 1 Channel
• Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection, Alarm, Tag
• Playback Functions: Play, Pause, Stop, Fast Play, Slow Play, Rewind, Single Frame Forward, Single Frame Backward, Digital Zoom, Full Screen
• Smart Phone Playback: 4 Channel
• Backup Mode: USB Device (with format FAT 32)/Network/FTP

Network

• Interface: 1RJ45 10M/100M Adaptive Ethernet Interface
• Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
• DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET
• Web Browser: Edge, IE8-11, Google Chrome, Firefox, Safari
• CMS Software: Support Windows 7/Windows 8/Windows 10
• Extra Stream: CIF/D1 (1-30fps)
• Smart Phone: iPhone, iPad, Android, Android Pad

Hard Disk

• Interface Type: 1 SATA Interface
• Capacity: 1 SATA Hard Disk (2.5""/3.5"" SATA, up to 8TB)

General

• UTC Control: Yes
• USB Interface: 2 USB 2.0 Interfaces
• Power Consumption: 12V DC/2A =10W (without hard disk)
• Working Environment: -10°C ~ +55°C / 10~90%
• Language: Simplified Chinese, Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese
• Weight: 2kg (without hard disk)
• Dimensions: 260 x 215 x 43 mm
