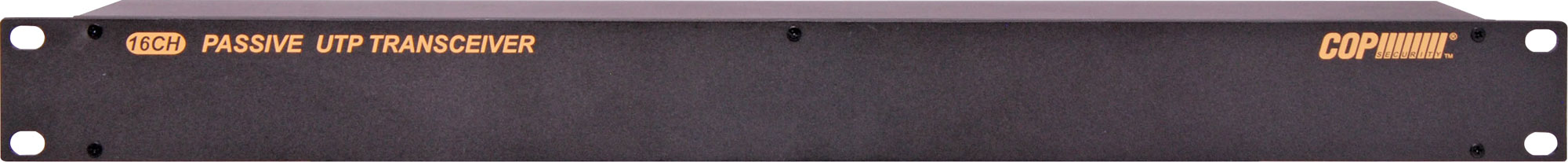

16 Channel UTP Passive Video Receiver

SKU: S9280
This rack mount passive distributor accepts up to 16 inputs from UTP baluns located up to 300m away (colour). Ideal for distributed CCTV systems. 16 x BNC outputs for connection to your DVR. UTP connection via spring loaded terminals. Requires no po
$271.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $271.82
2+ $259.09
4+ $240.91
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This rack mount passive distributor accepts up to 16 inputs from UTP baluns located up to 300m away (colour). Ideal for distributed CCTV systems. 16 x BNC outputs for connection to your DVR. UTP connection via spring loaded terminals. Requires no power.

Designed to work in conjunction with S 9244A UTP Tranceivers

Features

  • 16 Terminal blocks or 4 x RJ45 to 16 x BNC.
  • Built in high balanced mode of transmission for extra interference immunity.
  • Transmit a full motion monochrome video signal up to 600M color video signal up to 300M.
  • Video transmission only.
  • Built-in impedance couple device + noise filter.
  • Built-in surge absorber to reduce interference.

Specifications

Video input port: 16 Port Terminal Block / RJ45 x 4

  • Video output port: 16 Port (BNC Connector)
  • Transmission distance: Mono.600m / Color 300m
  • Cable: Twisted Pair CAT5
  • Dimensions: 440 x 80 X 44 mm
  • Weight: 1.48kg

Warranty & Returns

12 Months

We Offer 12 Months for this product
