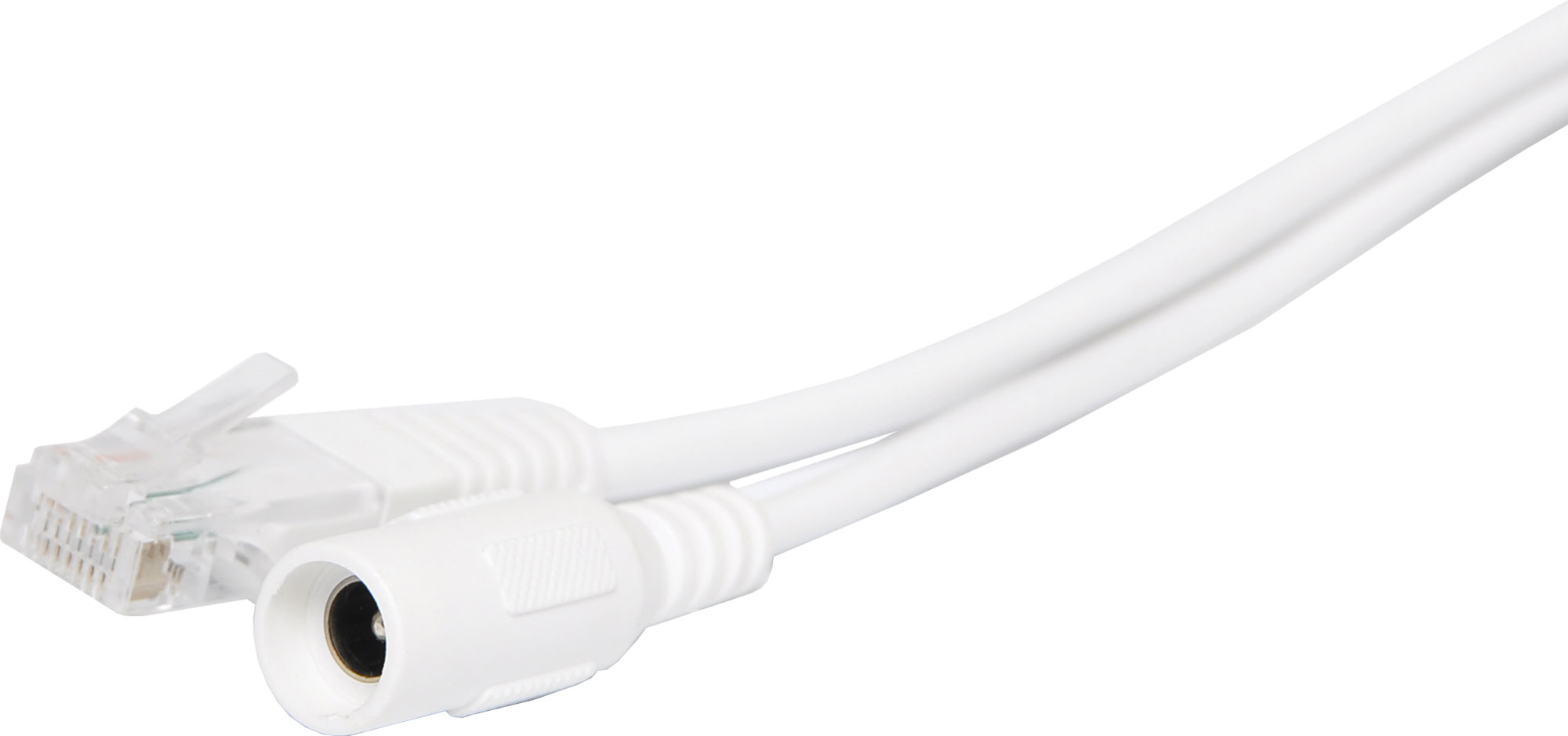

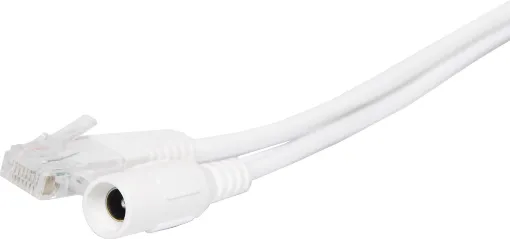

Waterproof IP PoE Camera Joiner Pair

Be the first to review this product
These camera joiners come as a pair and have a transmission distance of under 70m. The input power of the joiners is 12V-48V. The joiners add to a professional appearance for IP camera power cabling. The joiners also make IP camera installation easier by saving time plus creating a more secure cable connection.
SKU: S9274
$13.59
Per ea
QuantityPrice
ea$13.59
4+$12.50
6+$11.14

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This waterproof power over ethernet (PoE) splitter is Ideal for cameras in exposed installations, this waterproof splitter allows you to power non PoE equipped devices from a 802.3af Power Over Ethernet RJ45 cable (70m max). 12V, 2A max.

Features

  • 1 LAN-In (Data + Power) +1 LAN-Out (Data Only)
  • Take Power from PSE
  • 5v 12v 24v 48v Passive POE
  • 5v 12v 24v 48v Cheap price of cable type passive POE splitter
  • Splitter: RJ45 Female to RJ45 Male + Power Out
  • Passive PoE - means that input and output voltage are equal.
  • Works with all DC powered non-PoE devices
  • Supports 5V, 12V, 24V, 48V
  • Power supply required for power input - simply use the power supply (wall transformer) that is provided with the device you are trying to power.
  • Uses industry standard 5.5mm x 2.1mm power plugs
  • Can work up to 150ft (depending on the quality of the cable and the power draw of the device)

Specifications

Power Output Specification

  • Data : Pins 12 / 36
  • Power : Pins 45(+) / 78(-)
  • Data in : PC / Hub / Switch
  • Connector : RJ-45
  • Wires : UL standard
  • Data rate : 10/100 Mbps
  • Ethernet cable : TIA/EIA 568 Cat.5 or Cat.5e

General Specification

  • Operation Temperature : 0°C ~ +40°C
  • Storage Temperature : -40°C ~ +70°C
  • Operation Humidity : 10% - 80% RH
  • Storage Humidity : 5% - 90% RH
  • Case of material : PVC
  • DC Plus & Jacks : 2.1x5.5x12mm /2.5x5.5x12mm
  • Cable Length : 150mm +10mm

12 Months

We Offer 12 Months for this product
