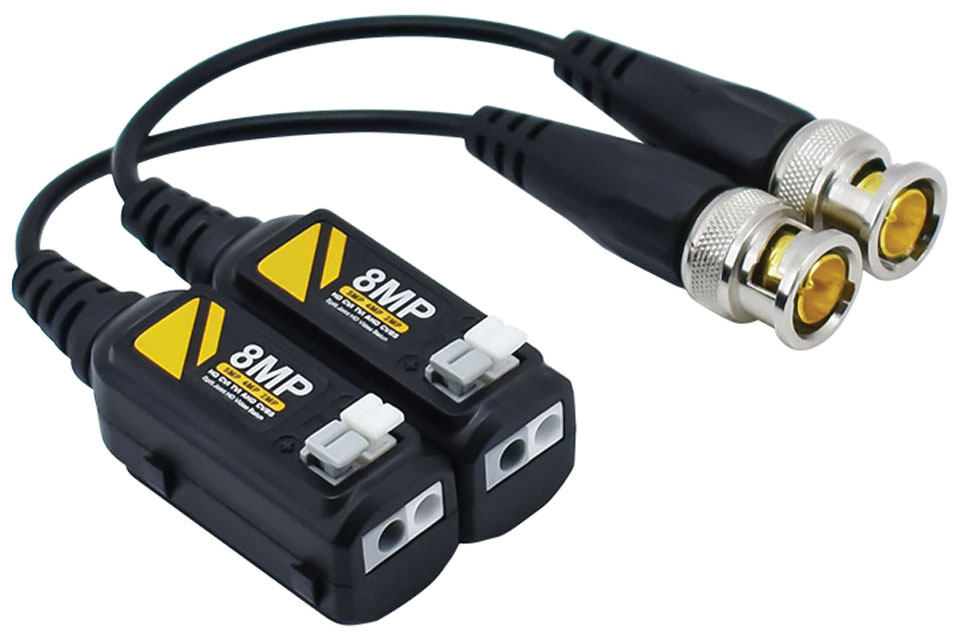

8MP Video UTP Transceiver Pair

Be the first to review this product
Allows the transmission of a signal from a camera for up to 400m over standard Cat 5e UTP cable. No power required. Video transmission suitable for use with cameras up to 8MP resolution. Sold in a pair.
SKU: S9244C
$20.86
Per ea
QuantityPrice
ea$20.86
2+$18.86
4+$16.82

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Allows the transmission of a signal from a camera for up to 400m over standard Cat 5e UTP cable. No power required. Video transmission suitable for use with cameras up to 8MP resolution. Sold in a pair.

Specifications

Properties

  • Transmission signal: 1 channel
  • Transmission distance: AHD/CVl:400m (max), TVI/CVBS:300m (max)
  • Category Type : UTP CAT5/5E/6

Video transmission Properties and Port

  • Coaxial video connector: BNC-M
  • Twisted-pair Video Connector: Push-terminal
  • Compatible Format: CVI/TVI/ AH D/CVBS
  • Resolution: 720P/960P/1080P/3MP/4MP/SMP/8MP
  • Anti-interference: 60db

Impedance

  • BNC Male: 75ohms
  • UTP Cable: 100ohms

12 Months

We Offer 12 Months for this product
