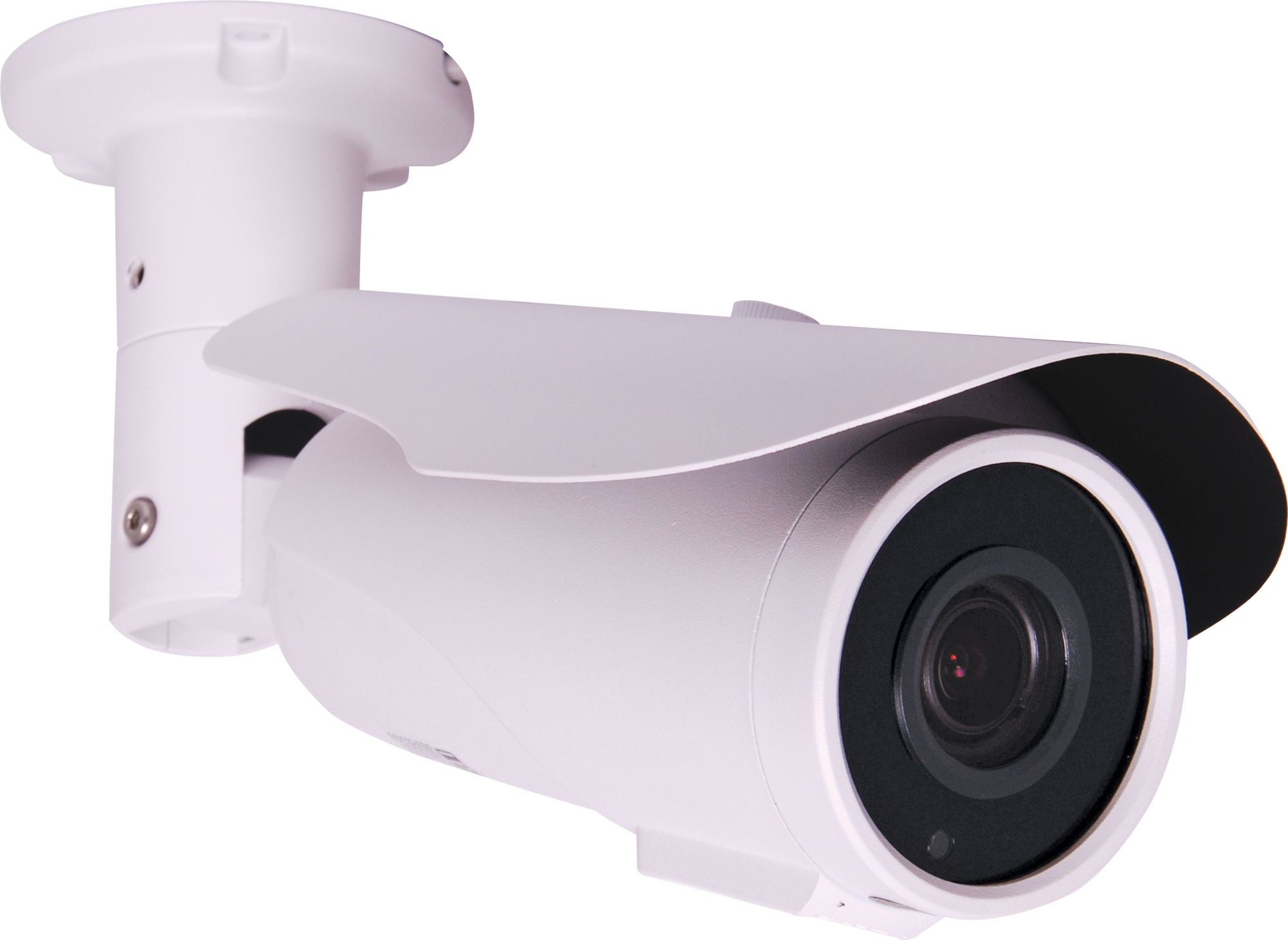

1080p AHD / 960H IP66 IR Colour Vari-Focal Bullet Camera

SKU: S9137G
A high performance camera that features both 1080P AHD and 960H standard definition output. Great for installs where old standard definition DVRs are used and maybe upgraded in the future. The lead control toggles the video output between 1080P AHD and 960H standard definition. Day&Night setting should be changed to Auto if the you would like autom
$145.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $145.45
3+ $135.45
6+ $122.73
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A high performance camera that features both 1080P AHD and 960H standard definition output. Great for installs where old standard definition DVRs are used and maybe upgraded in the future. The lead control toggles the video output between 1080P AHD and 960H standard definition. Day&Night setting should be changed to Auto if the you would like automatic day to night filtering.

Features

  • 1/2.8"SONY Starvis Back-illuminated CMOS Sensor
  • AHD/CVI/TVI/CVBS 4 IN 1
  • 2.8-12mm Varifocal Lens
  • IR Distance Max. 40m
  • IP66 Outdoor, OSD&UTC Support

Specifications

Camera

  • Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS Sensor
  • Image Resolution: 2MP 1080P/ 960H
  • Effective Pixels: 1920*1080
  • TV System: PAL/NTSC
  • Electronic Shutter: 1/25s~1/50,000s , 1/30s~1/60,000s
  • S/N Ratio: ≥50dB
  • Scanning System: Progressive Scan

Lens

  • Focus Length: 2.8-12mm
  • Focus Control: Manual
  • Lens Type: Varifocal
  • Pixels: 2M Pixels
  • Auto Iris Support: NO

Night Vision

  • Infrared LED: 42µ x 4PCS
  • Infrared Distance: 40M
  • IR Power On / Off: Smart IR control

Camera Features

  • Starlight: YES
  • Day/Night: YES
  • OSD Menu Language: YES
  • White Balance: AUTO / MANUAL
  • Gain Control: AUTO
  • Noise Reduction: 3DNR
  • Picture Adjustment: YES
  • WDR: YES
  • OSD Support: YES
  • UTC: YES

General

  • Housing: Metal, IP66
  • Bracket: YES
  • Dual Voltage: Optional
  • IR Cut Filter: YES
  • Heater: Optional
  • Operation Temperature: -10℃ ~ +50℃ RH95% Max
  • Storage Temperature: -20℃ ~ +60℃ RH95% Max
  • Power Source: DC12V±10%, 700mA
  • Dimension: 290(W) x 92(H) x 80(D)mm
  • Weight: 1400g

Warranty & Returns

12 Months

We Offer 12 Months for this product
