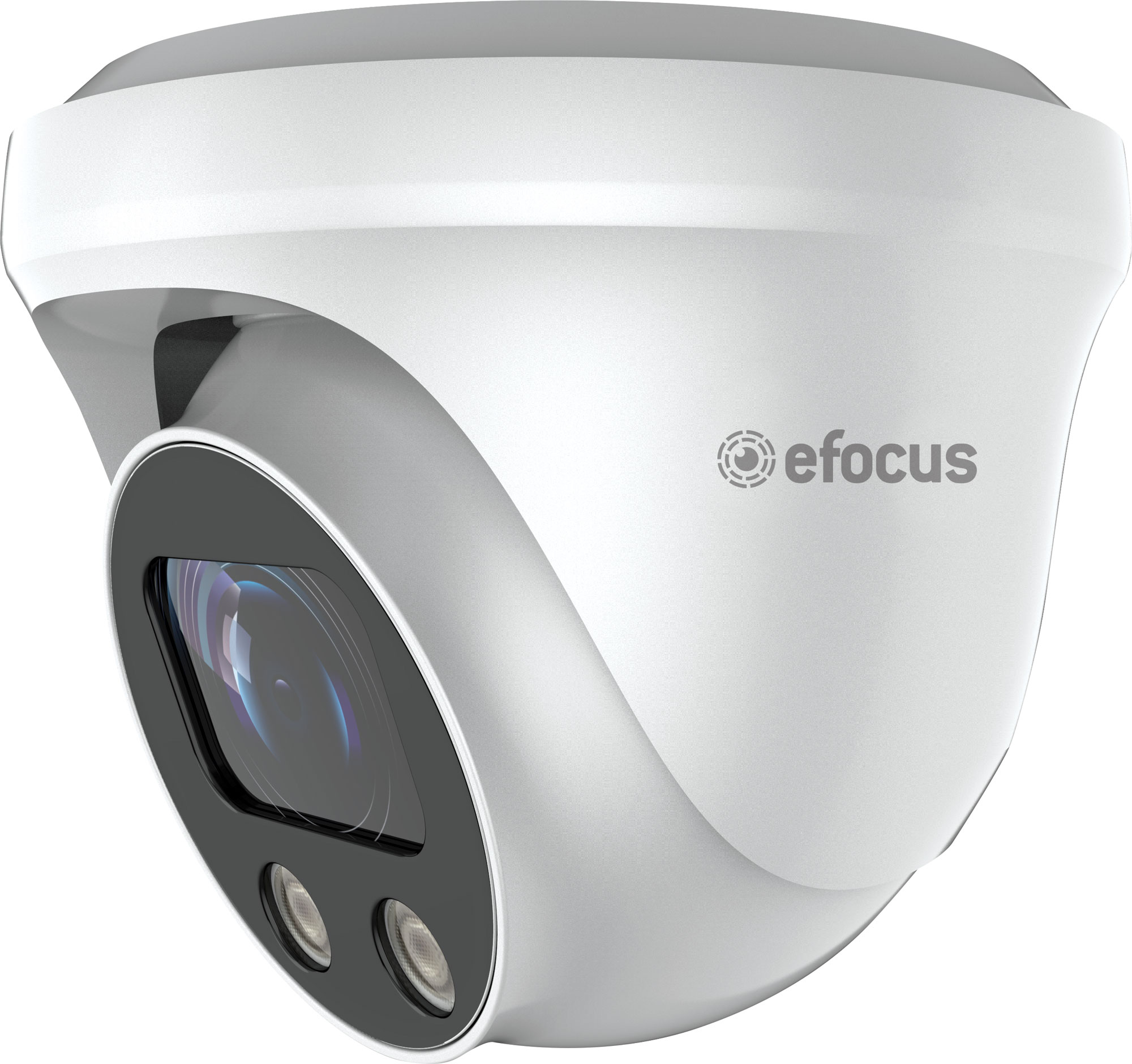

Vandal Resistant Vari-Focal IP66 Colour Dome Camera

Manufacturer: eFocus
SKU: S9128C
This Vandal Resistant Vari-Focal IP66 Colour Dome Camera has been specifically designed for installation in applications where damage resistance is paramount eg bus or train stations, concourses, carparks etc.
$171.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $171.82
3+ $159.09
6+ $144.55
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This Vandal Resistant Vari-Focal IP66 Colour Dome Camera has been specifically designed for installation in applications where damage resistance is paramount eg bus or train stations, concourses, carparks etc. Incorporates a super wide dynamic range sensor for high contrast installations. IR cut filter included for accurate colour reproduction during daylight operation.

This dome camera can be mounted to the wall using S9067 and surface mounted using S9065 - see accessories listed below

Features

  • Video Output Mode: AHD/TVI/CVI: 8M@15fps;
  • 1/2.8"SONY Starvis Back-illuminated CMOS sensor;
  • minimum Illumination:0.01Lux,
  • Infrared Distance:25m;
  • 2.7-13.5mm lens;
  • Support OSD Menu;
  • Support WDR;
  • Housing: Metal, IP67

Specifications

General

  • Model: CMLBHTC5005XESL
  • Video Output Mode:
  • AHD: 8M@15fps, 5M@20fps/12.5fps, 4MP@30fps/25fps/15fps; 2M@30fps/25fps; CVI: 8M@15fps/12.5fps, 4M/2M@30fps/25fps;
  • TVI: 8M@15fps/12.5fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps
  • Housing: Metal, IP67
  • Bracket: No
  • Operating Temperature: -10°C ~ +60°C RH95% Max
  • Storage Temperature: -20°C ~ +60°C RH95% Max
  • Power Source: DC12V±10%, 500mA
  • Weight: 900g
  • Dimensions: ¢128 x 108(H) mm

Camera

  • Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor
  • Image Resolution: 8M:3840*2160; 5M:2592*1944; 4M:2560*1440; 2M:1920*1080
  • TV System: PAL/NTSC
  • Electronic Shutter: Auto/Manual
  • Minimum Illumination: 0.01Lux
  • Scanning System: Progressive scan

Lens

  • Focus Length: 2.7-13.5mm
  • Focus Control: Auto
  • Lens Type: Motorised

Night Vision

  • IR Cut Filter: Yes
  • Infrared LED: 42µ x 2PCS
  • Infrared Distance: 25m
  • IR Power On/Off: AGC auto control

Camera Features

  • Starlight: Yes
  • Day/Night: Yes
  • OSD Menu: Yes
  • WDR: Yes
  • UTC: Yes
  • Noise Reduction: 3DNR
  • White Balance: Auto/Manual
  • Gain Control: Auto

Warranty & Returns

12 Months

We Offer 12 Months for this product
