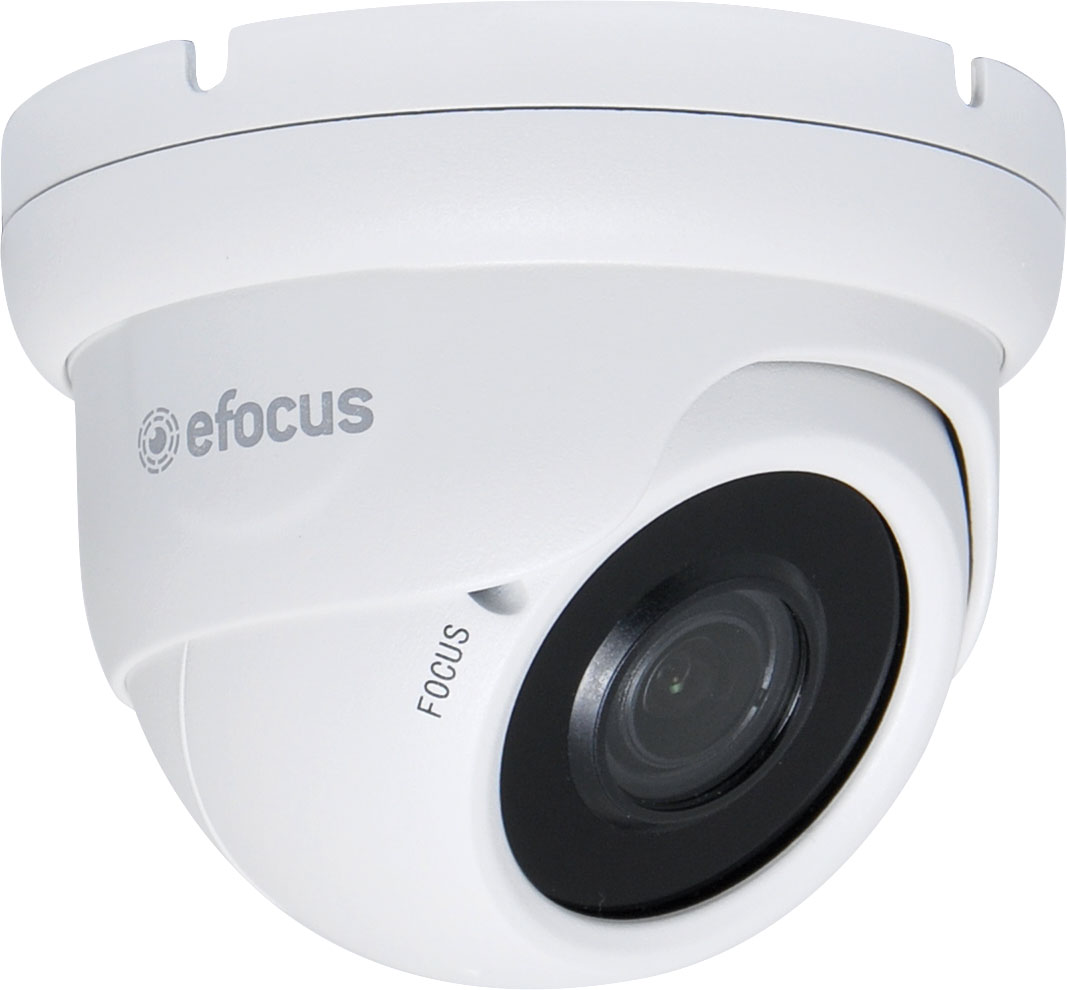

5MP Analog IR Dome Camera

Manufacturer: eFocus
SKU: S9123H
Surface mount dome cameras housed in vandal resistant aluminium housing with infra red illumination for night time viewing. High resolution Sony sensor produces clear crisp video signal.
$113.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $113.64
3+ $104.55
6+ $95.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This surface mount dome camera housed in vandal resistant aluminium housing with infra red illumination for night time viewing. High resolution Sony sensor produces clear crisp video signal. Lens has an adjustable focal length (2.8-12mm). Specifically designed for installation in applications where damage resistance is paramount eg bus or train stations, carparks etc. Operating temperature down to -10°C for cool room use.

The 1080P function of this camera is only compatible with 1080P AHD DVRs. Video output is selectable between AHD/TVI/CVI/CVBS via the cable toggle control.

This dome camera can be mounted to the wall using S9067 and surface mounted using S9065 - see accessories listed below

Specifications

Video Output Mode: AHD/TVI: 5M@20fps/12.5fps, 4M@30fps, 2M@30fps; CVI: 4M@30fps, 2M@30fps

Camera

  • Image Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor
  • Image Resolution: 5M:2592*1944 4M:2560*1440 2M:1920*1080
  • TV System: PAL/NTSC
  • Electronic Shutter: AUTO
  • Scanning System: Progressive Scan

Lens

  • Focal Length: 2.8-12mm
  • Focus Control: Manual
  • Lens Type: Varifocal

Night Vision

  • IR Cut Filter: YES
  • Infrared LED: 14µ x 24PCS
  • Infrared Distance: 30M
  • IR Status: AGC Auto Control

Camera Features

  • Day/Night: Yes
  • OSD Menu: Yes
  • WDR: DWDR
  • UTC: Yes
  • Noise Reduction: DNR
  • White Balance: Auto/Manual
  • Gain Control: Auto

General

  • Housing: Metal IP67
  • Bracket: No
  • Operation Temperature: -10? ~ +60? RH95% Max
  • Storage Temperature: -20? ~ +60? RH95% Max
  • Power Source: DC12V±10%, 750mA
  • Dimensions: ?119 x 98(H) mm
  • Weight: 800g

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
