12V 2.4Ghz Wireless Video Sender

Be the first to review this product
Designed for use in vehicle reversing systems. Incredibly easy to install, these compact units can wirelessly relay video signal from your reversing camera to your in-car dashboard monitor. Ideal for use with trailers & caravans where cabling would other
SKU: S8761
$52.27
Per ea
QuantityPrice
ea$52.27
4+$47.05
10+$41.77

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

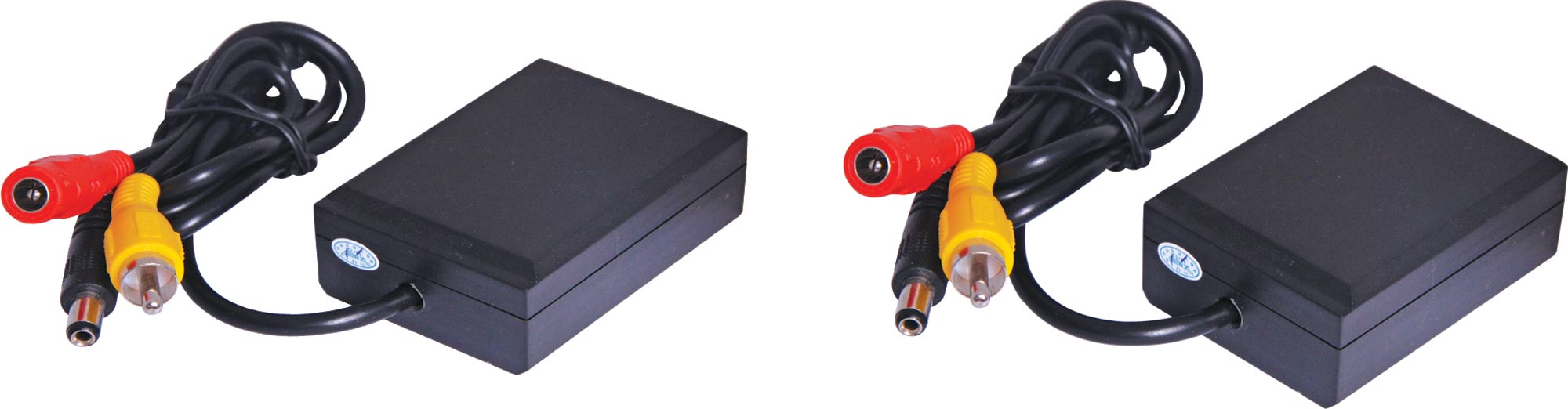

Designed for use in vehicle reversing systems. Incredibly easy to install, these compact units can wirelessly relay video signal from your reversing camera to your in-car dashboard monitor. Ideal for use with trailers & caravans where cabling would otherwise be impractical. 12V DC input relays to your camera for easy hook up. Size: 60 x 45 x 25mm.

Specifications

Receiver

  • Operating Voltage: 8 - 16 VDC
  • Power Consumption: Maximum 2 watts
  • Video Output: 0.8 ~ 1.2Vp-p/75 ohm
  • Audio Output: 1.8 ~ 2.2Vp-p/2K ohm
  • Receiving Sensitivity: -87dBm
  • Signal-to-Noise Ratio: 42dB
  • Dimension: 65 x 40 x 25mm

Transmitter

  • Operating Voltage: 8 - 16 VDC
  • Power Consumption: Maximum 2 watts
  • Video System: NTSC / PAL
  • Audio Input: Stereo
  • Transmit Power: 10mW
  • Transmit Distance: 100 meters
  • Dimension: 55 x 35 x 20mm

12 Months

We Offer 12 Months for this product
