New
RoHS

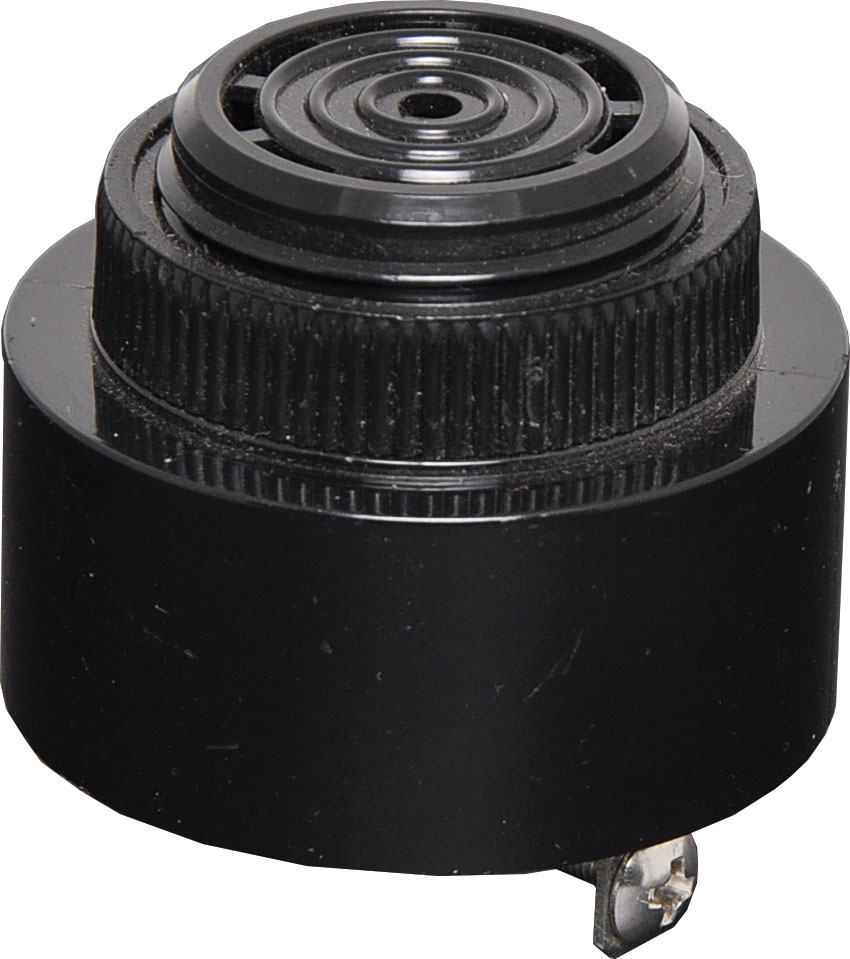

4-16V Continuous/Pulsating Tone Piezo Chassis Mount Buzzer

SKU: S6119A
Mounting hole 27.5mm. Screw terminals. With volume control shutter adjustment.
$13.59

All Prices Shown are (ex GST)
Bulk Pricing
ea $13.59
5+ $12.27
20+ $10.86
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Continuous/pulsating tone piezo chassis mount buzzer. 4-16V DC. Mounting hole 27.5mm. Screw terminals. With volume control shutter adjustment.

Note: Can be configured as either continuous or pulsating.

Specifications

SPL Output: 80dB @ 30cm

  • Supply Voltage: 4-16V DC
  • Current: 20mA @ 12V DC
  • Frequency: 2900Hz ±500Hz
  • Dimensions (mm): 43Ø x 33H

Warranty & Returns

12 Months

We Offer 12 Months for this product
