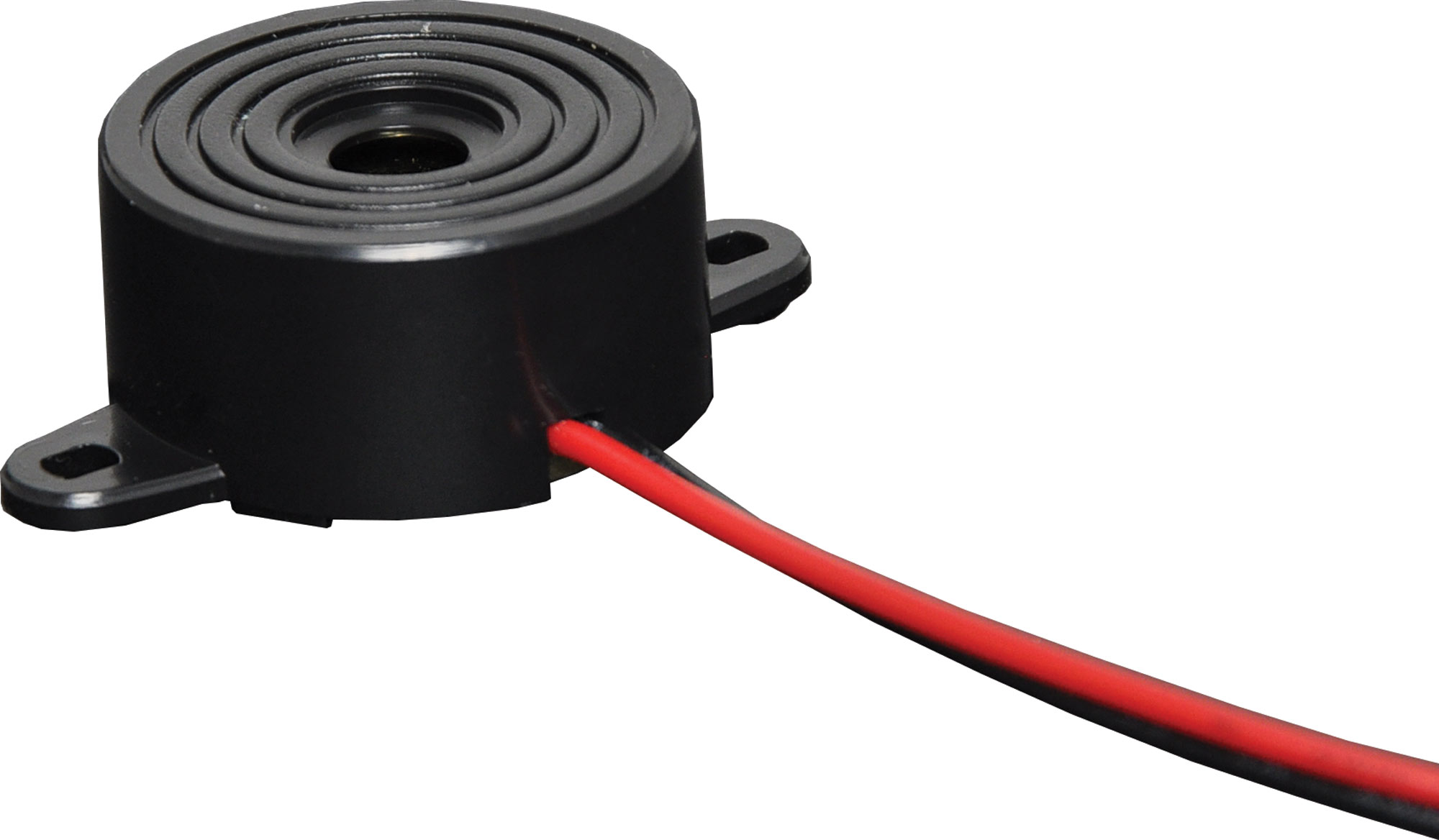

1.5-24V Piezo Chassis Mount Buzzer

SKU: S6109
Panel mount piezo buzzer. 30mm between mounting hole centres. 80mm lead. SPL output: 90dB @ 30cm Supply voltage: 1.5 - 24V dc Current: 10mA @ 12V dc Frequency: 5200Hz ± 500Hz Dimensions (mm): 22 x 12H
$3.23

All Prices Shown are (ex GST)
Bulk Pricing
ea $3.23
5+ $2.91
20+ $2.64
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Panel mount piezo buzzer. 30mm between mounting hole centres. 80mm lead.

Specifications

SPL Output: 90dB @ 30cm

  • Supply Voltage: 1.5 - 24V dc
  • Current: 10mA @ 12V dc
  • Frequency: 5200Hz ± 500Hz
  • Dimensions: 22Ø x 12H mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
