1.5-28V Piezo PCB Mount Buzzer

SKU: S6108

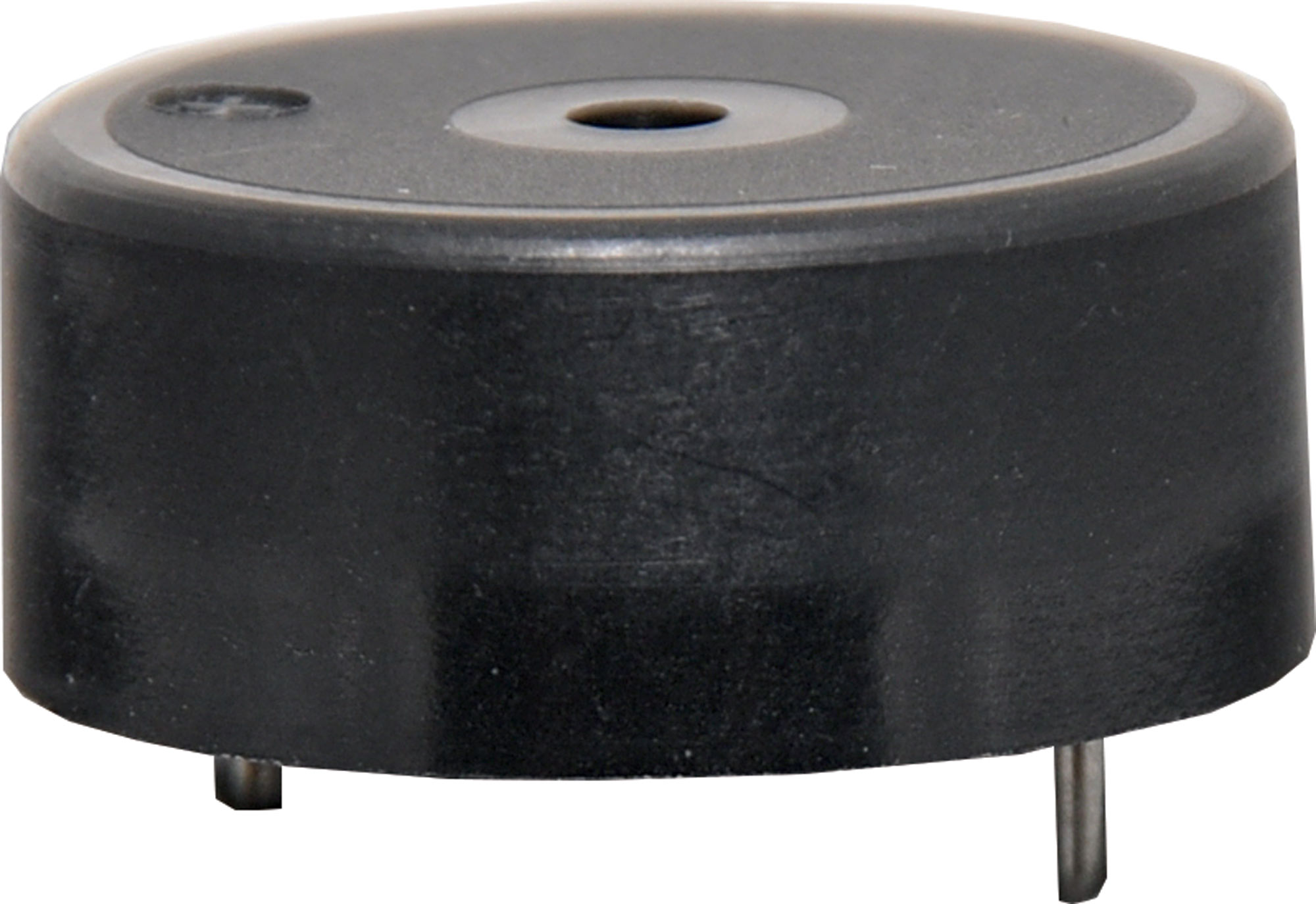

A PCB mount piezo buzzer with 85dB output at 30cm. 15mm pin spacing. 23mm housing diameter, 10mm high.
$3.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $3.41
5+ $3.09
20+ $2.73
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A PCB mount piezo buzzer with 85dB output at 30cm. 15mm pin spacing. 23mm housing diameter, 10mm high.

Specifications

PCB holes: 0.8mmØ

  • SPL output: 85dB @ 30cm
  • Supply voltage: 1.5 - 28V DC
  • Current: 10mA @ 12V DC
  • Frequency: 3500Hz ± 500Hz
  • Pin spacing: 15mm
  • Dimensions (mm): 23Ø x 10H

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
