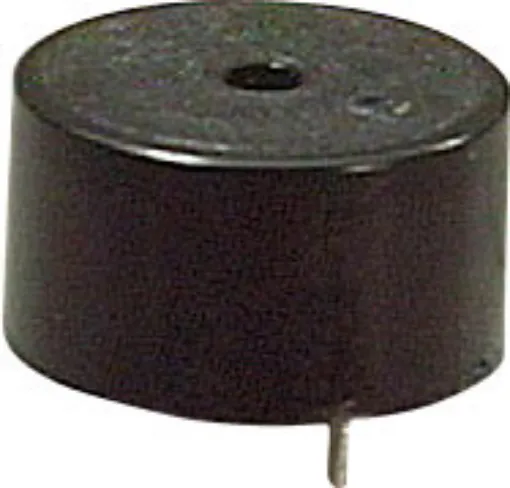

3-15V Mini Piezo High Output Sealed PCB Mount Buzzer

Be the first to review this product
Fully sealed PCB mount piezo. 8mm pin spacing.PCB holes 0.8mm
SKU: S6105
$4.86
Per ea
QuantityPrice
ea$4.86
5+$4.41
20+$3.91

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Fully sealed PCB mount piezo with sealed design. Powered by 3 to 15V DC. 8mm pin spacing, 14mm diameter. PCB holes 0.8mmØ

Specifications

SPL Output: 80dB @ 10cm

  • Supply Voltage: 3-16V DC
  • Current: 7mA @ 12V DC
  • Frequency: 4000Hz ±500Hz
  • Pin Spacing: 8mm
  • Dimensions: 14Ø x 7.5Hmm
  • PCB Hole Size: 0.8mm

12 Months

We Offer 12 Months for this product
