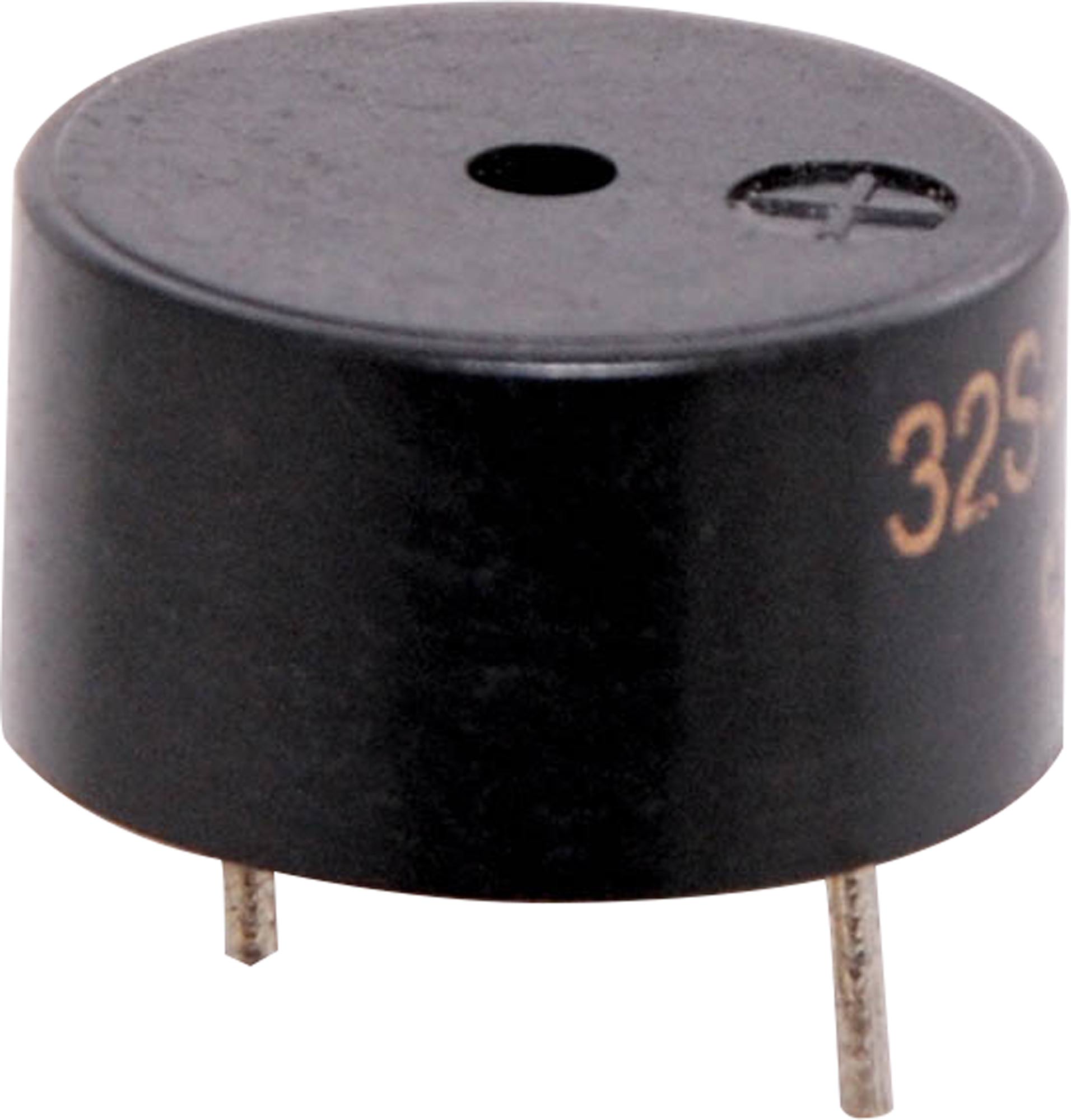

3-16V Mini Piezo Sealed PCB Mount Buzzer

SKU: S6104
Fully sealed PCB mount piezo. 7.6mm pin spacing.PCB holes 0.8mm.
$4.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $4.14
5+ $3.73
20+ $3.27
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Fully sealed PCB mount piezo buzzer. Powered by 3-16V DC. 7.6mm pin spacing. 14mm diameter. PCB holes 0.8mmØ.

Specifications

SPL Output: 80dB @ 10cm

  • Supply Voltage: 3-16V DC
  • Current: 7mA @ 12V DC
  • Frequency: 4000Hz ±500Hz
  • Pin Spacing: 7.6mm
  • Dimensions: 14Ø x 7.5Hmm
  • PCB Hole Size: 0.8mm

Warranty & Returns

12 Months

We Offer 12 Months for this product
