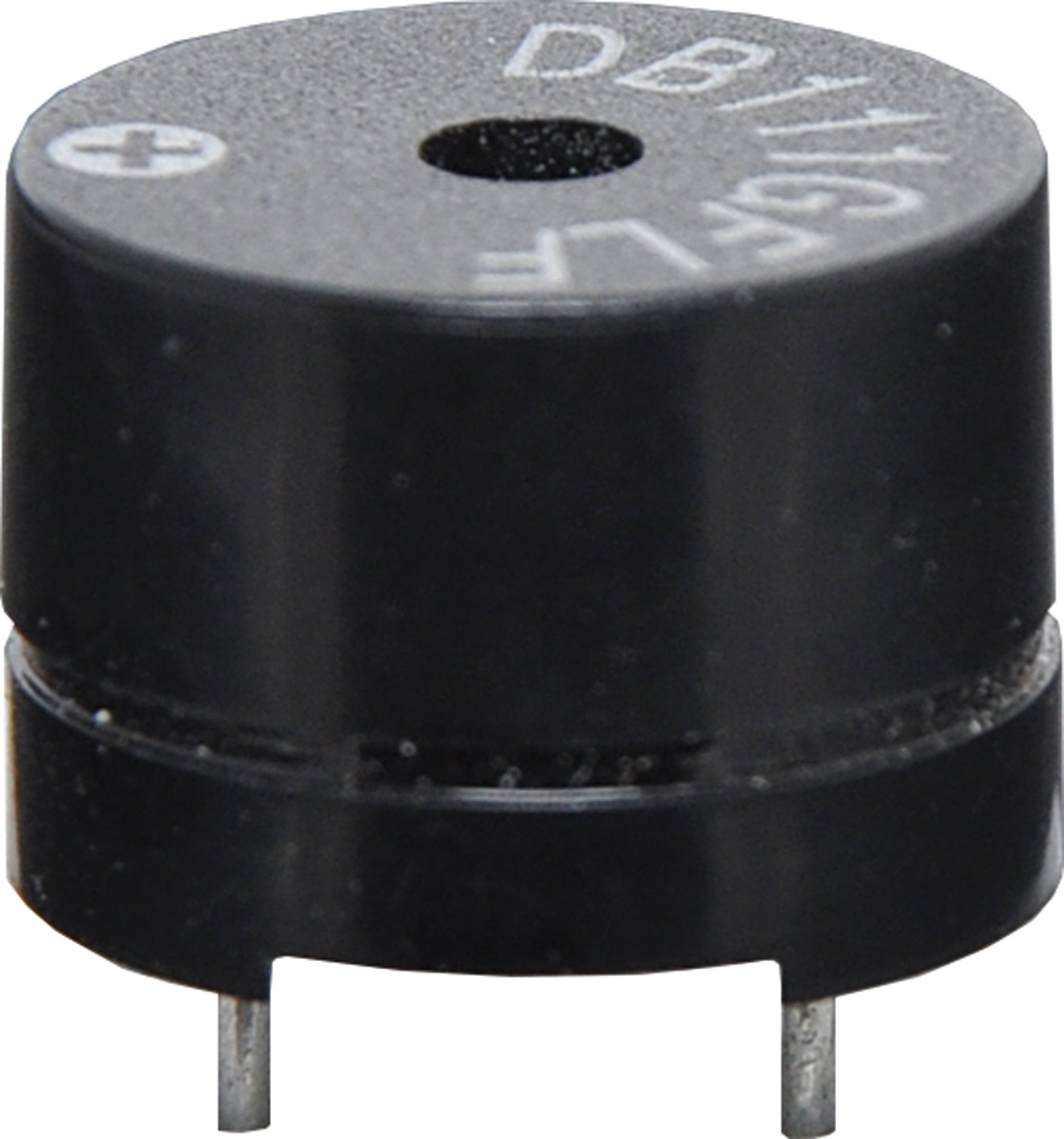

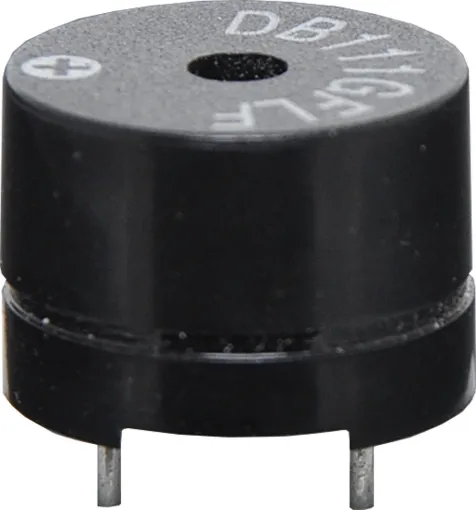

1-2V Mini Magnetic Transducer PCB Mount

SKU: S6090
Fully sealed PCB mount. 6.5 mm pin spacing. PCB holes 0.8mm. Requires 50% duty cycle square wave drive.
$1.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $1.41
5+ $1.32
20+ $1.14
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Fully sealed PCB mount magnetic transducer. 6.5 mm pin spacing. PCB holes 0.8mmØ. Requires 50% duty cycle square wave drive.

Specifications

SPL output: 85dB @ 10cm

  • Supply voltage: 1-2V square wave
  • Current: 30mA max
  • Frequency: 2048Hz
  • Coil impedance 40Ω
  • Coil resistance 16Ω ± 4.5Ω
  • Pin spacing: 6.5mm
  • Dimensions (mm): 12Ø x 8.5H

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
