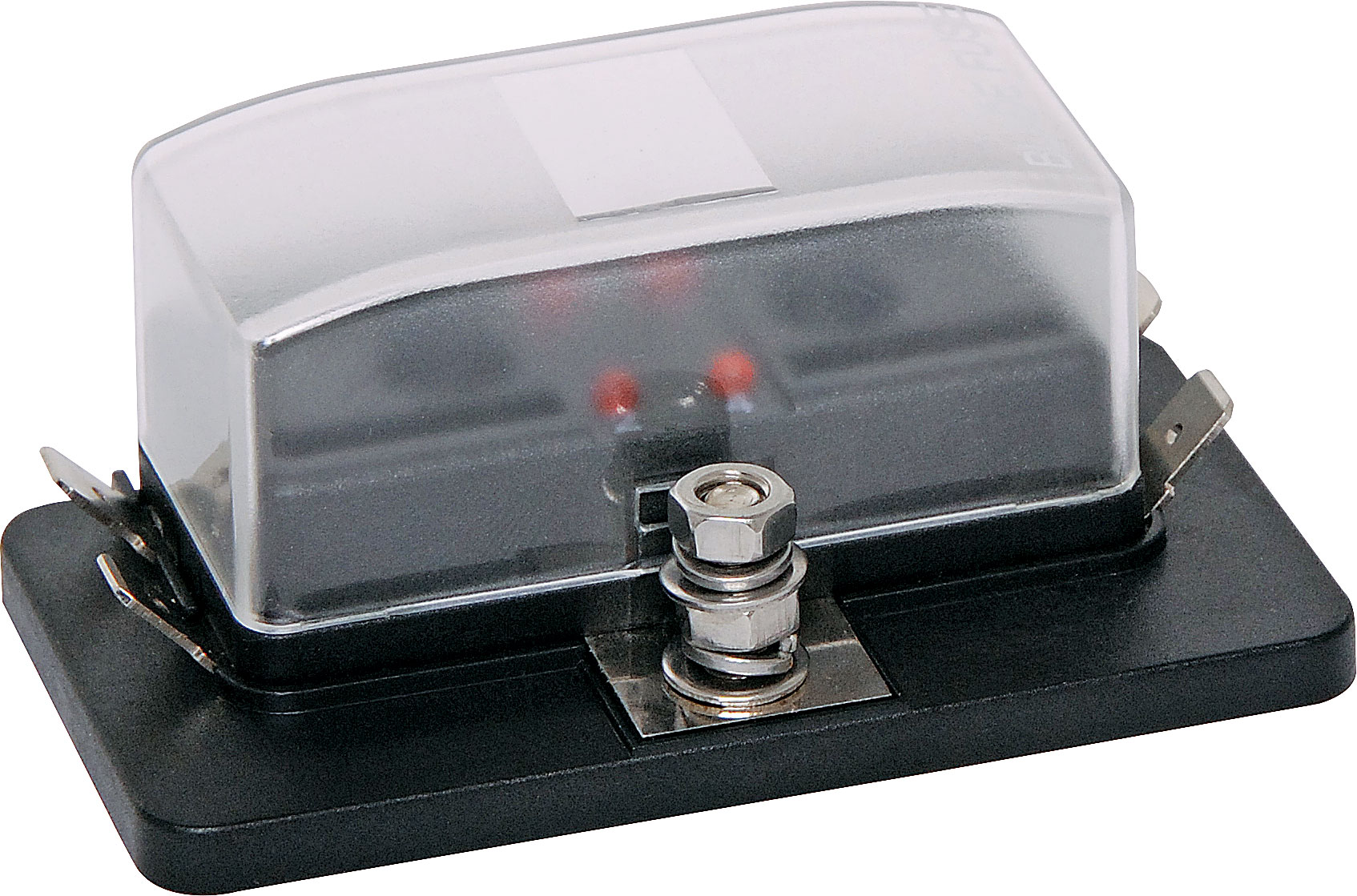

4 Way Automotive Blade Fuse Block Panel With LEDs

SKU: S6032
This panel / chassis mount fuse holder uses standard automotive blade fuses (18.7 x 19.1mm in size with 5mm blades). 150A screw terminal input and 6.3mm spade outputs (25A per circuit max). 32V DC max. Not suitable for use with S 5540 series resettable breakers. Size: 47W x 86L x 36Hmm
$31.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $31.36
3+ $28.14
6+ $25.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This panel / chassis mount fuse holder uses standard automotive blade fuses (18.7 x 19.1mm in size with 5mm blades). 150A screw terminal input and 6.3mm spade outputs (25A per circuit max). 32V DC max. Size: 47W x 86L x 36H mm.

Please Note: Not suitable for use with S5540 series resettable breakers.

Features

  • Uses standard automotive blade fuses

Specifications

Max Voltage: 32V DC

  • Dimensions: 47W x 86L x 36H mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
