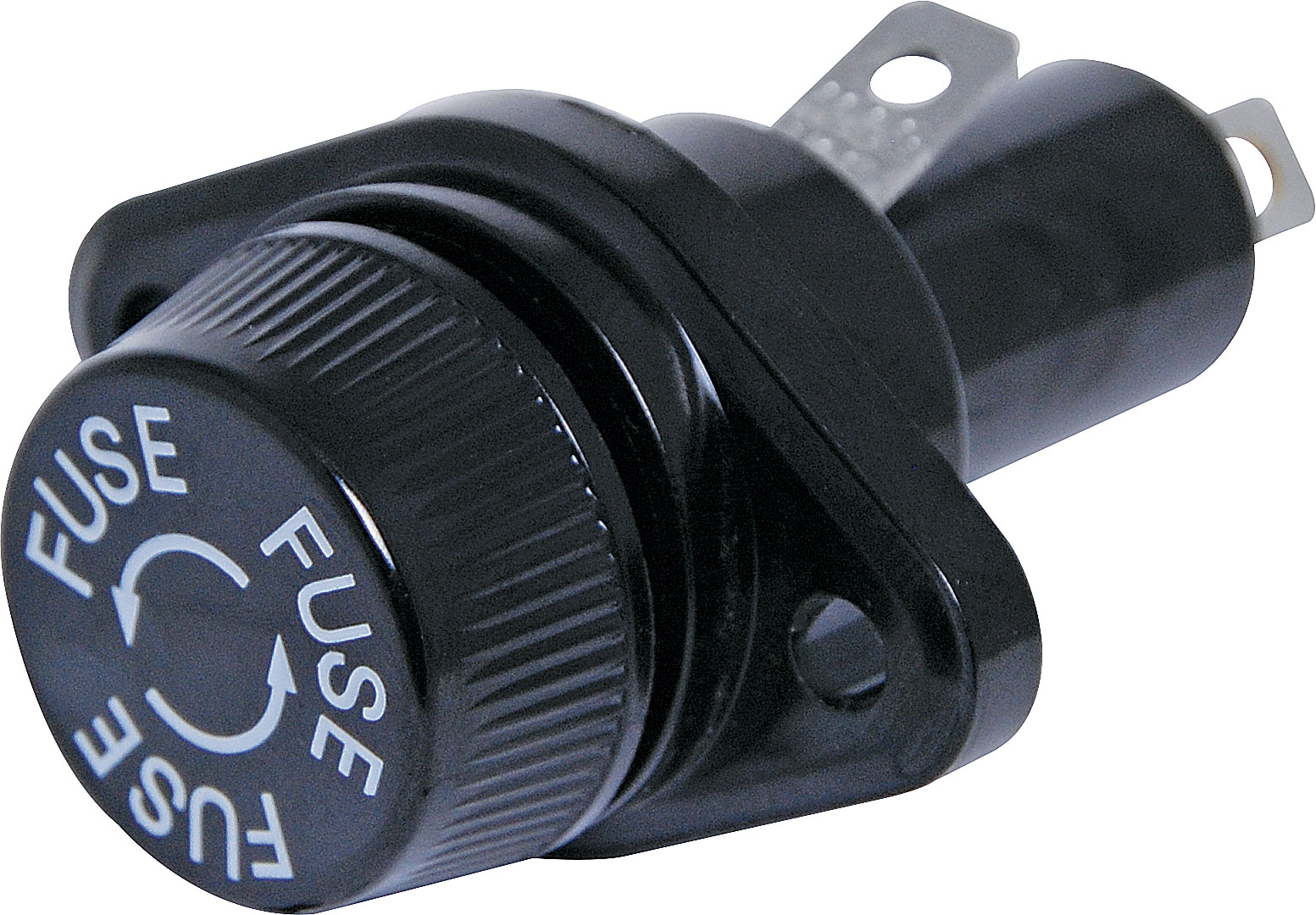

5AG 30A Chassis Mount Fuse Holder

SKU: S6030
Panel mount. Mounting hole 22mm. Bolt hole centres 34 mm. Rated to 30 amps at 250V AC. Uses 10mm x 37mm 5AG fuses. UL Approved.
$4.32

All Prices Shown are (ex GST)
Bulk Pricing
ea $4.32
10+ $3.91
25+ $3.45
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Panel mount. Mounting hole Ø 22mm. Bolt hole centres 34 mm. Rated to 30 amps at 250V AC. Uses 10mm x 37mm 5AG fuses. UL Approved.

Specifications

Rating: 30A 600V

  • Insulating Resistance: 500V DC 100M Min
  • Dielectric Strength: 3000V AC 1 Minute
  • Fuse Size: Ø10.31 x 38.1mm ±0.8mm (5AG)

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
