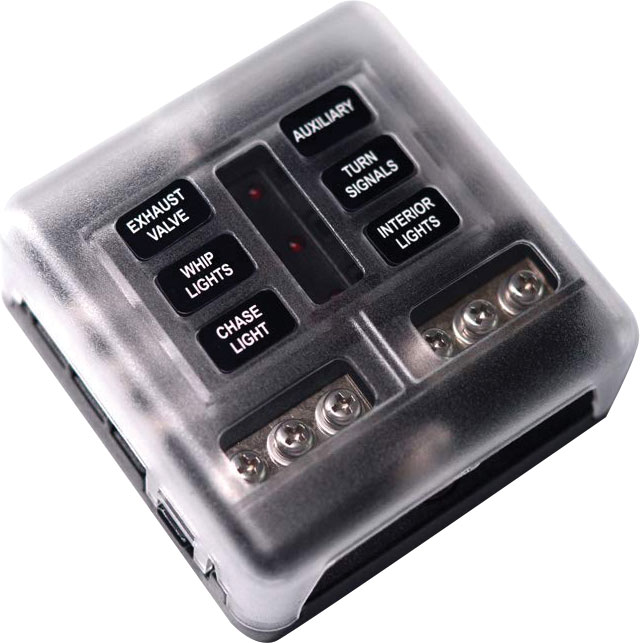

Blade Fuse Panel 6 Way With LED

SKU: S6029
Uses standard automotive type blade fuses. Dedicated earth terminals for each circuit, plus 100A rated M8 negative & positive terminals. Size: 88W x 88D x 36Hmm
$27.23

All Prices Shown are (ex GST)

Bulk Pricing
ea $27.23
2+ $24.50
4+ $21.77
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Uses standard automotive type blade fuses. Dedicated earth terminals for each circuit, plus 100A rated negative & positive terminals. Size: 88W x 88D x 36Hmm. The panel comes with a variety of labels for users to customise their fuse panel to their liking.

Please Note: Not suitable for use with S5540 resettable breakers.

Note: Fuse has been used for photographic purposes and is not included.

Features

  • Dedicated earth terminals
  • Labels for customisation
  • Red LED Indicates when fuse is broken

Specifications

Main Line

  • Terminal Rating: M5 threaded studs (100A 32V DC. max)
  • Wire Size: #4-6AWG

Single Line

  • Terminal Rating: M4 threaded studs (30A 32V DC. max)
  • Wire Size: #12-16AWG

General

  • Current Rating: 100A
  • Dimensions: 88W x 88D x 36H mm
