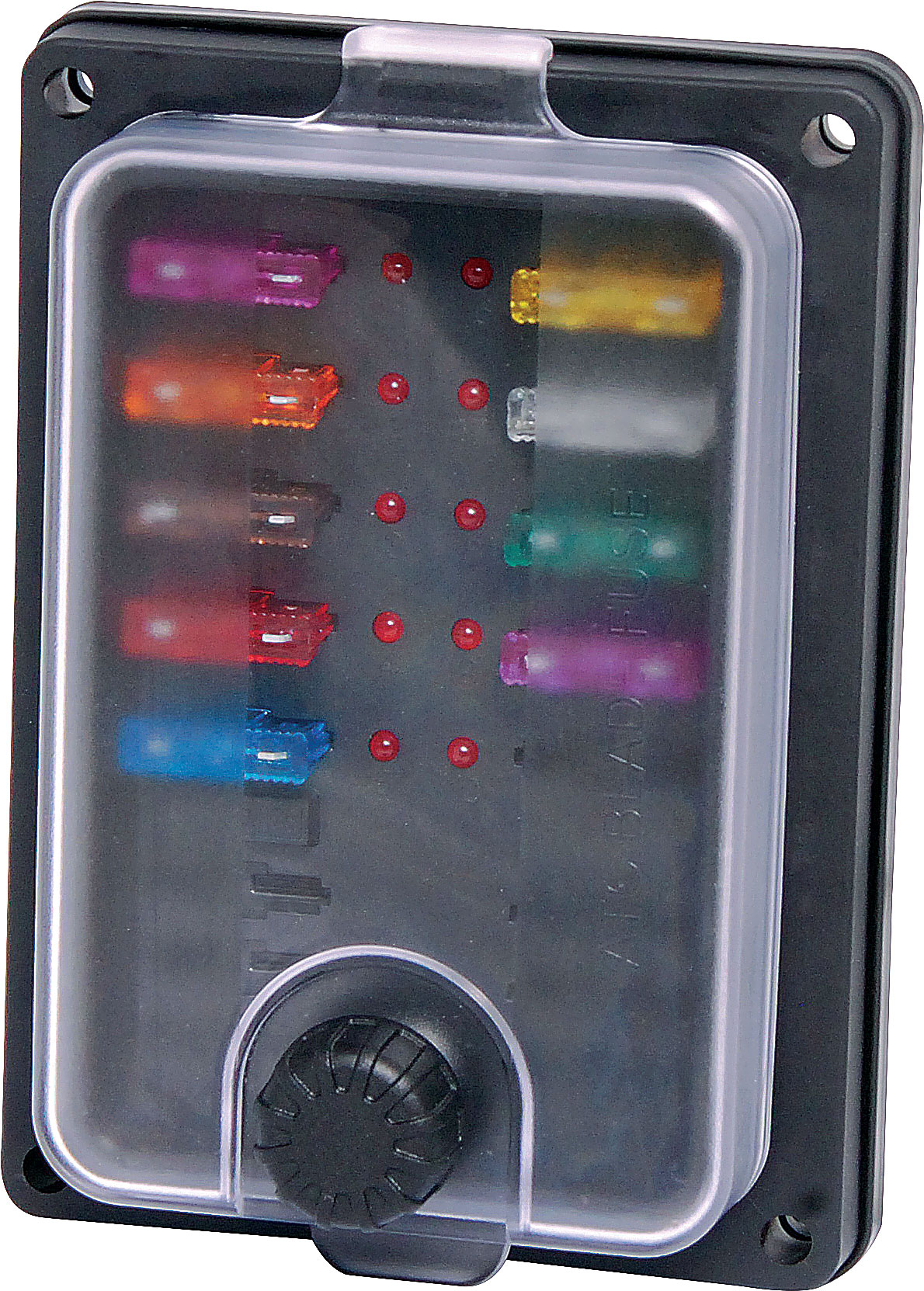

10 Way IP65 Panel / Chassis Mount Blade Fuse Holder

SKU: S6026
This panel mount automotive blade fuse block uses standard automotive type blade fuses (18.7 x 19.1mm in size with 5mm blades). Fitted with weatherproof cover & LED indicator for each circuit. Base is fitted with 6.4mm spade terminals & rubber gasket to prevent water ingress. Max 25A @ 32VDC per circuit.
$41.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $41.14
3+ $38.64
6+ $36.32
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This panel mount automotive blade fuse block uses standard automotive type blade fuses (18.7 x 19.1mm in size with 5mm blades). Ideal for use in off road vehicles, marine and caravans. Fitted with weatherproof cover & LED indicator for each circuit. Base is fitted with 6.4mm spade terminals & rubber gasket to prevent water ingress. Max 25A @ 32VDC per circuit. Size: 121H x 87W x 48D (inc terminals).

Note: Not suitable for use with S5540 series blade breakers.

Note: Fuses used for photographic purposes and are not included.

Features

  • 6.4mm terminals
  • Rubber gasket
  • Weatherproof cover
  • LED indicator

Specifications

Max Voltage: 32V DC

  • Dimensions: 121H x 87W x 48D (inc terminals).

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
