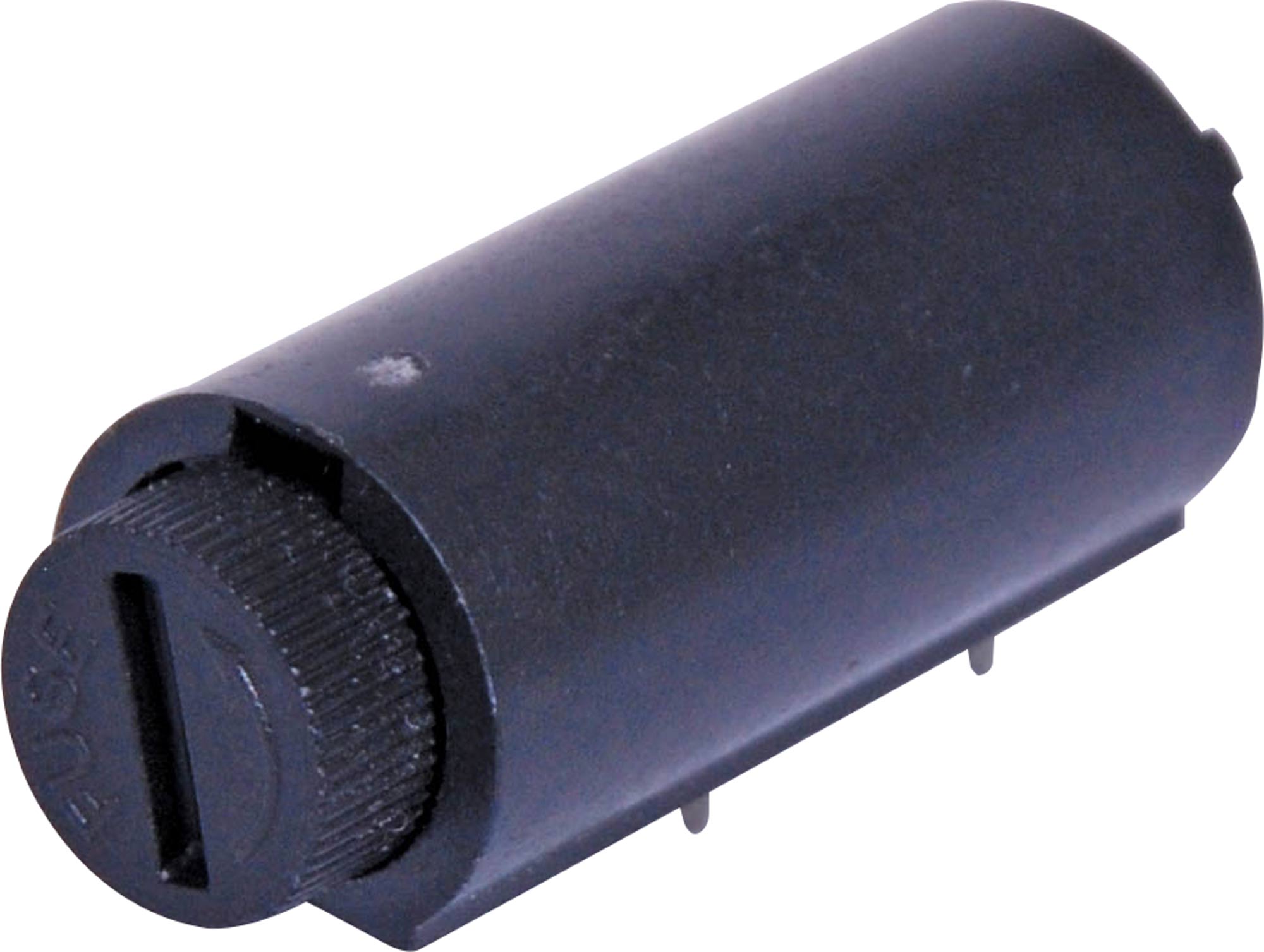

M205 10A Horizontal PCB Mount Fuse Holder

SKU: S5987
PCB mount with screw cover. 10 Amps at 250V AC. 1.3mm PC pins at 10mm between centres.
$3.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $3.36
10+ $2.73
25+ $2.41
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

PCB mount with bayonet cover.
Rated Current: 10A 250V.
Insulation Resistance：100MOhm Min (at 500V DC)
Contact Resistance: 5mOhm (at 1A DC)
Dielectric Strength for 60 Seconds: AC 1000V Min
Insulating Body: Flame retarding UL 94 V0 thermoplastic material
Storage conditions: The recommended storage temperature 25℃(+5℃, -10℃), relative humidity 40%RH(+20%RH, -20%RH)

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
