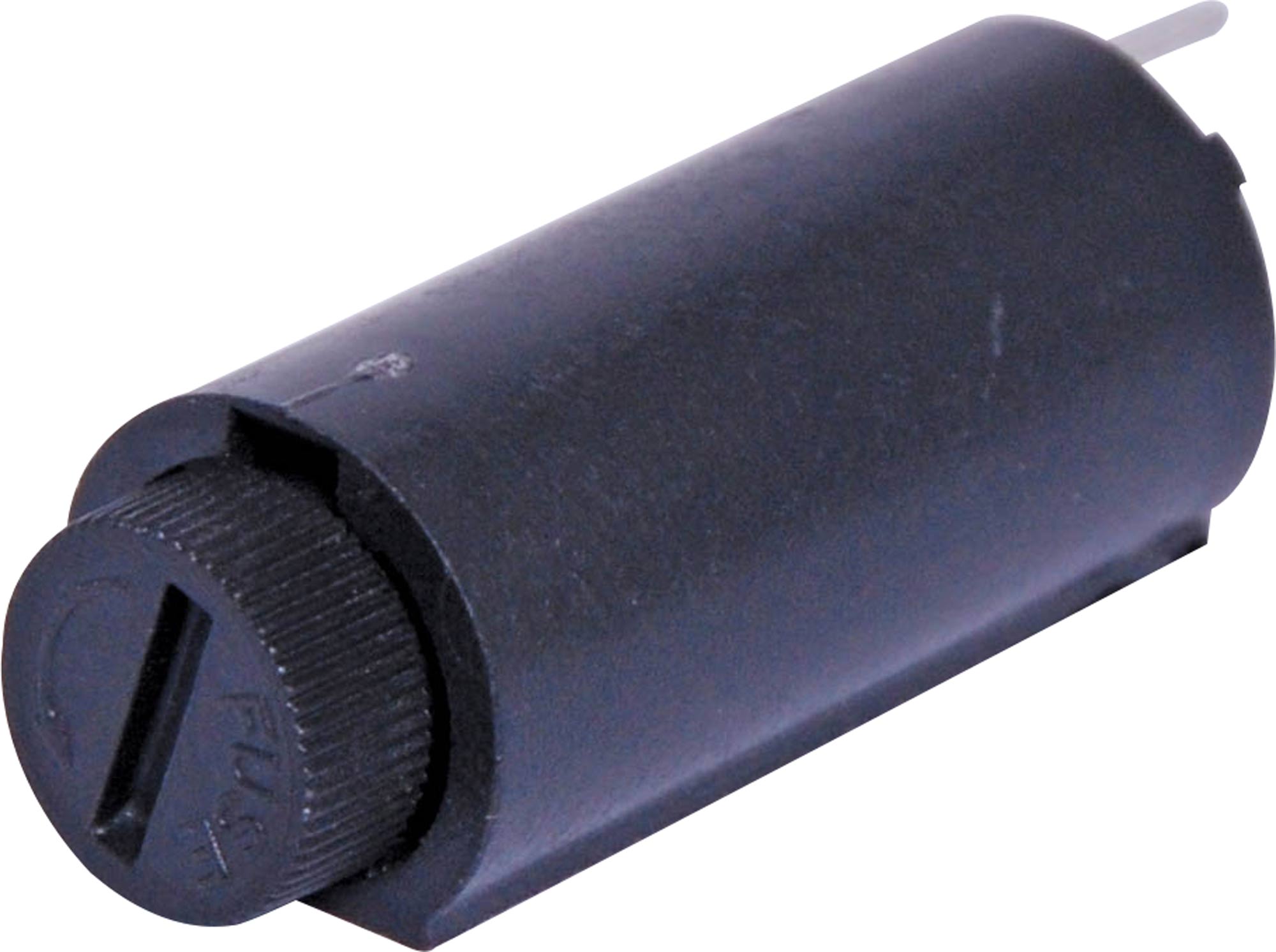

M205 10A Vertical PCB Mount Fuse Holder

Be the first to review this product
PCB mount with screw cover. 10 Amps at 250V AC. 1.3mm PC pins at 10mm between centres.
SKU: S5986
$3.36
Per ea
QuantityPrice
ea$3.36
10+$2.73
25+$2.41

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

PCB mount with bayonet cover.
Rated Current: 10A 250V.
Insulation Resistance：100MOhm Min (at 500V DC)
Contact Resistance: 5mOhm (at 1A DC)
Dielectric Strength for 60 Seconds: AC 1000V Min
Insulating Body: Flame retarding UL 94 V0 thermoplastic material
Storage conditions: The recommended storage temperature 25℃(+5℃, -10℃), relative humidity 40%RH(+20%RH, -20%RH)

12 Months

We Offer 12 Months for this product
