50A Surface Mount IP67 Waterproof Circuit Breaker

Be the first to review this product
High current weatherproof circuit breakers with manual reset switch. M6 terminal bolts.
SKU: S5885
$40.86
Per ea
QuantityPrice
ea$40.86
4+$36.32
10+$35.68

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

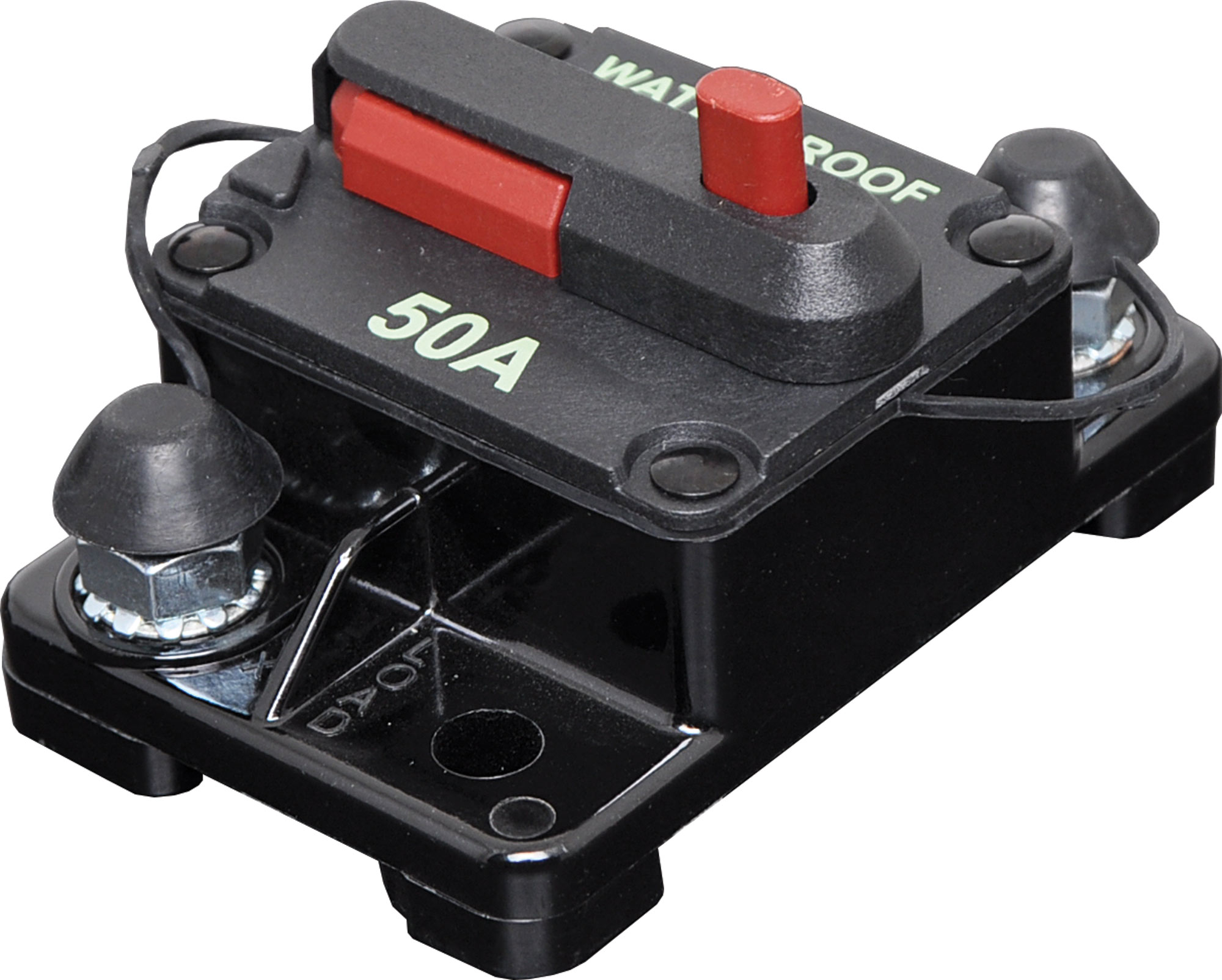

This 50A high current surface mount circuit breaker is ideal for use in 12V or 24V DC power systems. It features a IP67 weatherproof casing with M6 terminal bolts for connection to power cabling. The breaker can be easily reset using the red lever switch. Typically used in auxiliary and accessory circuits in automotive and marine applications. Also suitable for battery charger designs. Tested to SAE J1625 & SAE J1171 (ignition protected).

Specifications

Max. Voltage: 42V DC

  • Interrupt Rating: 3000A @ 30V DC
  • Operating Temperature: -32°C to 82°C
  • Testing: SAE J1625, SAE J1171 (ignition protected)
  • Material: UL94V-0
  • IP Rating: IP67
  • RoHS approved
  • UL approved 50A @ 32V DC
  • External Dimensions: 70 x 50 x 35mm

12 Months

We Offer 12 Months for this product
