40A Surface Mount IP67 Waterproof Circuit Breaker

SKU: S5884
40A high current weatherproof circuit breakers with manual reset switch. M6 terminal bolts.
$45.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $45.41
4+ $40.86
10+ $36.32
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

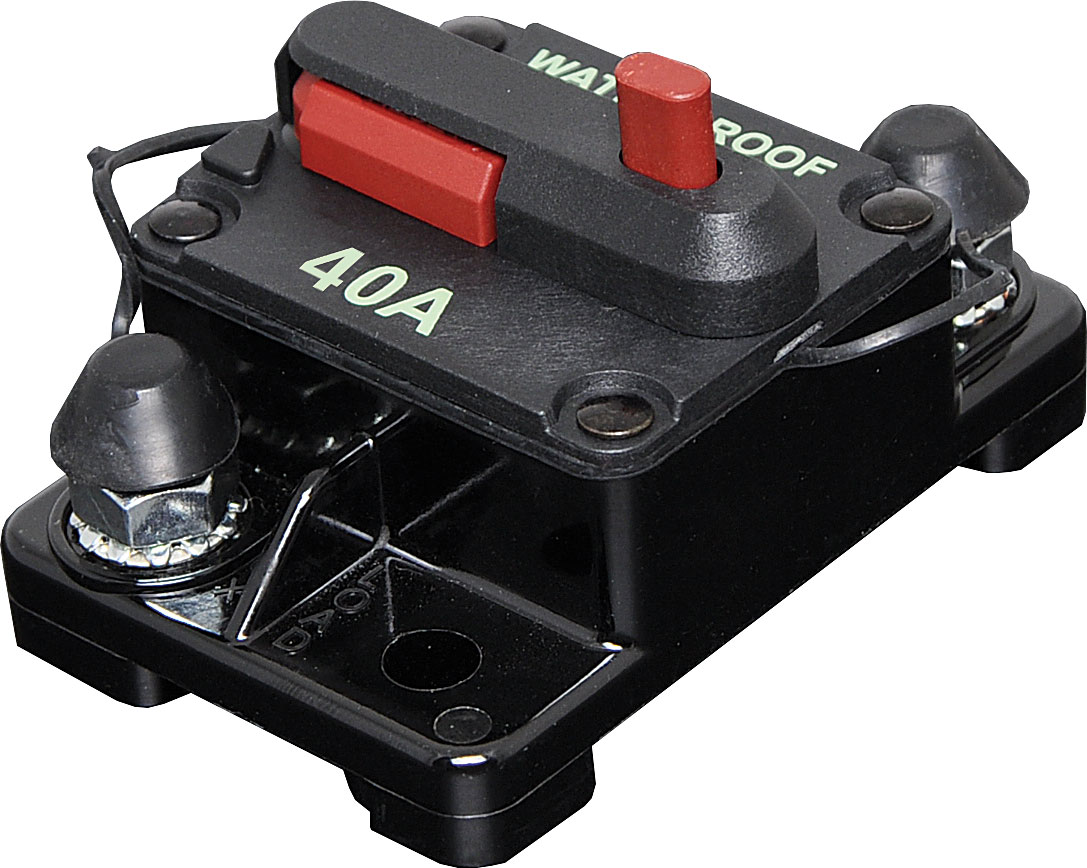

This 40A high current surface mount circuit breaker is ideal for use in 12V or 24V DC power systems. It features a IP67 weatherproof casing with M6 terminal bolts for connection to power cabling. The breaker can be easily reset using the red lever switch. Typically used in auxiliary and accessory circuits in automotive and marine applications. Also suitable for battery charger designs. Tested to SAE J1625 & SAE J1171 (ignition protected).

Specifications

Max. Voltage: 42V DC

  • Interrupt Rating: 3000A @ 30V DC
  • Operating Temperature: -32°C to 82°C
  • Testing: SAE J1625, SAE J1171 (ignition protected)
  • Material: UL94V-0
  • IP Rating: IP67
  • RoHS approved
  • UL approved 40A @ 32V DC
  • External Dimensions: 70 x 50 x 35mm

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
