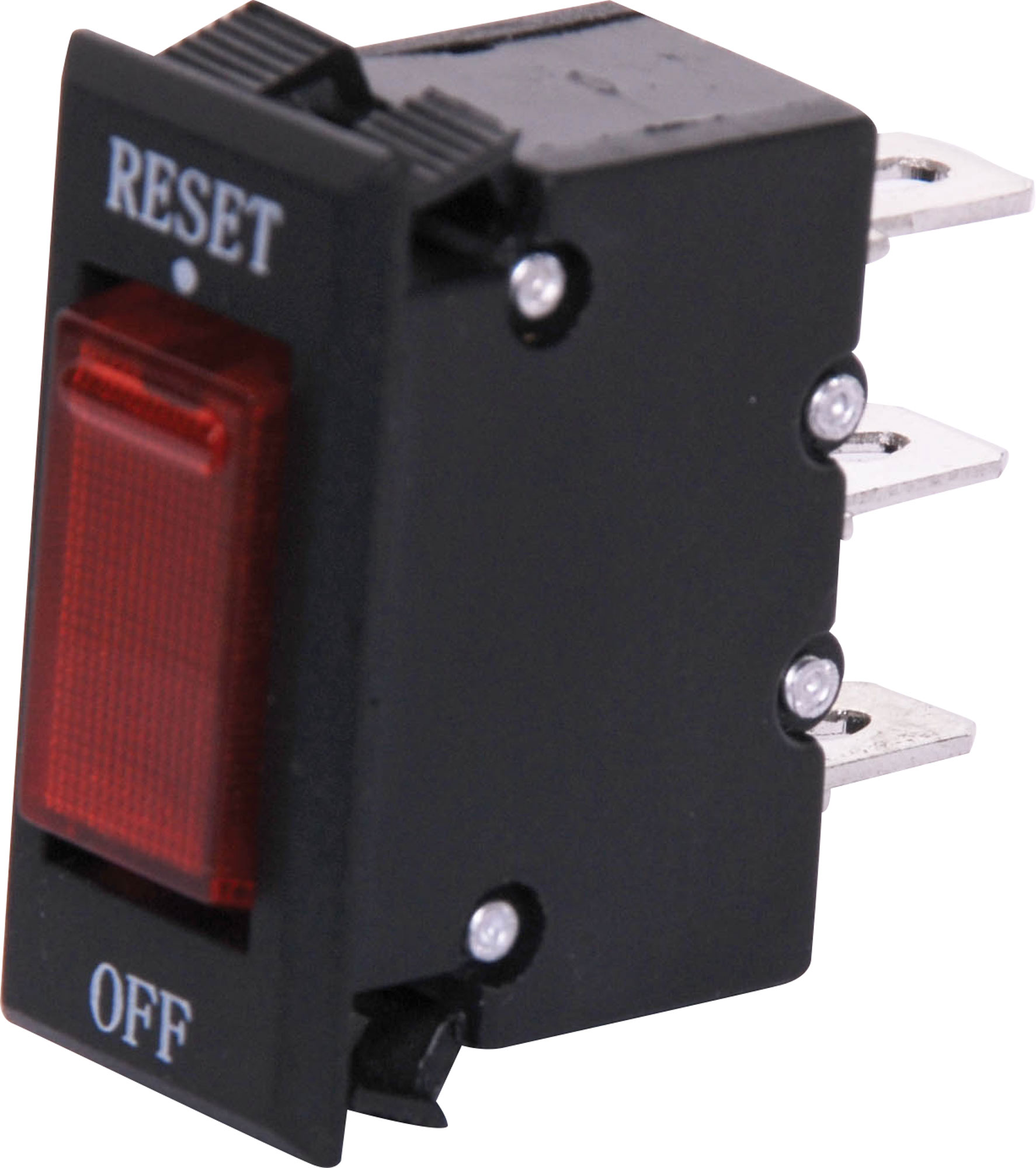

10A 250V Switch Circuit Breaker

SKU: S5590
Combination illuminated switch and circuit breaker all in one compact package.
$8.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $8.14
5+ $7.50
20+ $6.59
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This 10A illuminated panel mount circuit breaker is ideal for use in automotive circuits (both 12V and 24V DC systems) where you require the function of a circuit breaker and ON/OFF switch in the same compact package. These are easy to build into panels or banks of switches (at different current ratings if desired - 3A, 5A, 8A and 15A models also available). If any circuit exceeds the rated current it will trip the breaker, which can be reset using the switch after the fault is removed.


Dimensions:

Specifications

Hold Current: 100% load indefinitely

  • Trip Current: Within 1 hr @ 135% load
  • Within 1 minute @ 200% load
  • Neon Voltage: 250V AC
  • Max. Voltage: 250V AC or 50V DC
  • Panel Cutout: 13.35mm x 28.5mm
  • Dimensions: 33H x 32L x 15.5W mm

All specifications at 25°C.

Warranty & Returns

12 Months

We Offer 12 Months for this product
