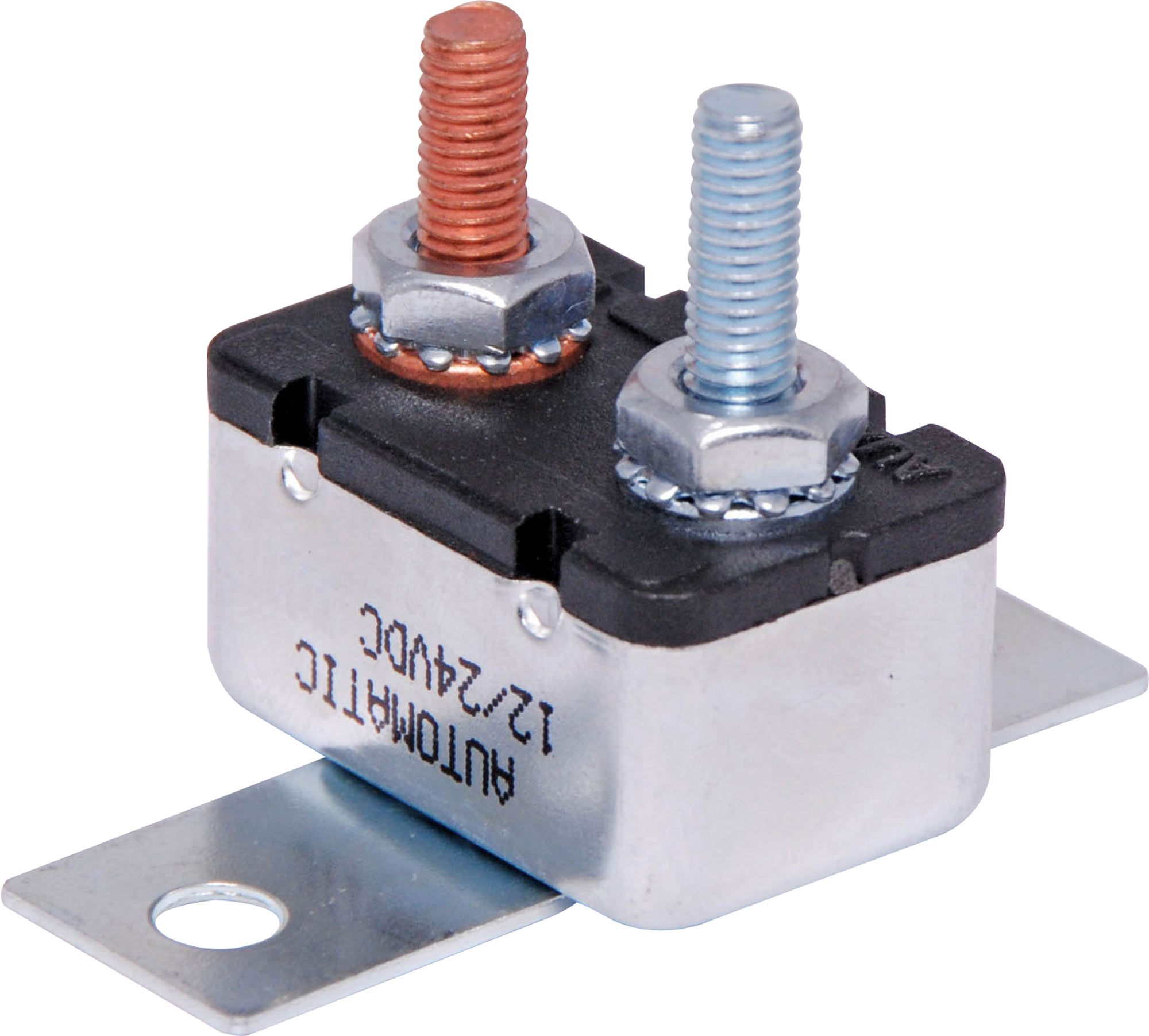

10A 12V Stud Type Surface Mount Circuit Breaker

Be the first to review this product
Single pole stud type 10A DC circuit breaker with surface mounting tabs. Ideal for use in vehicles. Auto reset. Current ratings at 12V/24V DC. Meets SAE J553 standard (Type 1). M10 x 32mm stud connection. Includes hardware.
SKU: S5567
$9.05
Per ea
QuantityPrice
ea$9.05
5+$8.14
20+$7.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Single pole stud type 10A DC circuit breaker with surface mounting tabs. Ideal for use in vehicles. Auto reset. Current ratings at 12V/24V DC. Meets SAE J553 standard. #10 - 32 UNF stud connection (Approx 4.75mm diameter). Includes hardware.

Specifications

Type: Automatic reset

  • Terminals: 2 x #10 - 32 UNF stud.
  • Rating: 10A @ 12/24V DC.
  • Operating temperature: -23°C to 65°C
  • Application: Battery chargers, vehicles.
  • Test compliance: SAE standard J553 (type 1)

12 Months

We Offer 12 Months for this product
