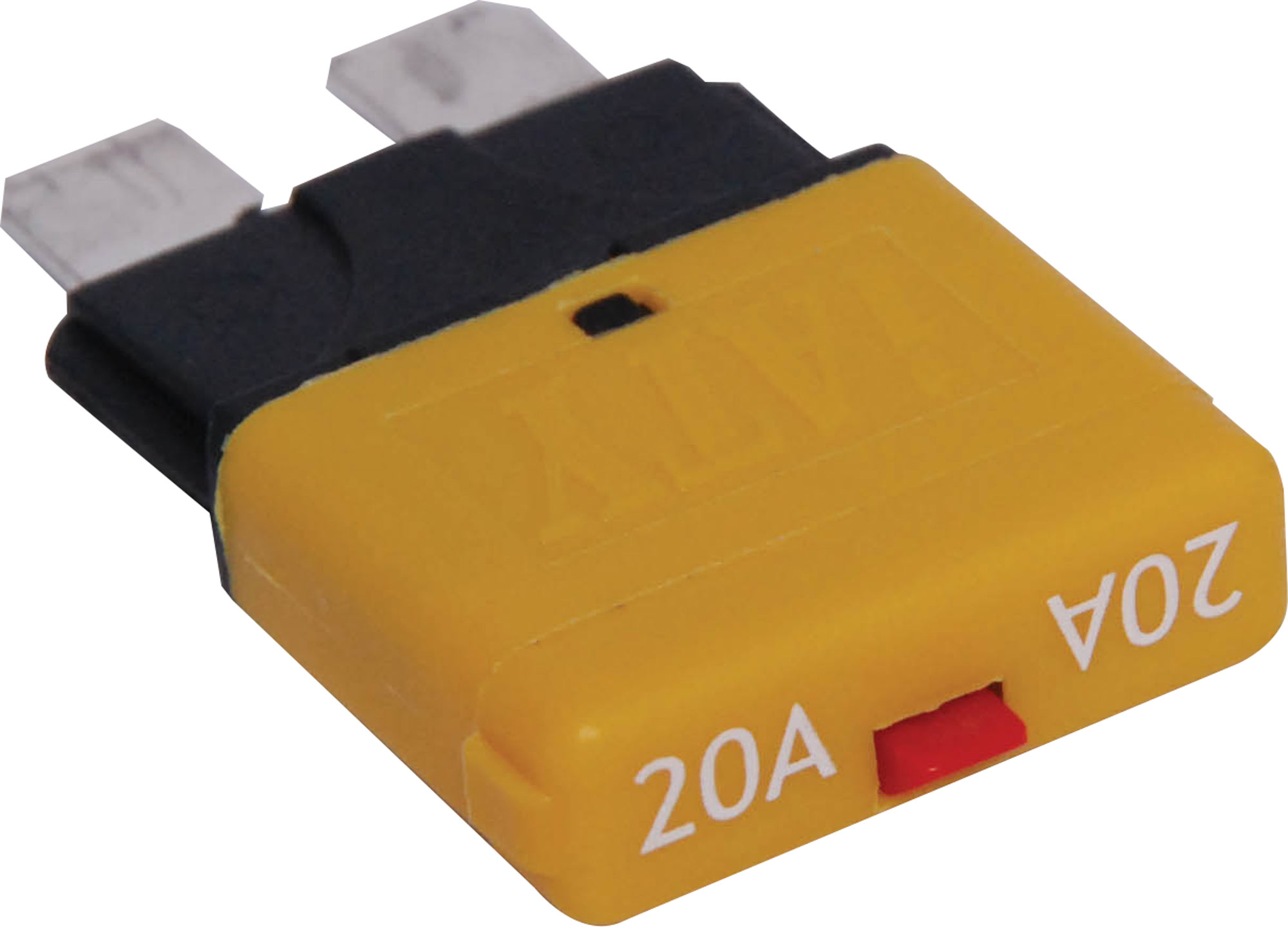

20A 12V-24V DC Circuit Breaker Blade Fuse Type

SKU: S5546
Suits most automotive blade fuse holders. Resettable, 5mm blades.
$7.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $7.27
5+ $6.32
20+ $5.23
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

A resettable blade fuse style 20A circuit breaker suitable for 12V or 24V DC power systems. Suits most automotive blade fuse holders.
A drop in replacement for automative blade fuses. Max voltage 28V DC. Resettable 5mm blades.

Note: Due to the added height, these fuse/breakers are not suitable for use in some covered fuse blocks (Altronics S6024 or S6026)


Dimensions



Trip Time vs % of Rated Current

Specifications

Rating: 20A, 28V DC.

  • Colour: Yellow
  • Interrupt Rating: 200A @ 28V DC.
  • Operating Temperature Rating: -40°C to 85°C
  • Storage Temperature Rating: -40°C to 125°C
  • Testing Standard: SAE J553

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
