5A 12V-24V DC Circuit Breaker Blade Fuse

Be the first to review this product
Suits most automotive blade fuse holders. Resettable, 5mm blades.
SKU: S5540
$7.27
Per ea
QuantityPrice
ea$7.27
5+$6.32
20+$5.23

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

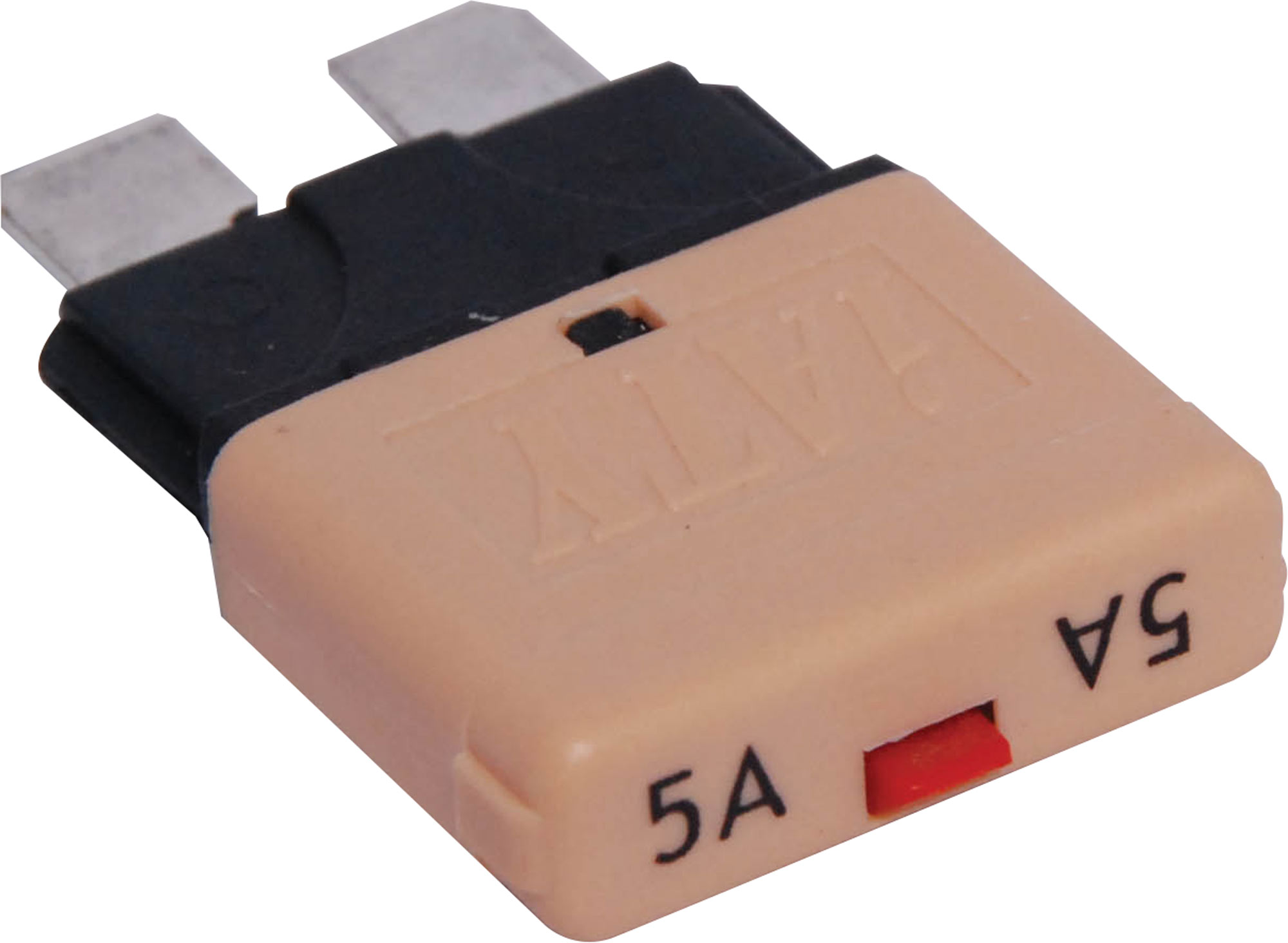

A resettable blade fuse style 5A circuit breaker suitable for 12V or 24V DC power systems. Suits most automotive blade fuse holders.
A drop in replacement for automative blade fuses. Max voltage 28V DC. Resettable 5mm blades.

Note: Due to the added height, these fuse/breakers are not suitable for use in some covered fuse blocks (Altronics S6024 or S6026)


Dimensions:



Trip Time vs % of Rated Current

Specifications

Rating: 5A, 28V DC.

  • Colour: Light Brown
  • Interrupt Rating: 100A @ 28V DC.
  • Operating Temperature Rating: -40°C to 85°C
  • Storage Temperature Rating: -40°C to 125°C
  • Testing Standard: SAE J553

12 Months
