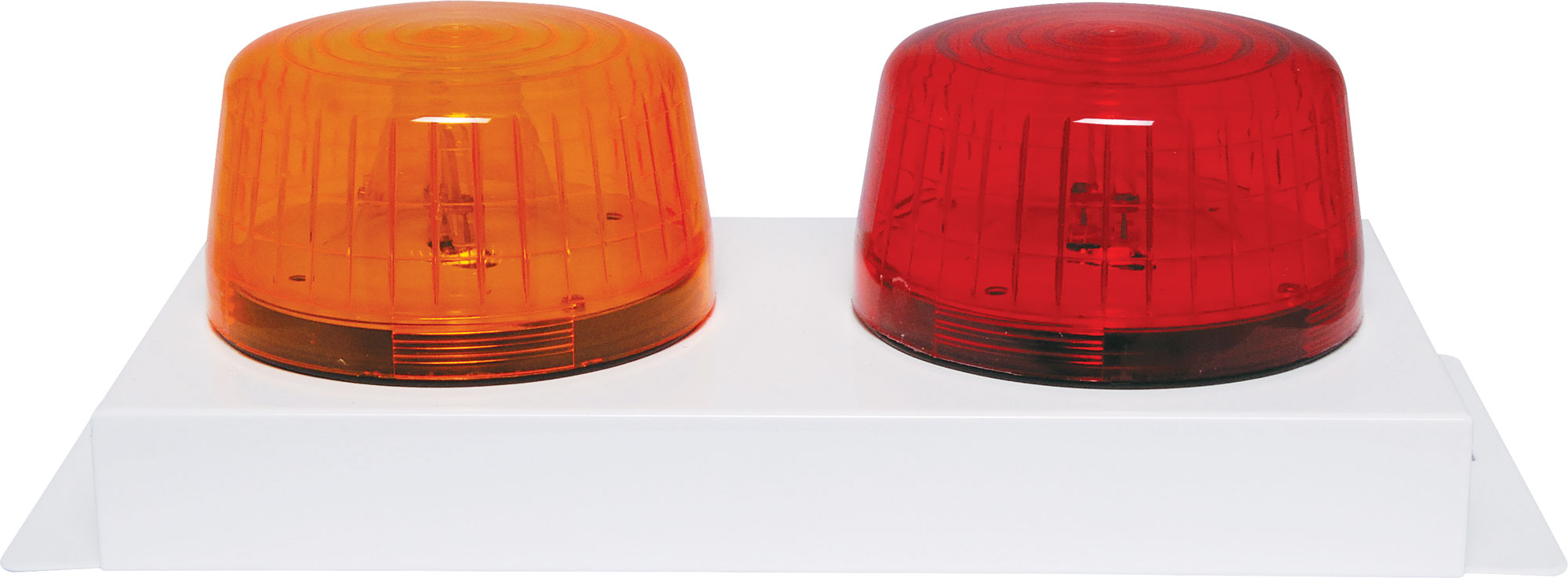

Low Power Fire Evac Strobe

Be the first to review this product
Low current draw dual red and amber coloured strobe lights for emergency evacuation systems. Housed in a sturdy, white powder-coated steel case, this unit is designed for professional installers of fire and evacuation systems. Features simple bolt on inst
SKU: S5423
$117.27
Per ea
Quantity Price
ea $117.27
4+ $108.18

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Low current draw dual red and amber coloured strobe lights for emergency evacuation systems. Housed in a sturdy, white powder-coated steel case, this unit is designed for professional installers of fire and evacuation systems. Features simple bolt on installation and conduit knockouts for cable entry. A terminal block allows quick power connection. Can be configured for either two, three or four wire operation.


Specifications:

Power supply: 24V DC

  • Current draw: 100-150mA @ 12vdc
  • 200-300mA @ 24vdc
  • Minimum flash rate: 1.5Hz @ 12vdc
  • 2.3Hz @ 24vdc
  • Conduit Knockout Diameter: 19mm
  • Dimensions (Overall): 85H x 285L x 122W mm
  • Individual Strobe Dimensions: 100Ø x 80H mm

12 Months

We Offer 12 Months for this product
