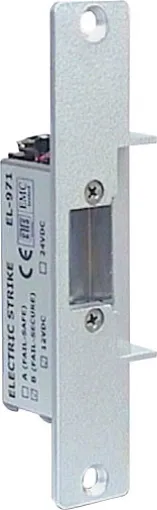

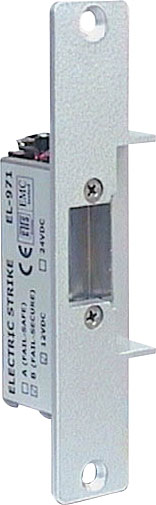

12VAC/DC Door Strike

SKU: S5385
If you need to control entry points to a building automatically, it is highly likely that you will need a quality door strike. Once power is applied to the strike , the latch releases and the door can be pushed open. This strike will operate from nominal
$55.41

All Prices Shown are (ex GST)

Bulk Pricing
ea $55.41
4+ $49.95
10+ $44.50
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

If you need to control entry points to a building automatically, it is highly likely that you will need a quality door strike. Once power is applied to the strike , the latch releases and the door can be pushed open. This strike will operate from nominal 12V AC or DC, making it ideal for just about any application. It has a “fail secure” configuration, which means if the power goes off, the strike will remain locked. Ideal for security doors, building entrance / exits, secured stock areas, after hours access, garage, etc.

Note: Designed to be powered momentarily ie: long enough to “buzz” somebody into a premises. Power must not be constantly applied to the strike.

Specifications

Faceplate Size: 149 x 28mm.

  • Mounting Depth: 21mm.
  • Required Internal Recess: 31W x 21D x 85Hmm.
  • Operating Current: 450mA
  • Power Consumption: 10W

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
