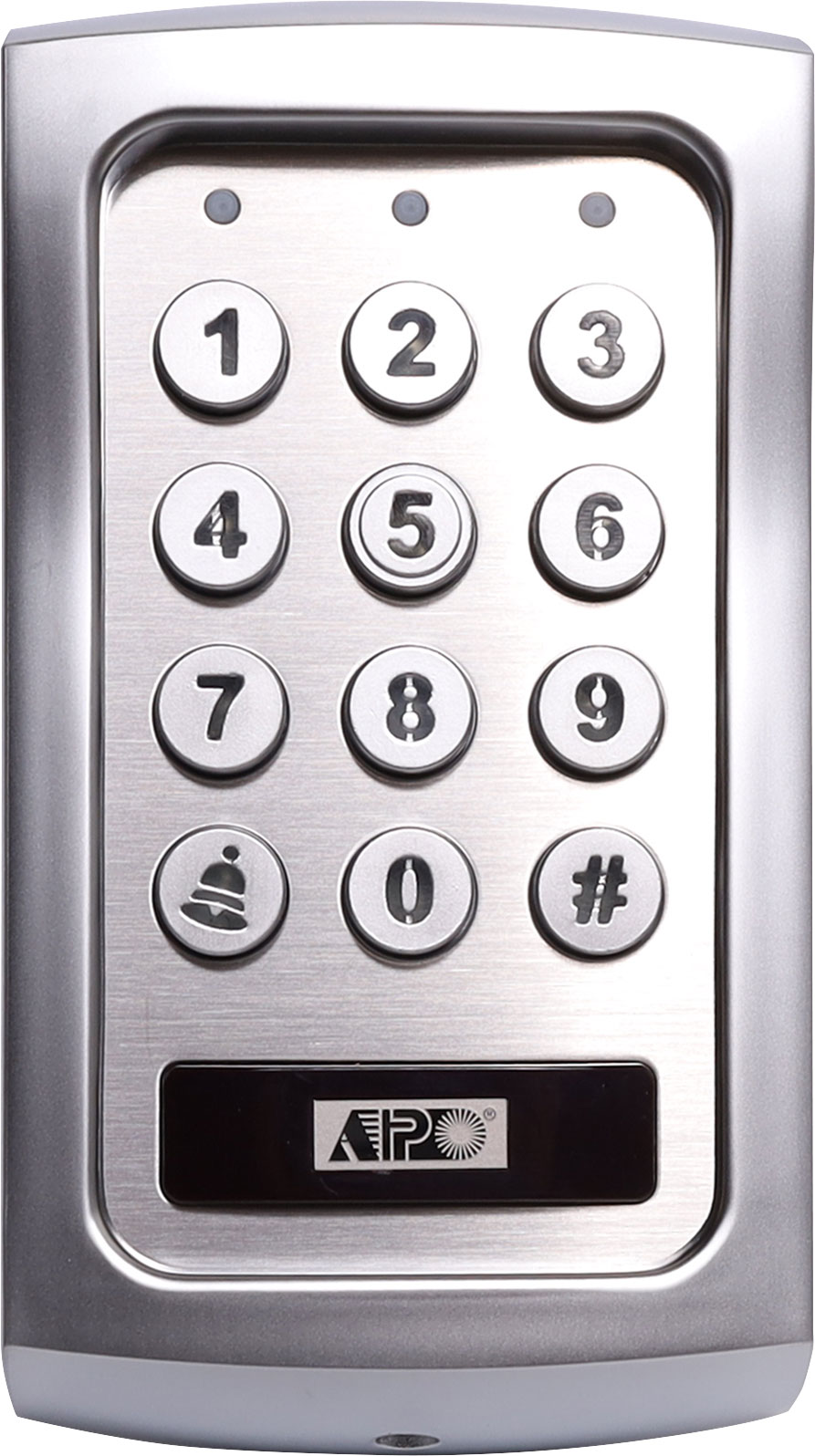

HID (RFID) Vandal Resistant Control Keypad with Card Reader

Be the first to review this product
This weatherproof vandal resistant door keypad controller is designed for controlling a door strike in home or business security installations. It combines a digital keypad and proximity EM card reader in one unit.
SKU: S5377A
$190.00
Per ea
QuantityPrice
ea$190.00
2+$171.82
4+$153.64

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This weatherproof vandal resistant door keypad controller is designed for controlling a door strike in home or business security installations. It combines a digital keypad and proximity EM card reader in one unit. This unit also features a door bell ideal for guests and service members. There is two outputs for this unit. Output Relay 1: 2A Rating N.C & N.O. Contacts for Door Lock Actuation Control. Output Relay 2: Controlled by the “BELL” button on the keypad. It operates as long as the bell button is pressed. Use N.O. contact to trigger an optional door chime.

Package Contains:
1 x Keypad
2 x EM Cards
1 x Mounting Screw Pack
1 x Centre Pin Torx Screw Wrench
1 x User Manual

Features

  • Weather resistant design (IP65)
  • Vandal resistant
  • Compatible with 125KHz 64-bit EM cards & key fobs
  • Built-in logics for stand alone, split-decoded and multi-station operations
  • Controls “Going In” with user codes/cards
  • “Going Out” with feature programmable egress button
  • Door Bell for guests/service persons /tradesmen
  • Stainless steel faceplate combines with die-casting metal back-lit key buttons
  • Die-Cast Zinc Alloy Protection Bracket for Surface Mount

Specifications

Operating Voltage: 12-24V DC, Auto Adjusting

  • Operating Current:
  • 62mA (quiescent) to 130mA@12V DC
  • 30mA (quiescent) to 61mA@24V DC
  • Storage and Operation Temperature: -20°C to + 70°C
  • Storage and Operation Humidity: 5-95% relative humidity non-condensing
  • Working Environment & Ingress Protection: all weather, IP 65
  • Number of Users: 1,000 (Codes and/or Cards) + 50 Duress Codes
  • Proximity Card: Standard EM Card or Keyfob, 125KHz, Manchester 64bit
  • Number of Visitor Codes: 50, programmable for one time or with time limit
  • Timings for Code Entry and Card Reading:
  • 10 seconds waiting for next digit entry
  • 30 seconds waiting for code entry after card reading
  • Timers: 1-99, 999 seconds (over 24 hours possible) Independent Programmable Timers for O/P 1&2
  • Egress Button: Programmable for Instant, Delay with Warning
  • Momentary or Holding contact for Exit Delay
  • Input Sensing Terminals: a) Door Position, b) Egress, c) O/P 1 inhibit
  • Output Control Terminals: Transistor Open Collector 24V DC/100mA sink max for the following outputs a) Duress, b) Alarm Output, c) Inter-lock
  • Output Contact Ratings:
  • Output Relay 1 - N.C. & N.O. dry contacts, 2A/24V DC Max
  • Output Relay 2 (Bell Only) - N.C. & N.O. dry contacts, 2A/24V DC Max
  • Tamper Switch - N.C. dry contact, 50mA/24V DC Max
  • Dimensions: 144 x 78 x 29/32mm
  • Weight: 380g net
  • Housing: Die-cast Zinc Alloy Protection Bracket
  • Faceplate Material: Stainless Steel
