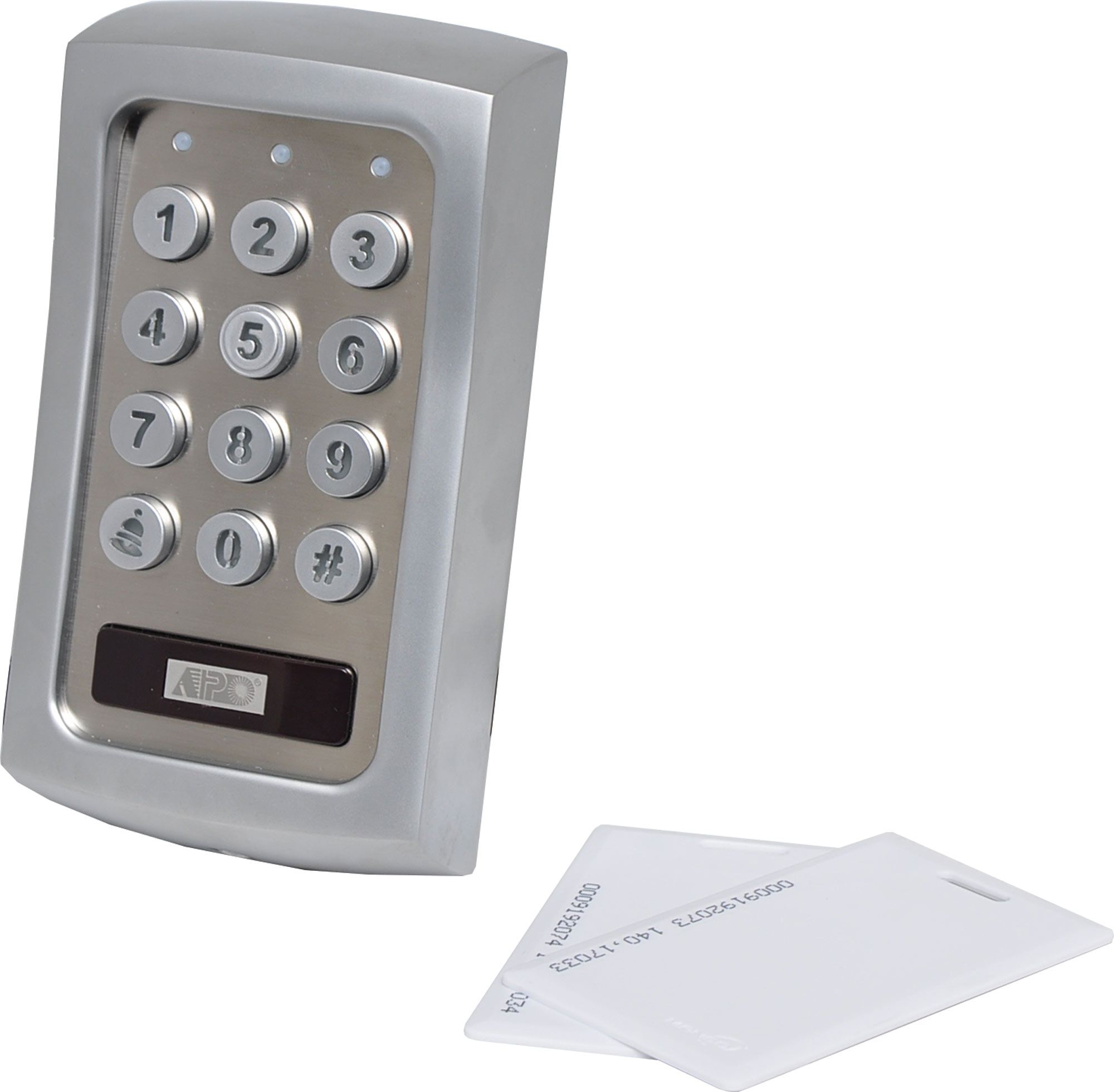

HID (RFID) Vandal Resistant Control Keypad with Card Reader

Be the first to review this product
This weatherproof vandal resistant door keypad controller is designed for controlling a door strike in home or business security installations. It combines a digital keypad and proximity EM card reader in one unit.
SKU: S5377
$190.00 $135.45
Per ea
Save $54.55
QuantityPrice
ea $190.00 $135.45
2+ $171.82 $135.45
4+ $153.64 $135.45

All Prices Shown are (ex GST)


i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

This door keypad controller is designed for controlling a door strike in home or business security installations. It combines a digital keypad and proximity EM card reader in one unit. This unit also features a door bell ideal for guests and service members. There is two outputs for this unit. Output Relay 1: 2A Rating N.C & N.O. Contacts for Door Lock Actuation Control. Output Relay 2: 2A Rating N.C & N.O. Contacts for Door Lock Actuation Control. We recommend that this product be used primarily for internal access control or for business hours access control for staff etc. It should be used in conjunction with a manual deadlock on the door to prevent the unit from being tampered and to maintain security outside of normal operating hours.

Package Contains:
1 x Keypad
2 x EM Cards
1 x Mounting Screws
1 x Centre Pin Torx Screw Wrench
1 x User Manual

Features

  • Weather resistant design (IP54)
  • Vandal resistant
  • Compatible with 125KHz 64-bit EM cards & key fobs
  • Built-in logics for stand alone, split-decoded and multi-station operations
  • Controls “Going In” with user codes/cards
  • “Going Out” with feature programmable egress button
  • Door Bell for guests/service persons /tradesmen
  • Stainless steel faceplate

Specifications

Operating Voltage: 12-24V DC, Auto Adjusting

  • Operating Current:
  • 62mA (quiescent) to 130mA@12V DC
  • 30mA (quiescent) to 61mA@24V DC
  • Storage and Operation Temperature: -20°C to + 70°C
  • Storage and Operation Humidity: 5-95% relative humidity non-condensing
  • Working Environment & Ingress Protection: all weather, IP 65
  • Number of Users: 1,000 (Codes and/or Cards) + 50 Duress Codes
  • Proximity Card: Standard EM Card or Keyfob, 125KHz, Manchester 64bit
  • Number of Visitor Codes: 50, programmable for one time or with time limit
  • Timings for Code Entry and Card Reading:
  • 10 seconds waiting for next digit entry
  • 30 seconds waiting for code entry after card reading
  • Timers: 1-99, 999 seconds (over 24 hours possible) Independent Programmable Timers for O/P 1&2
  • Egress Button: Programmable for Instant, Delay with Warning
  • Momentary or Holding contact for Exit Delay
  • Input Sensing Terminals: a) Door Position, b) Egress, c) O/P 1 inhibit
  • OutputControl Terminals: Transistor Open Collector 24V DC/100mA sink max for the following outputs a) Duress, b) Alarm Output, c) Inter-lock
  • Output Contact Ratings:
  • Output Relay 1 - N.C. & N.O. dry contacts, 2A/24V DC Max
  • Output Relay 2 - N.C. & N.O. dry contacts, 2A/24V DC Max
  • Tamper Switch - N.C. dry contact, 50mA/24V DC Max
  • Dimensions: 144 x 78 x 29/32mm
  • Weight: 380g net
  • Housing: Die-cast Zinc Alloy Protection Bracket
  • Faceplate Material: Stainless Steel

2 Years

We Offer 2 Years for this product
