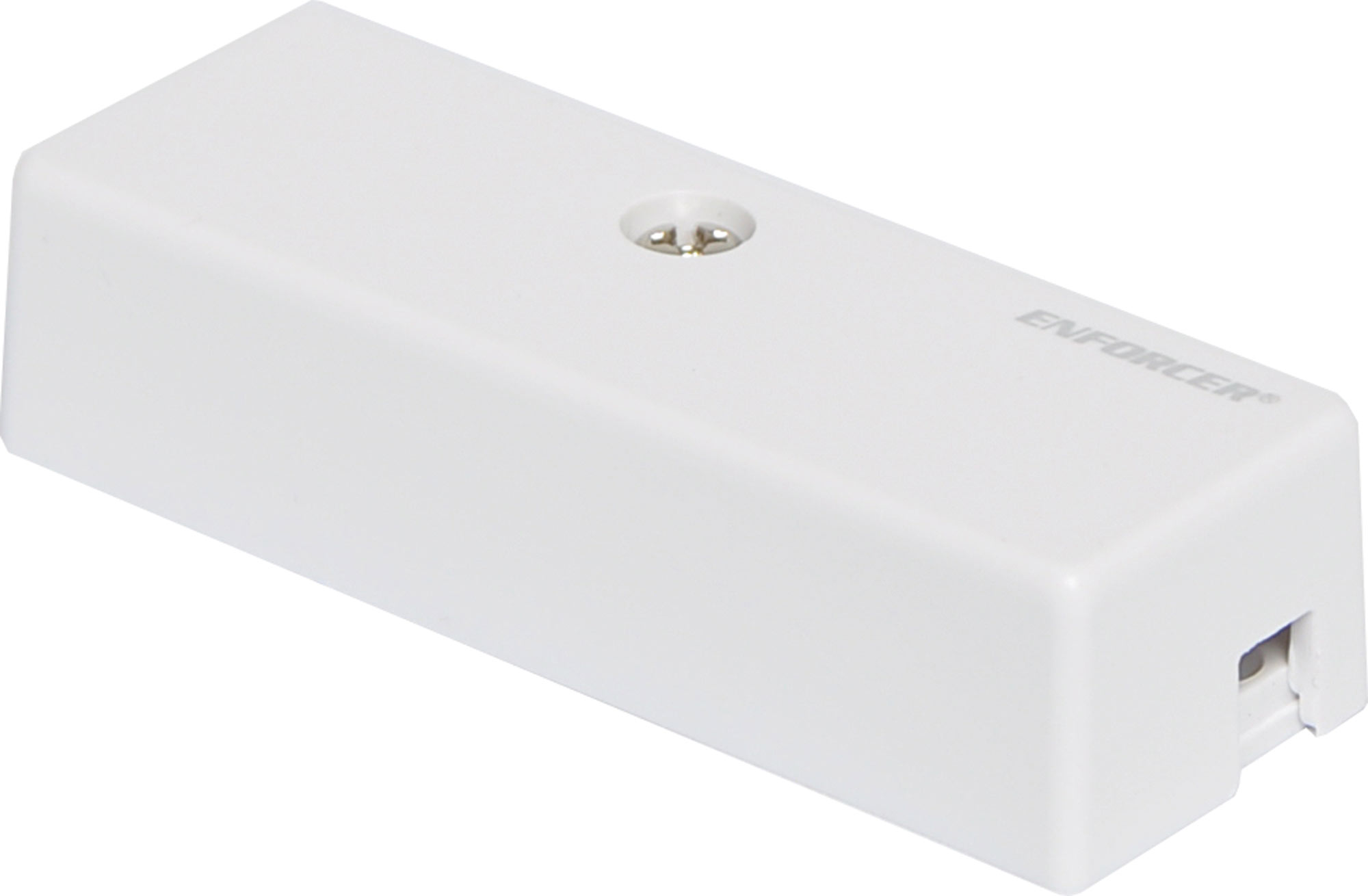

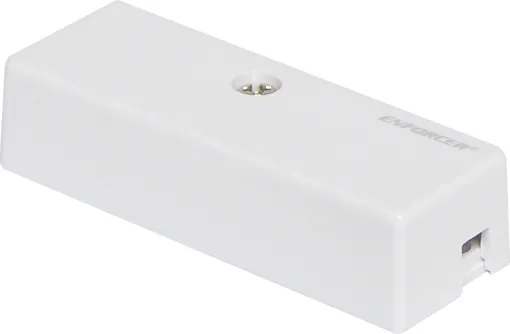

Mini Shock Vibration Detector

Manufacturer: Enforcer
SKU: S5368
This vibration detector is is designed for protection against forced entry by a hammer, saw, crowbar, etc. through walls, ceilings, windows, safes, cabinets, etc.
$10.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $10.45
4+ $9.55
10+ $8.32
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

This vibration detector is is designed for protection against forced entry by a hammer, saw, crowbar, etc. through walls, ceilings, windows, safes, cabinets, etc. For use in closed-circuit alarm systems, the detector will initiate an alarm when a vibration of considerable force strikes the protected surface. A built-in tamper switch is independently wired from the vibration detector for enhanced security. The detector has pure-silver contact points, adjustable sensitivity, and tamper-proof cover. Contact rated 1.0A@50VDC. White.

Features

  • For use in closed-circuit alarm systems
  • Pure silver contacts with gold plating to ensure reliable and long-term operation
  • Ideal for protecting glass windows, showcases, solid walls, ceilings, safes, cabinets, motorcycles, skylights, etc.
  • Small size for discreet installation
  • Built-in tamper switch provides enhanced security
  • Adjustable contact pressure for different surfaces
  • Detects a vibration/shock on protected surface and activates an alarm

Specifications

Circuit Type: N.C., momentarily open when activated

  • Contact Pressure: Adjustable from 1 to 50 grams but recommended setting between 5 and 25 grams only. Supplied with pressure of approx. 6 grams
  • Current Rating: 1A@50VDC
  • Break Time: Approx. 45 ms max. (at 6-gram pressure)
  • Estimated Life: Over 100,000 cycles
  • Contact: Silver with gold plating
  • Case: ABS resin
  • Dimensions: 60 x 21 x 15mm
  • Weight: 20g

Warranty & Returns

12 Months

We Offer 12 Months for this product

Specifications

Products specifications
Warranty Group
Warranty 12 Months
