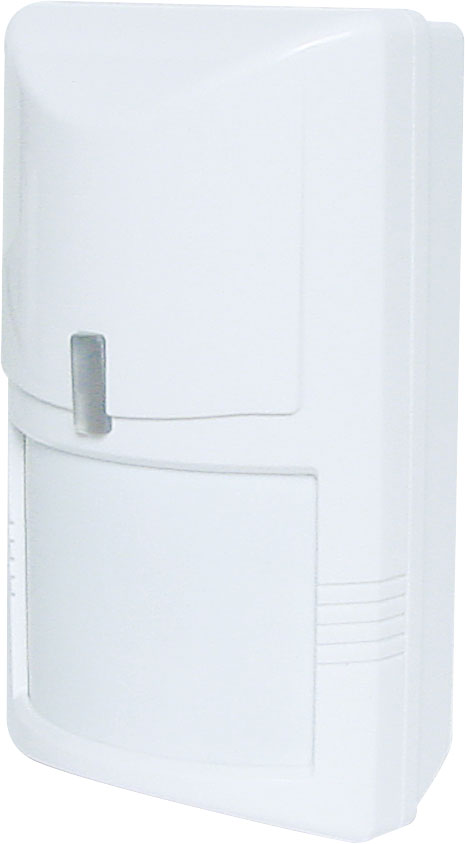

Passive Infra Red (PIR) Movement Detector

SKU: S5314A
Easy to install PIR with dual look down detection. Features excellent temperature compensation and selectable pulse count. Its stylish countoured shape virtually disappears once installed into the corner of any room. Vertical range is adjustable and a
$45.41

All Prices Shown are (ex GST)
Bulk Pricing
ea $45.41
4+ $40.86
10+ $36.32
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview

Easy to install PIR with dual look down detection. Features excellent temperature compensation and selectable pulse count. Its stylish contoured shape virtually disappears once installed into the corner of any room.

Vertical range is adjustable and a high quality noise reduction circuit ensures reliable detection. Superior RFI/EMI immunity.

Specifications

Power Supply: 9-16V

  • Current Drain: NO 8mA @ 12V DC
  • Alarm Period: 1.5-2.5 sec
  • Alarm Output: NC/NO, 30VDC, 0.2A
  • Pulse4 Count: 2/3 selectable
  • RFI Immunity: 25V/m average
  • Tamper: NC, open trigger
  • Temperature Range: -20°C to 60°C
  • Dimensions: 100 x 60 x 42mm

Warranty & Returns

5 Years

We Offer 5 Years for this product

Specifications

Products specifications
Warranty Group
Warranty 5 Years
